bucket conveyor type grain bucket elevator for sale
Usage of Grain Chain Bucket Elevator
TDTG series grain chain bucket elevator, used for vertically transporting powdery, granular, small piece material, widely applied to oil, feed, flour industrial.
Characteristics of Grain Chain Bucket Elevator
Beautiful appearance, small volume, small power consumption, big delivery value;
Transmission mechanism adopt cycloidal pin wheel reducer direct connection drive, smooth transmission, reliable, easy for installation and repair, head wheel adopt encapsulation technology increase coefficient
of riction;
Having reasonable running structure, the grain chain bucket elevator coefficient of friction is large.
The grain chain bucket elevator adopting high-strength plastic bucket (HDPE buckets), which has long service time and large capacity.
Grain chain bucket elevator with high strength polyester dustpan belt, strength of tensile is high, lower tensile rate, service time is long.
There is an anti pin organ in the machine. When the power is cut off and the grain chain bucket elevator suddenly stopped, materials won't fall back down from it, so it can reduce raking out. When we go to check, the strap won't reverse so it can insure the checker safe.
The grain chain bucket elevator outlook
Click here to know more about bucket elevator
Grain Bucket Elevator Structure
Models of Grain Chain Bucket Elevator
TDTG grain chainbucket elevator models ( based on the wheat/corn,0.72t/m3) | ||||
Line speed (m/s) | Model | Head wheel diameter (mm) | Capacity (t/h) | Bucket size |
2.7
| TDTG40/18
| 400 | 20 28 | DQ1814 DQ1914 |
TDTG40/23 | 400 | 35 | DQ2316 DQ2314 | |
TDTG60/33 | 600 | 105 160 | DQ3321 DQ3325 | |
3.4
| TDTG40/18 TDTG40/23 | 400 400 | 35 50 | DQ1914 DQ2316 DQ2314 |
TDTG50/28 | 500 | 60 80 | DQ2816 DQ2817 | |
TDTG60/33 | 600 | 130 200 | DQ3321 DQ3325 | |

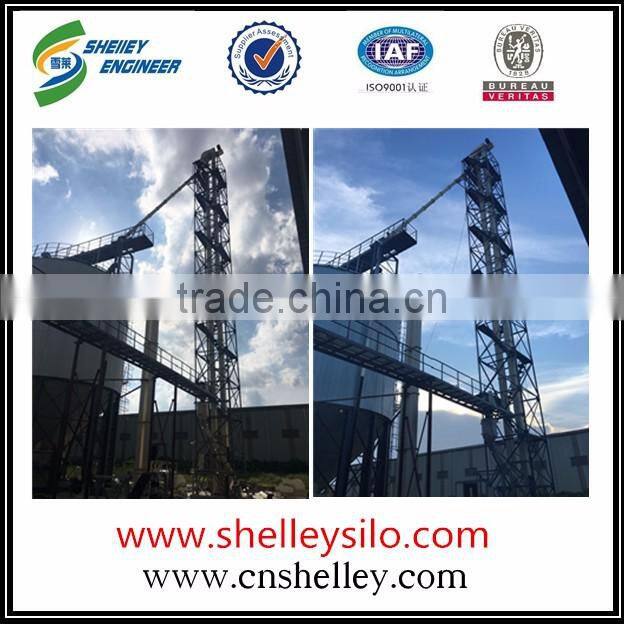

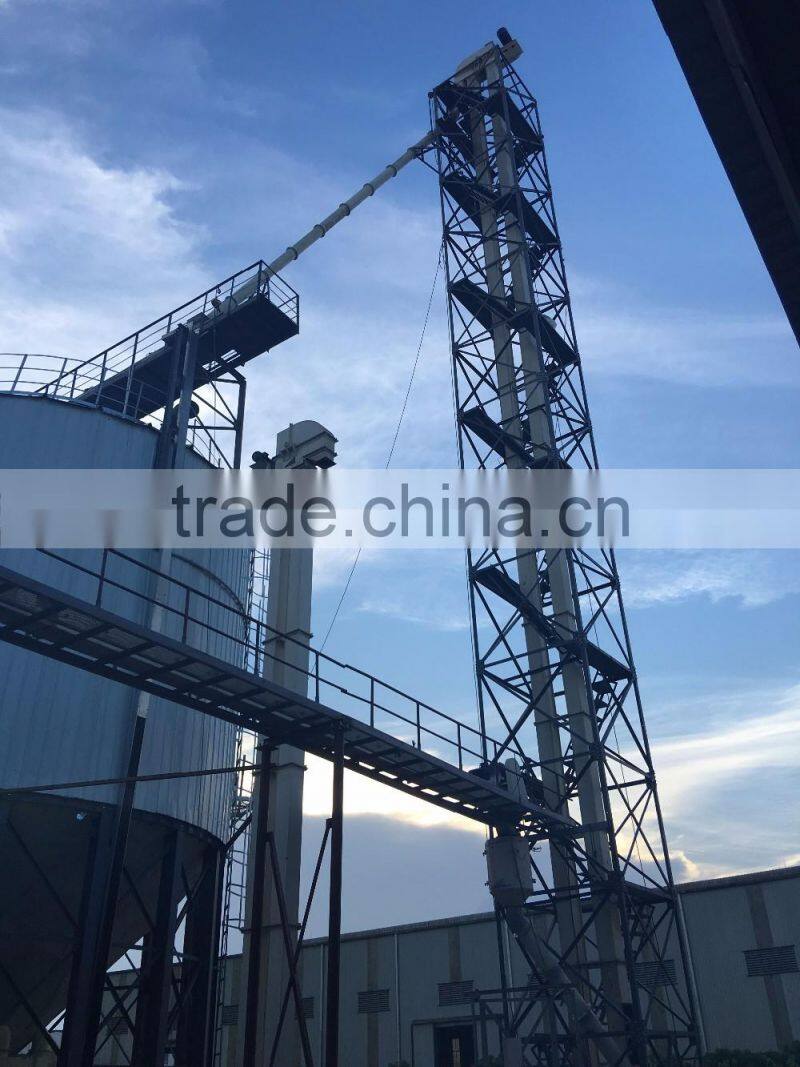

TSE grain silo factor has the rich experiences with installation of the grain chain bucket conveyor for many years, there are some photos taken on site to show the installation of grain chain bucket elevator components.
Customers give TSE good reputation for the services and products of grain chain bucket elevator in past few years.
If you need to get more information of the grain chain bucket elevator , please click here.
