2013 Latest JZ Series Electric Winch Supplier

Beijing Double Dragon International Industrial & Mining Machinery Co., Ltd.

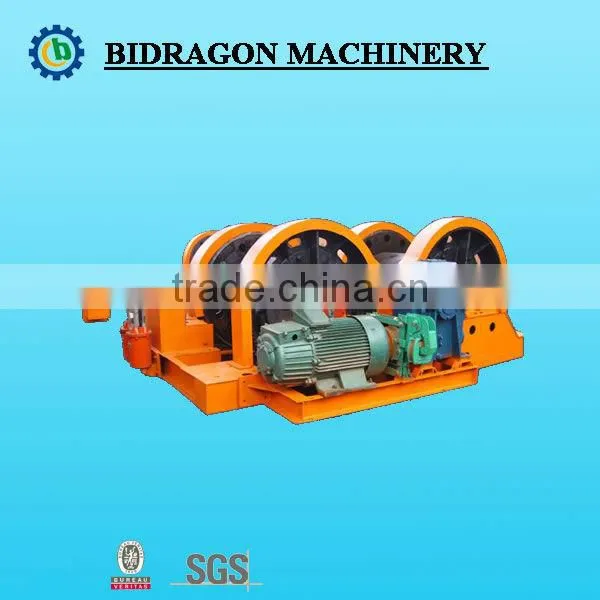

2013 Latest JZ Series Electric Winch Supplier thumbnail-1
2013 Latest JZ Series Electric Winch Supplier photo-1
US$ 5,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Bidragon
Model Number:
JZ
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name Bidragon
Model Number JZ
Condition New
After-sales Service Provided Engineers available to service machinery overseas

Specifications

JZ series winch suppliers:
1.Modern AC or DC drive systems.
2.Reliable and efficient designs.
3.Customer training

JZ series shaft mining equipment main:



1. Hoist reliability.



2. Availability and performance.



3. Reliable and efficient designs.



4. High quality steel made.



5. Every design meets the customer’s requirements.



6. Shaft equipment such as skips, ropes with attachments and measuring pockets.



7. Customer training.





Applications:





JZ Series Shaft Sinking Winch is applied to overhang like scaffold ,water pump ,water pipe, grouting pipe, wind-cone, etc. during sinking operation on vertical shaft of coal ,metal and nonmetallic mine.



Technical Parameters:





ModelJZ-5/400JZA-5/600JZ-10/800/1000JZ-16/800JZ-16/1000/1300JZ-25/1300/1500
Maximum Static Tension of Rope5000KG5000KG10000KG16000KG16000KG25000KG
Rope Capacity400M600M800/1000M800M800/1300M1300/1500M
Mean Speed of RopeHigh Speed6M/MIN6M/MIN6M/MIN6M/MIN6M/MIN6M/MIN
Low Speed3M/MIN3M/MIN3M/MIN3M/MIN3M/MIN3M/MIN
Twisting Layers6 Layers10 Layers7 Layers6 Layers7 Layers9 Layers
Rope Diameter23MM23MM31MM40MM40MM52MM
Winding DrumDiameter400MM400MM800MM1000MM1000MM1050MM
Width900MM1000MM1050MM1400MM1400MM1560MM
Center Height650MM580MM800MM1050MM1050MM1250MM
Speed RatioReducerHigh Speed505063.5777777
Low Speed100100127154154154
Overall gear ratioHigh Speed252.5252.5388506.6506.6506.6
Low Speed5055057761013.21013.21013.2
MotorModelY160L-6Y160L-6Y200L2-6YR250M1-8YR250M1-8YZR280M-8
Power11KW11KW22KW30KW30KW55KW
Rotate Speed970 Rp/M950 Rp/M970 Rp/M720 Rp/M720 Rp/M728 Rp/M
Voltage380V380V380V380V380V380V

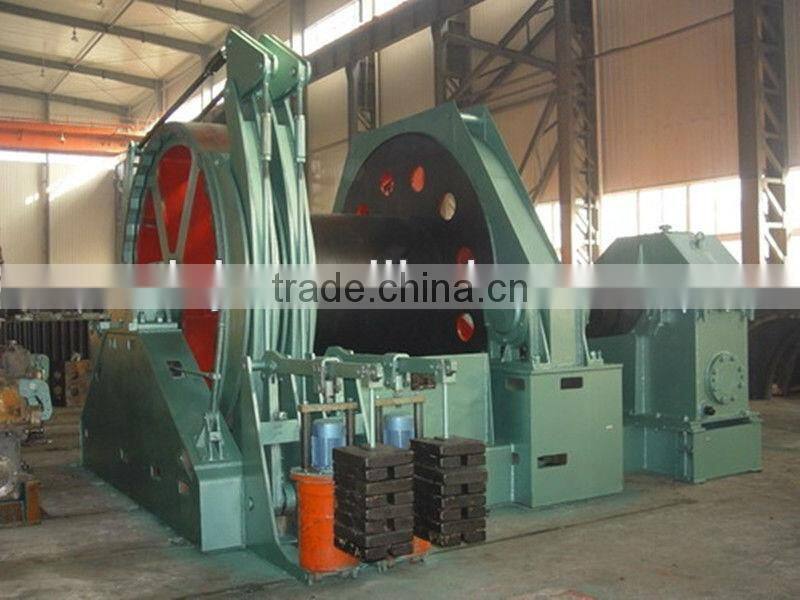

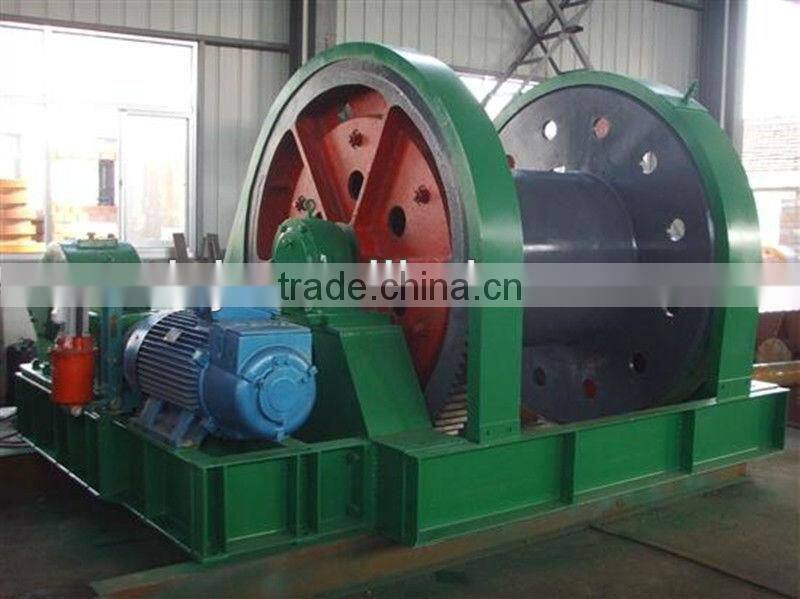

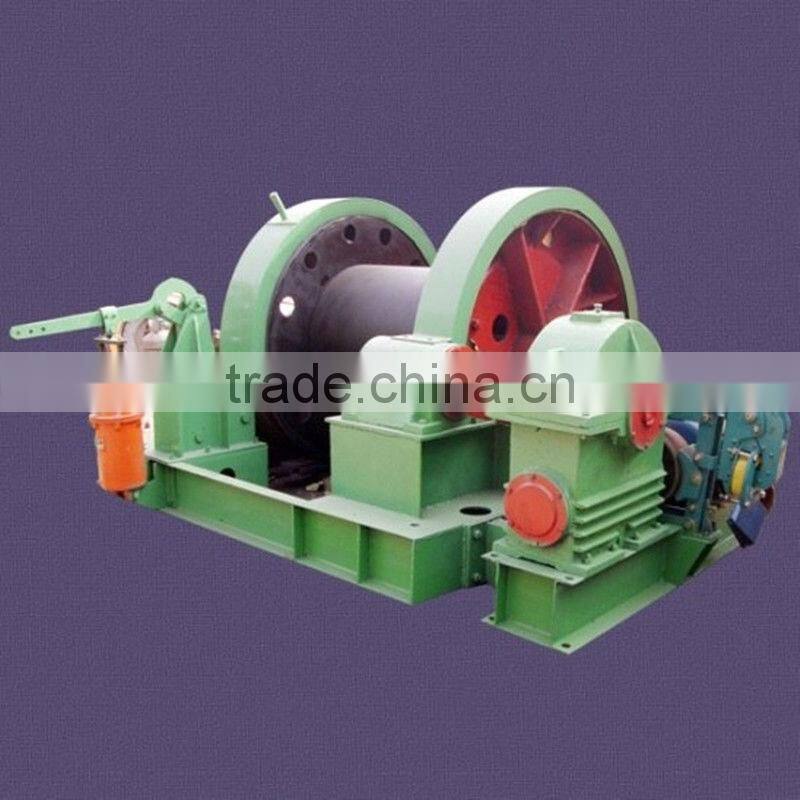

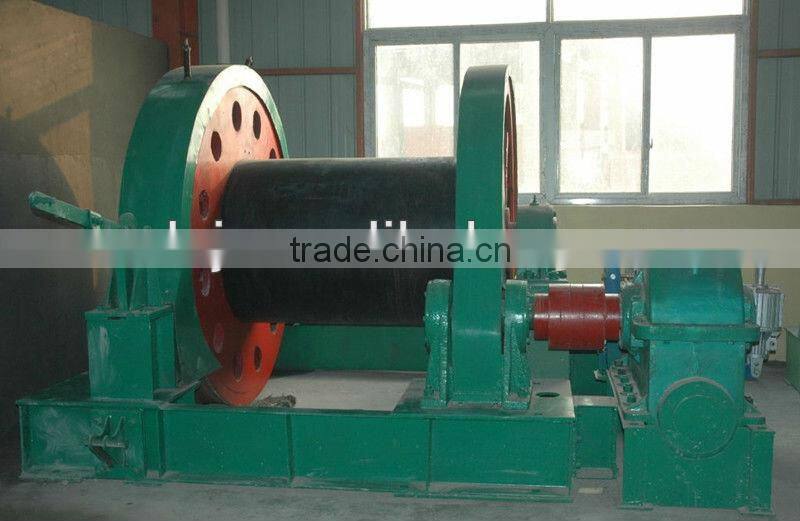

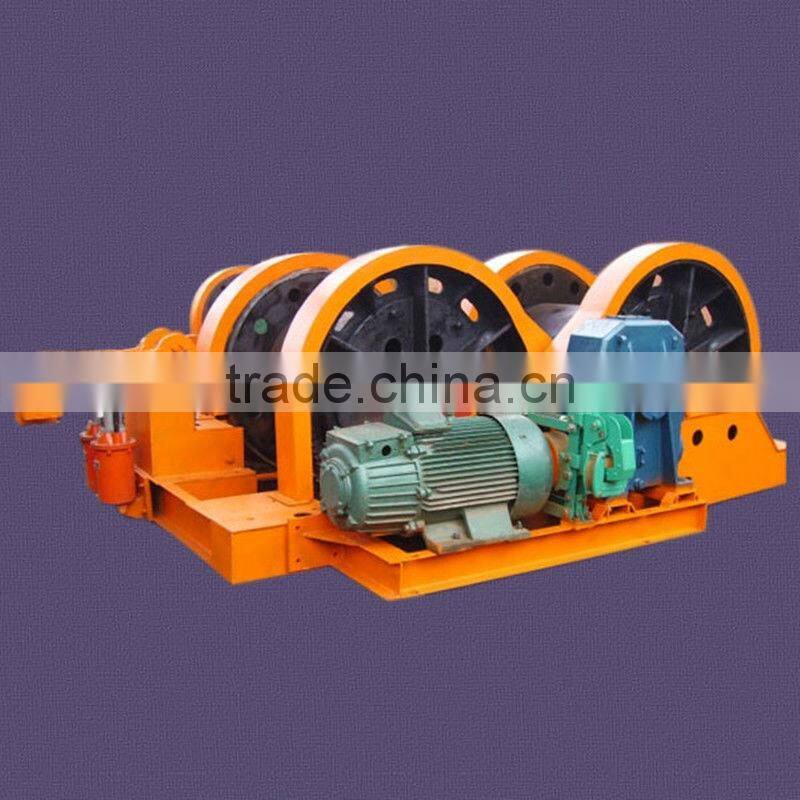

Pictures:

2013 latest JZ series electric winch supplier2013 latest JZ series electric winch supplier2013 latest JZ series electric winch supplier2013 latest JZ series electric winch supplier2013 latest JZ series electric winch supplier
