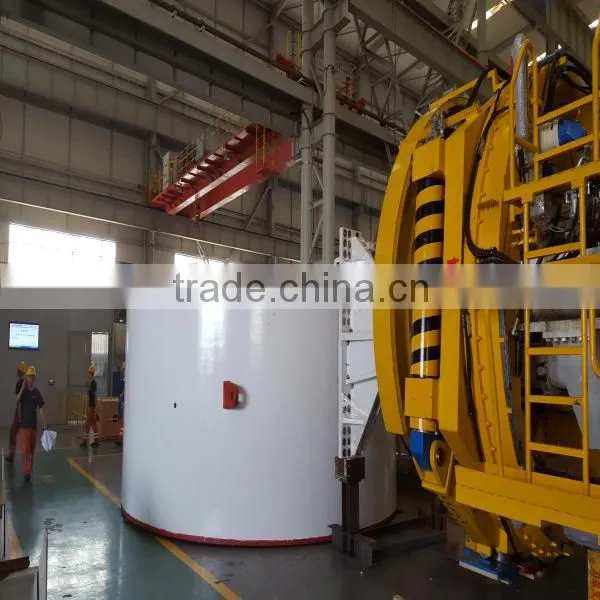

TBM/diameter6mTBM

Name: TBM/diameter6mTBM
Brand: focus
Availability: InStock

FOB Price

USD $100,000 - $200,000 / Set

1 Set(Min.Order)

Supply Ability 2 Set / Sets per Month
Port any China port
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Place of Origin:	Henan, China	Brand Name:	focus
Model Number:	6000mm tunnel boring machine sale	Weight:	19ton	Certification:	ISO9001
Warranty:	12 months	After-sales Service Provided:	Overseas service center available

Product Description

FOCUS adopts international QA standards,and utilizes high precision inspection and measuing devices, e. g. hand-held laser distance meter ,roughness meter ,coaxial measuring scanner etc. ,as well as nondesdructive ultrasonic ,magnetic particle, liquid penetrant and radiation testing equipment.

FOCUS is a ISO9000 certified company. All QA staffs have received Occupational Qualification Certificates issued by the state industry authoritie

Machine Type	Diameter Range	Cutter Head Drive	Torque	Thrust	Stroke
	M	kw	KNM	KN	M
TB 220/280	2.20-2.80	440	250	3500	0.80
TB 260/320	2.60-3.20	540	320	4300	1.00
TB 280/350	2.80-3.50	800	550	6200	1.20
TB 320/400	3.20-4.00	1200	870	8300	1.60
TB 350/450	3.50-4.50	1320	1200	8800	1.60
TB 420/520	4.20-5.20	1500	1700	10500	1.60
TB 440/580	4.40-5.80	1800	2100	12000	1.60
TB 520/680	5.20-6.80	2100	2900	15000	1.60
TB 640/820	6.40-8.20	2600	4200	18000	1.60
TB 750/920	7.50-9.20	3000	5300	21000	1.80
TB 880/1100	8.80-11.00	3500	7500	25000	2.00
TB 1050/1300	10.50-13.00	4000	10500	30000	2.40
