Bean processing machine / soybean cleaning machine mung bean cleaner
- 100 Set / Sets per Month
- xingang
- T/T Credit Card
You May Like
Product Details
Type | buckwheat seed cleaning machine | Use | cleaning for seed,grain,bean | |
Certification | SGS ISO9001-2008 USV SONCAP | Place of Origin | Hebei, China | |
Brand Name | SYNMEC | Model Number | 5X-5 | |
Condition | New | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1 RANGE OF USE for Bean processing machine / soybean cleaning machine mung bean cleaner
Wheat corn maize per cleaner / bean cleaning machine becomes basic and most favourite cleaning machine in seed and grain industry of global market, with high efficiency, excellent performance, and wide application. red bean seed cleaning machine is suitable for processing all kind of seeds, cereals, grains species and crops, such as wheat, paddy, rice, barely, maize, millet, cumin, sunflower seed, soybean, coffee bean, cocoa bean, oil seeds, etc.

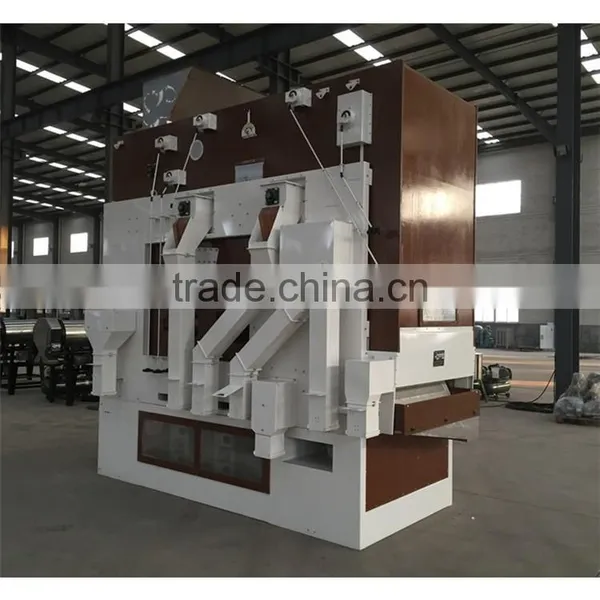

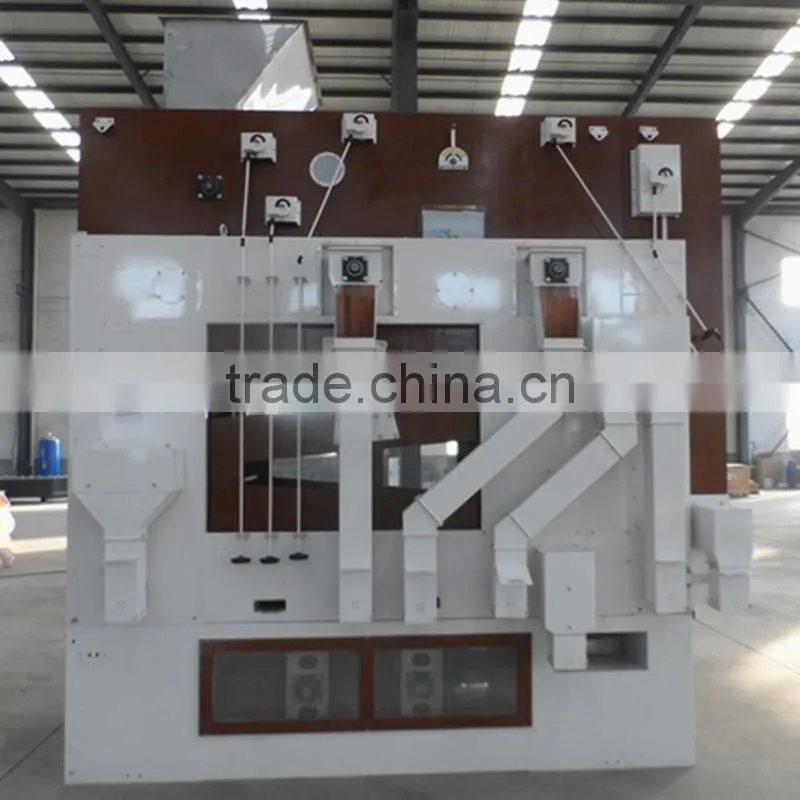

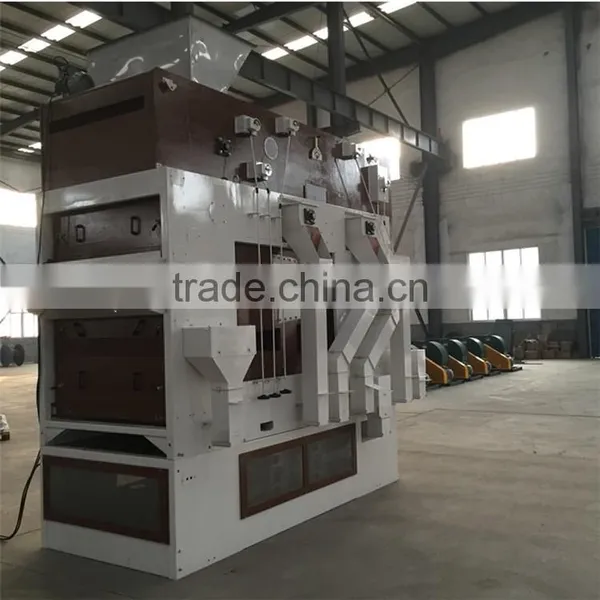

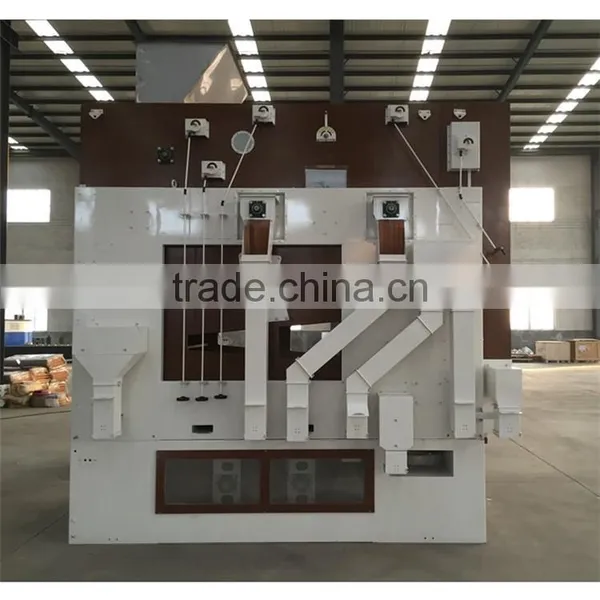

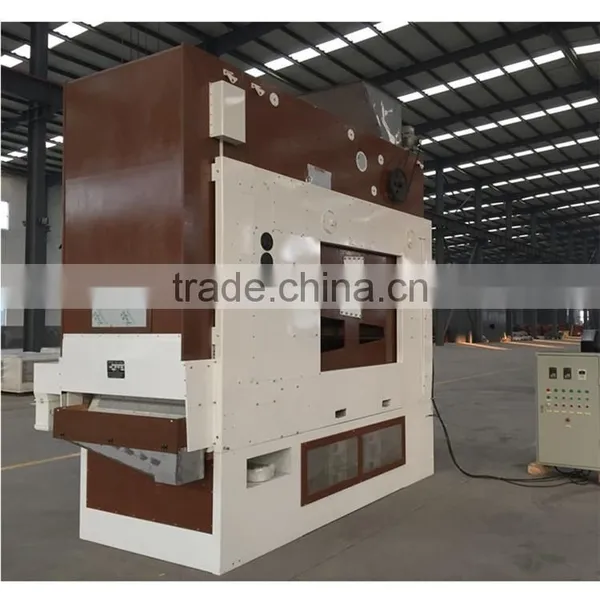

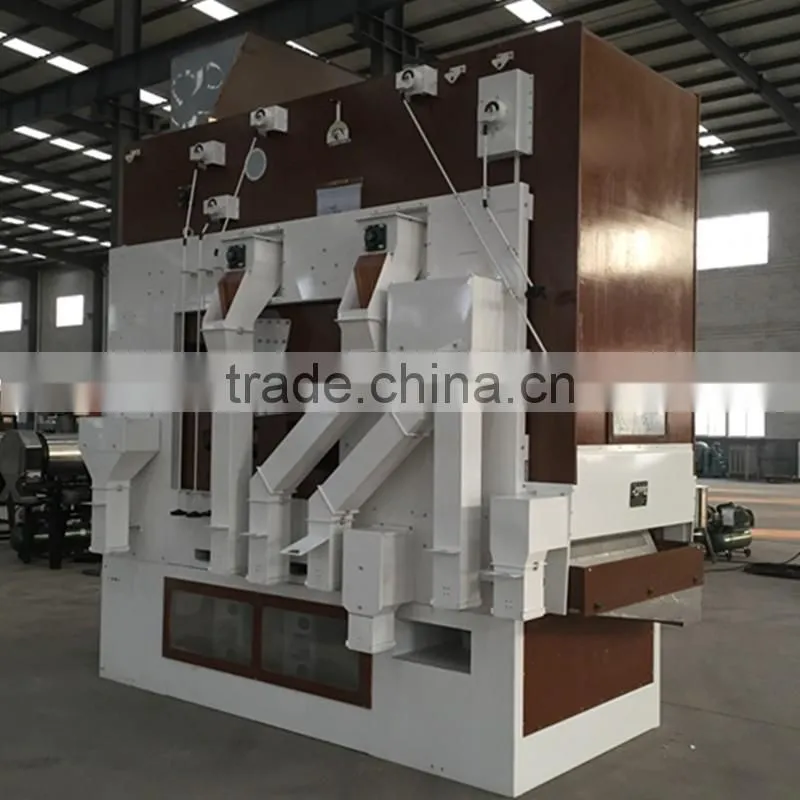

The 5XZF-7.5F Buckwheat seed cleaning machine is used for cleaning and grading seeds, grains, cereals, and othergranule products. It can be equipped to suit a variety of special jobs and purposes.
Dust and light impurity are removed by aspirator fan. Material falls on sieve layers and was separated by sieves
according to width and thickness difference. All the oversize and undersize impurities were discharged from
outlets.
Customized sieve layer amount and various machine combinations allow the seed cleaner & grader to be used
for a wide range of applications and increase grading efficiency
2. Description of Bean processing machine / soybean cleaning machine mung bean cleaner
Model | 5X-5 | 5X-12 |
Dimension(L×W×H) | 3200×1920×3600 mm | 3790×1940×4060 mm |
Overall weight | 3250 kg | 3600 kg |
Rated capacity | 5 t/h | 10 t/h |
Overall air volume | 8200 m3 | 12520 m3 |
External air blower | 4-72N0-6A, 7.5 kW | 4-79N0-6A, 11 kw |
Vibration sieve motor(gear motor) | 2.2 kW | 2.2 kW |
Back lifting system motor | 3.0 kW | 3.0 kW |
Feeding motor | 1.5 kW | 1.5 kw |
Total Power | 6.7 kW | 6.7 kw |
Air Blower Type | centrifuge air blower | |
Top air blower Rotary speed | 4-79NO6A,1400 r/min | |
Back lifting air blower Rotary speed | 100~1000 r/min | |
Screen Type | piercing screen | |
Screen Dimension (L×W) | 800×1250 mm | |
Frequency | 300(80~400) times/min | |
Amplitude | 30 mm | |
Layers and number | 4 layers,7 pieces | 5 layers,15 pieces |
Screen number and type | ||
level 1 | 1 piece round hole | 3 pieces slot hole |
level 2 | 2 pieces slot hole | 3 pieces slot hole |
level 3 | 2 pieces slot hole | 3 pieces slot hole |
level 4 | 2 pieces slot hole | 3 pieces slot hole |
level 5 | null | 3 pieces slot hole |
1. Q Are you factory or trading company?
A We are professional manufacturer for seed processing machinery and also a international trading company
2. Q What is your minimum order quantity?
A 1 Set
3. Q What are your payment terms for new customers?
A T/T, L/C, Money Gram, West Union, Paypal etc
4. Q How long will it take for my products to arrive me?
A Usually by sea, 20 days to 50 days depend on which country you are in.
5. Q How can I visit your factory?
A1. From Guangzhou Baiyun International Airport to Shijiazhuang international airport (2.5hours) , then to our factory by car (1hour)
A2. From Beijing West Railway Station to Shijiazhuang Railway Station by high-speed train(1.5 hours), then to our factory by car (45minutes)
A3. From Hongkong International airport to Shijiazhuang international airport (4.5hours), then to our factory by car (1hour)
