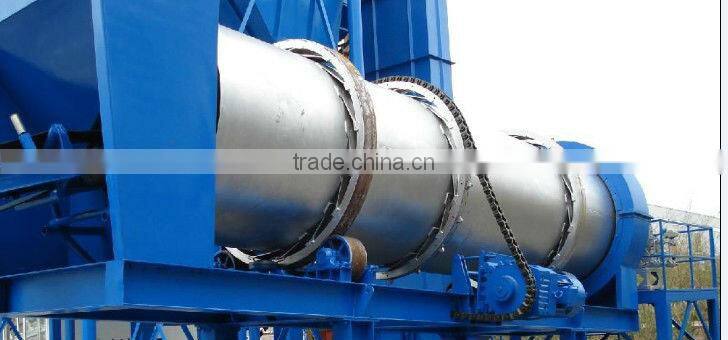

LB1500 small asphalt plant

Specifications

1.Competitive price, best service
2.ISO certificate
3.High quality,low cost
4.Best afte-sale service



1.  With no lining plate of double-shaft horizontal forced type mixer,, studded with small blade line velocity, so that the material can develop rapidly in the "boiling" state, productivity is high , mixing is uniform and production process is continuous and stable. And also no need to replace the lining plate, service life is long , and maintenance cost is low.

2.  Single motor drives speed reducer, the big gear transmit synchronously .work is stable and reliable , shock and vibration resistance. Strong overload resistance and long service life .

3.The unique form of water supply ensures the water supply uniform,stable and effective. the mist can reduce the dust pollution effectively,remove the stabilized oil effectively .

4. Sepcial powder big screw feeder can avoid the damp blockage phenomenon of the impeller feeder, the dust measurement is more reliable uniform and continuous, can reduce the waste powder material and the finished material scrap effectively .can control the stable material cost more precisely.











Model	LB1000	LB1500	LB2000	LB3000	LB4000
Max theory productivity (t/h)	80	120	160	240	320
Aixing tank capacity   (kg)	1000	1500	2000	3000	4000
Aggregate measuring accuracy (%)	±0.5	±0.5	±0.5	±0.5	±0.5
Powder measuring accuracy (%)	±0.5	±0.5	±0.5	±0.5	±0.5
Asphalt measuring accuracy (%)	±0.3	±0.3	±0.3	±0.3	±0.3
Discharge height (m)	3.3	3.3	3.3	3.3	3.3
Dust cleaning efficiency (mg/Nm3)	≤100	≤100	≤100	≤100	≤100
The finished material temperature(°C)	160	160	160	160	160
Total Power (kw)	230	360	490	660	860
Voltage (V)	380	380	380	380	380
Power frequency (Hz)	50	50	50	50	50









1.Spare parts will be delivered as you need.



2.Engineers will go to clients’ site for guiding the installation and test-running;



3.Warranty period: 12 months since the installation and commisioning;



4.Service team will follow every placed order regularly till warranty period finished.

















Welcome you come to our factory!!!
