Specifications
1.Rated productivity:90m3/h2.JS1500 mixer
3.219mm/273mm Screw conveyor
4.Water calculation system
Fixed concrete mixing plant
1.Technical parameter
Main Technical Parameters | ||||||
Model | HLS60 | HLS90 | HLS120 | HLS180 | HLS200 | |
Production(m³/h) | 60 | 90 | 120 | 180 | 200 | |
Mixer | Type | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 |
Power(Kw) | 2*22 | 2*30 | 2*37 | 2*55 | 2*75 | |
Output(m³) | 1 | 1.5 | 2 | 3 | 4 | |
Grain Size(mm) | ≤60 | ≤80 | ≤120 | ≤150 | ≤150 | |
Batcher | Hopper Capacity(m³) | 13 | 15 | 20 | 25 | 30 |
Hopper Quantily(pc) | 4 | 4 | 4 | 4 | 4 | |
Belt Conveyor Capacity(t/h) | 200 | 300 | 400 | 500 | 600 | |
Weighing Scope And Accuracy | Aggregate(Kg) | 3000±1% | 4000±2% | 5000±2% | 6000±2% | 9000±2% |
Cement(Kg) | 600±1% | 900±1% | 1200±1% | 1800±1% | 2400±1% | |
Aduiterant(Kg) | 300±1% | 400±1% | 600±1% | 800±1% | 1000±1% | |
Water(Kg) | 350±1% | 600±1% | 600±1% | 800±1% | 1000±1% | |
Admixture(Kg) | 30±1% | 30±1% | 50±1% | 50±1% | 50±1% | |
Total Power(kw) | ≈78 | ≈102 | ≈145 | ≈196 | ≈245 | |
Discharge Height(m) | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | |
2.Detailed pictures

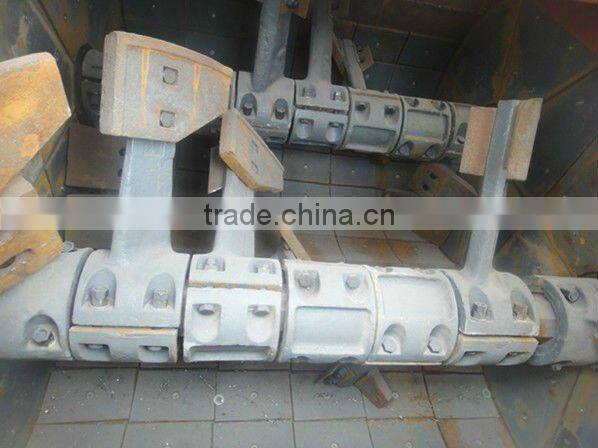

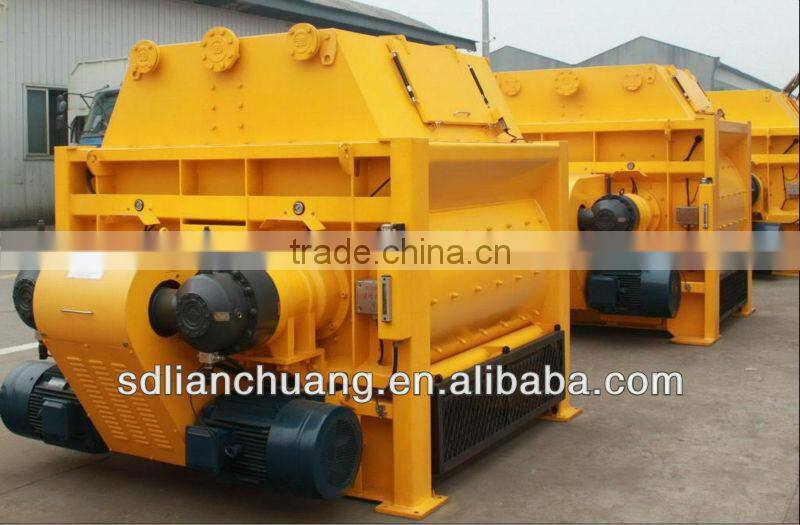

mixer

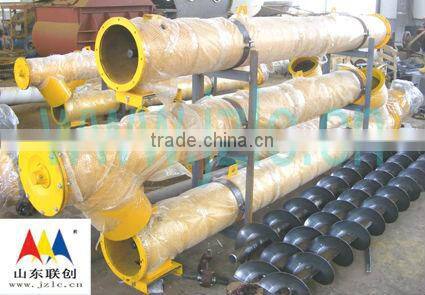

screw conveyor

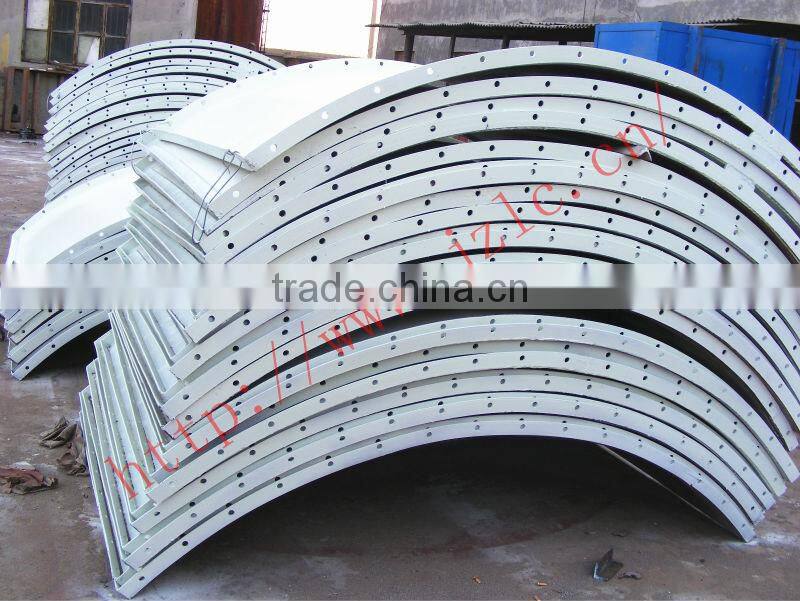

sheet cement silo

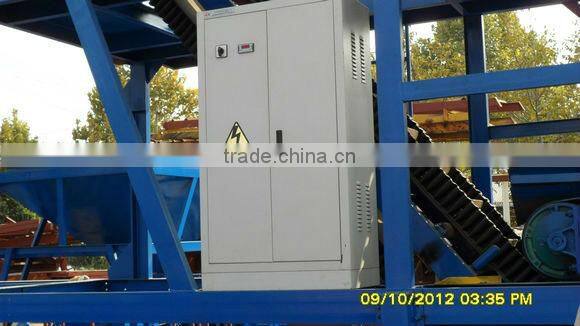

control system

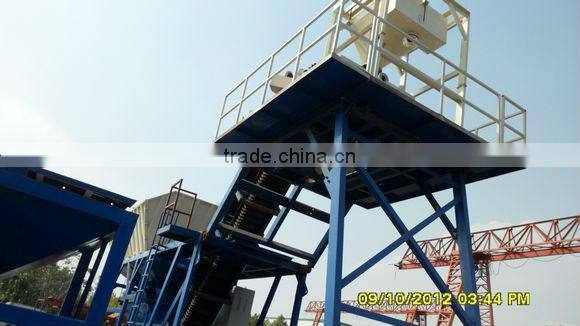

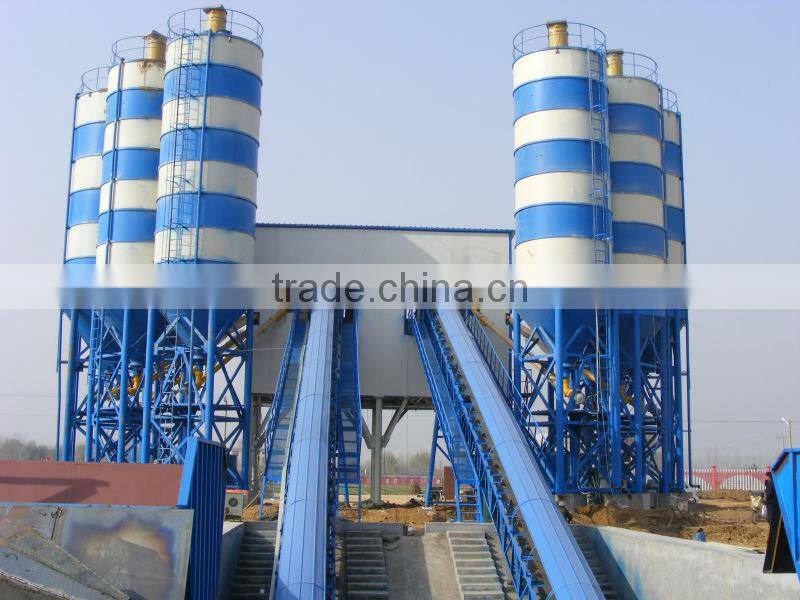

batching plant
discharge parts
3.After-sales services
1.Spare parts will be delivered as you need.
2.Engineers will go to clients’ site for guiding the installation and test-running;
3.Warranty period: 12 months since the installation and commisioning;
4.Service team will follow every placed order regularly till warranty period finished
4.Certification
ISO certificate
Environment certificate
5.Customer visiting
6.Foreign exhibition
Welcome you come to our factory.
