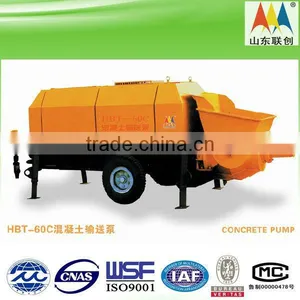

Lianchuang Brand High Quality HBT60.8.85RSG Concrete Pump

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Power Type	Diesel
Place of Origin	Shandong, China	Brand Name	Lianchuang
Model Number	HBT60.8.85RSG	Power(W)	85kw
Dimension(LWH)	450021602700	Weight	5500kg
Certification	ISO9001:2008 and ISO14001:2004	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

HBT60.8.5RSG Concrete Pump
Automatically control
Hydraulic integration design
High quality with competitive price

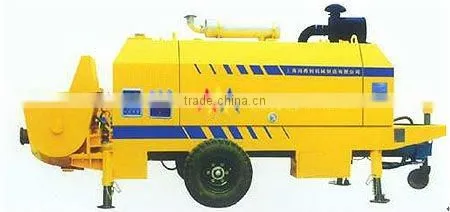

HBT60.8.85RSG Concrete Pump

Main motor adopts German Deutz and Volvo diesel engine; central hydraulic pump and valve adopts Germany Rexroth or Hawe products; pipe joint and hydraulic tubing adopt products imported from Germany and Italy; piston head adopts original products imported from Germany and implements global purchasing. Electric control of operation and control center adopts Siemens technology, improving integrating stability and reliability of pump; self-tracking of pumping speed, as the main body starts, just pressing send button, the rotate speed will be automatically tracked according to the instruction. If the work need to be increased as the normal work is over 1,000r/min, just pressing the button, the main body will change upon the instruction. The pump has three operation structures, which can be operated in the machine or remote control. If there is accident, the hand standby accelerator device is available.

Hydraulic ram lifting changes the traditional ram lifting operated by jack (it can be selected by clients). In terms of some searing parts, such as wearable plate and spectacle plate, our R&D personnel research with Tsinghua University on friction and wearing. The product service life is about 30,000m3, higher than international famous brand. Through inspection by Shandong Institute of Supervision & Inspection on Product Quality and filed identification of national high-level experts, each performance index is better than enterprise standard and HBT trailer concrete pump reaches domestic advanced level.

Technical Data Sheet of LIANCHUANG Concrete Pump HBT50.8.55RSG

Parameter Name	Unit	Technical Data	Remark
Model		HBT60.8.55RS
Theory output	m³/h	68/45
Theory pressure	Mpa	4/8
Approximate conveying distance	m	500	(Level)
Approximate conveying distance	m	140	(Vertical)
Delivery cylinder: diameter*journey	mm	220×1200
Diesel engine power	kW	85
Hopper capacity	l	480
Feeding height	mm	1400
Size: L×W×H	mm	450021602700
Approx. weight	kg	5500
Type		(S-valve Trailer Concrete Pump)
Grain size	mm	10—50,(Delivery pipe dia.)ø150
Grain size	mm	10—40,(Delivery pipe dia.)ø125
Slump	mm	100~230

Batching machine:

Certificates:

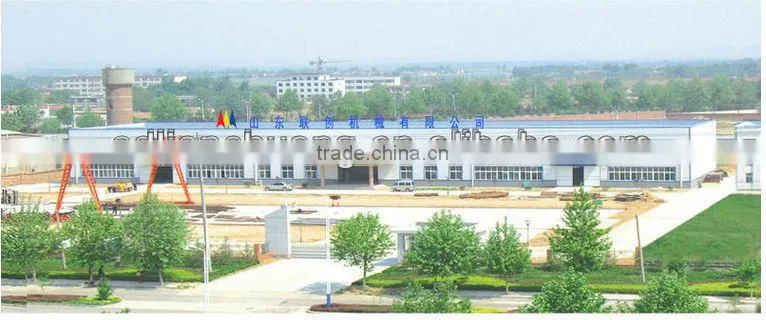

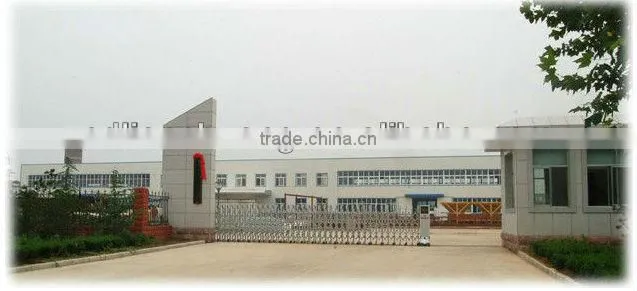

Our factory :

our customer:

Welcome come to our factory.
