Mixing machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 0 per Month
Port qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New		Place of Origin	Shandong, China
Brand Name	shandong lianchuang		Model Number	PL2400

Product Description

Specifications

the PL series batching machine can complete the batching program for sandstone material according to customer requirements

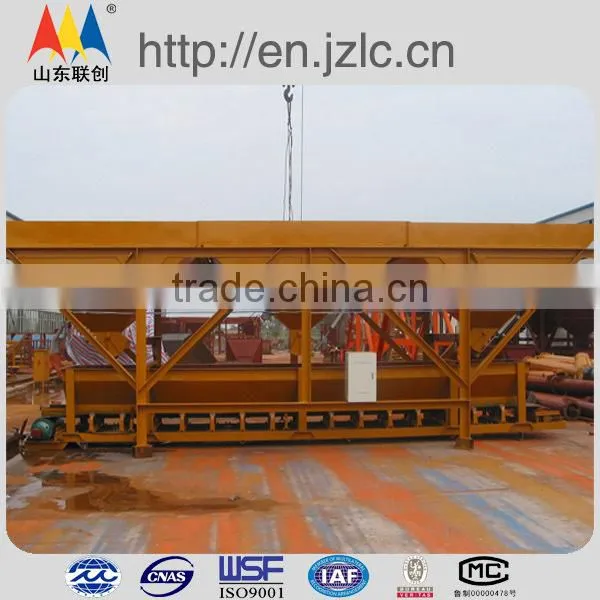

PL2400 batching machine

As a matching and auto dispensing equipment for Js series concrete mixer , the PL series batching machine can complete the batching program for sandstone material according to customer requirements. In addition, this machine consists of storage hopper ,weighing system, feeder system ,electric control system and so on. There are two kinds of feeding ways like pneumatic brake and belt convey.

PL2400batching machine is a kind of modified concrete batching equipment and used to prepare concrete mixture. It can prepare three kinds of material, adopts electronic scale measuring, automatic batching program control, six-door design. It is of higher batching accuracy, higher speed, strong applicability; easy to operate and reliable to use. The mixture ratio can be regulated freely, simple and intuitive.

And it is ideal equipment to improve production efficiency, reduce labor intensity, and guarantee concrete quality.

Model: PL2400 Batching Machine
Sandstone bucket volume m³	3*9	Belt conveyor power KW	2*4
Batching period S	≤60	Weighing hopper volume m³	2.4
Measuring accuracy %	±2	Measuring mode	Electronic scale
Overall size (lengthwidthheight) mm		10,180×2,305×2,900
Machine weight kg		5,000

Lubricant Table

Lubricating part	Season	Lubricant category	Oil volume
Motorized pulley of belt conveyer	Summer (25)	120# Industrial gear oil	Not below 20mm.
	Spring and autumn (10-25)	90# Industrial gear oil
	Winter (-5-10)	70# Industrial gear oil
Air compressor	Summer	19# Industrial gear oil	Add oil to upper limit of oil level. Add oil in time as the oil level descends.
Air compressor	Winter	13# Industrial gear oil
Air source triplet		HU-30(GB2537) antirust steam turbine oil	The oil should not exceed max oil level; add oil in time as the oil is near min oil level.

Note: As operating for 300 hours after adding oil firstly, replace new oil for motorized pylley and air compressor and clean the oil stain in them. And then replace lubricant according to season.

Now we havePL800 PL1200 PL1600 PL2400 PL3200 PL4800 and any other types available.

After-Sales Service:

1.Spare parts will be delivered as you need.

2.Engineers will go to clients’ site for guiding the installation and test-running;

3.Warranty period: 12 months since the installation and commisioning;

4.Service team will follow every placed order regularly till warranty period finished
