Specifications

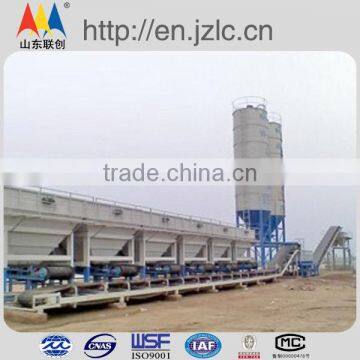

WCB series of stabilized soil mixing plant is mainly used for the stabilized soil construction of high-grade highway, city road,PRODUCTS FEATURES:
Modular design, novel and compact structure, convenient transferring.
Green environmental design. According to the national environmental standard design, low noise, no pollution, and standard dust discharge.
Advanced device configuration, reliable performance. Main components assembly and components select domestic and international brand-name products, after careful optimization of the design team to ensure the equipment long-term trouble-free operation.
Low carbon energy conservation environmental protection design. Low pressure spray, more suitable for China.
Easy operation, high degree of automation.
Main technical parameters:
Model | WCB300 | WCB400 | WCB500 | WCB600 |
Theory productivity (t/h) | 300 | 400 | 500 | 600 |
Total power (kw) | 90 | 100 | 140 | 150 |
Voltage (V) | AC380/220 | AC380/220 | AC380/220 | AC380/220 |
Power frequency(Hz) | 50 | 50 | 50 | 50 |
Mixing aggregate size (mm) | ≤60 | <60 | ≤60 | ≤60 |
Measurement method | Electronic dynamic weighing | Electronic dynamic weighing | Electronic dynamic weighing |
Electronic dynamic weighing
|
Proportioning accuracy | aggregate:±1.5% soil: ±1.5% lime: ±1% cement: ±1% water:±1.5% | aggregate:±1.5% soil: ±1.5% lime: ±1% cement: ±1% water:±1.5% |
aggregate:±1.5%
soil: ±1.5%
lime: ±1%
cement: ±1%
water:±1.5%
|
aggregate:±1.5%
soil: ±1.5%
lime: ±1%
cement: ±1%
water:±1.5%
|
Mixing form |
Twin horizontal shaft forced continuous way
|
Twin horizontal shaft forced continuous way
|
Twin horizontal shaft forced continuous way
|
Twin horizontal shaft forced continuous way
|
Control form |
centralized control of operation platform
|
centralized control of operation platform
|
centralized control of operation platform
|
centralized control of operation platform
|
Broken arch form
|
Mechanical /gas
|
Mechanical /gas
|
Mechanical /gas
|
Mechanical /gas
|
Feeding height(m) | 2.3 | 2.3 | 2.3 | 2.3 |
Unloading height(m) | 3 | 3 | 3 | 3 |
Width of Vehicle(m) | 3.5 | 3.5 | 3.5 | 3.5 |
Total weight(t) | about 32 | about 36 | about 45 | about 48 |
Area covered | 43×5(m) | 43×5(m) | 43×5(m) | 43×5(m) |

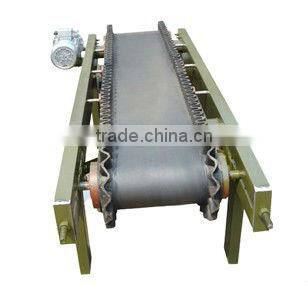

parts pictures:

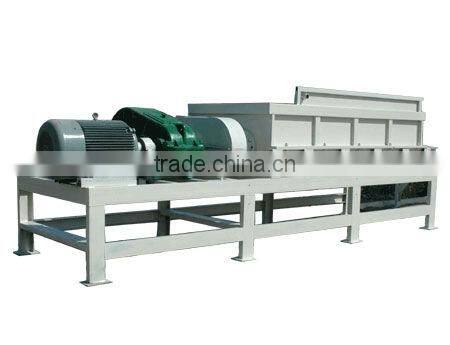

mixer :
