conveyor chain specifications
1. We are the only nation standard drafter and maker of conveyor chain.
2. It is made by imported technology.
3. Good wear resistance and corrosion resistance.
4. ISO2001

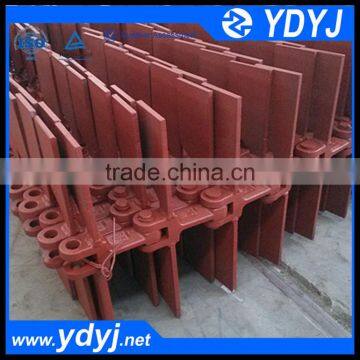

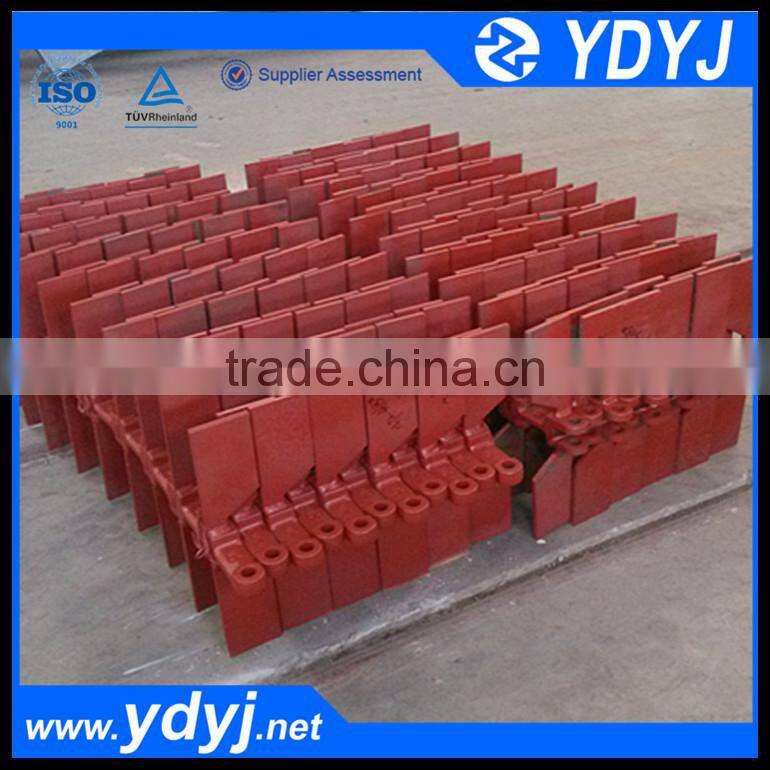

Coal mining conveyor chain with high wear resistance
conveyor chain features
1. It is made of alloy steel links with 40Cr, 20CrMnTi,it has strong broken load.
2. It has strict Carburizing treatment, and has high wear resistance and strong tensile strength.
3, It is make by forging process.
conveyor chain function.
It is the key part to transmit power of conveyor, to make the conveyor to finishe conveying material.

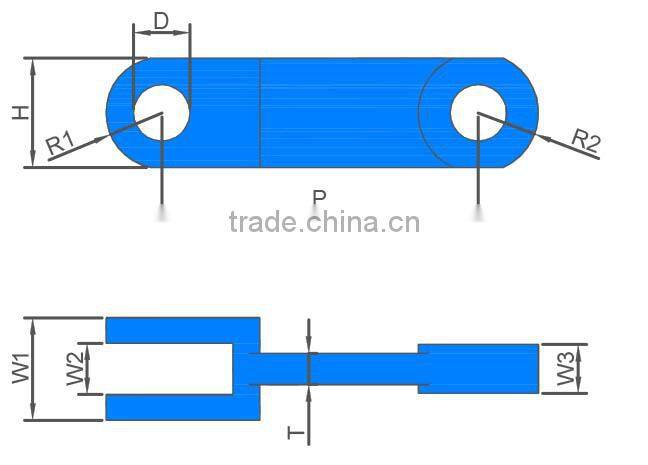

| Item | Type | P | W1 | W2 | D | W3 | H | T | R1/R2 |
| 1 | 142N | 142 | 43 | 22 | 25 | 19 | 50 | 12.5 | R25 |
| 2 | 150D | 150 | 60 | 30 | 30 | 28 | 70 | 18 | R35 |
| 3 | MG20 | 200 | 70 | 29 | 35 | 27 | 70 | 17 | R35 |
| 4 | MG20B | 200 | 70 | 29 | 30 | 27 | 70 | 17 | R35 |
| 5 | MG20C | 200 | 70 | 29 | 28 | 27 | 70 | 17 | R35 |
| 6 | ML40 | 200 | 48 | 25 | 25 | 23 | 58 | 18 | R31 |
| 7 | ML40A | 200 | 48 | 25 | 25 | 23 | 58 | 18 | R31 |
| 8 | MS32 | 200 | 42 | 22 | 25 | 20 | 50 | 12 | R25 |
| 9 | MS32B | 200 | 42 | 22 | 20 | 20 | 50 | 12 | R25 |
| 10 | MS32C | 200 | 42 | 22 | 20 | 20 | 50 | 12 | R25 |
| 11 | MS55 | 200 | 80 | 38 | 28 | 35 | 71 | 25 | R35.5/R35 |
| 12 | MS63 | 250 | 70 | 33 | 32 | 30 | 80 | 20 | R44/R40 |
| 13 | S16 | 100 | 30 | 16 | 14 | 15 | 27 | 8 | R14/R13.5 |
| 14 | S20 | 125 | 34 | 18 | 17 | 17 | 33 | 8 | R17/R16.5 |
| 15 | S25 | 160 | 48 | 25 | 20 | 23 | 40 | 13 | R20/R19.5 |
| 16 | S30 | 142 | 46 | 2305 | 25 | 22 | 49 | 14 | R25/R27 |
| 17 | S55D | 200 | 87 | 40 | 36 | 38 | 85 | 30 | R42.5 |
| 18 | T63 | 250 | 95 | 42 | 40 | 40 | 86 | 30 | R44/R43 |
| 19 | Z16 | 100 | 40 | 20 | 17 | 18 | 35 | 12 | R18/R17.5 |
| 20 | Z20 | 125 | 50 | 26 | 20 | 24 | 45 | 14 | R23/R22.5 |
| 21 | Z20D | 125 | 52 | 26 | 26 | 24 | 60 | 16 | R30 |
| 22 | Z25 | 160 | 58 | 30 | 25 | 28 | 55 | 18 | R28/R27.5 |
| 23 | Z25D | 160 | 66 | 31 | 28 | 29 | 64 | 22 | R32 |
| 24 | 3006 | 200 | 65 | 33 | 36 | 30 | 70 | 24 | R36.4/R35 |
| 25 | Z30 | 142 | 64 | 30.5 | 25 | 29 | 50 | 18 | R25.5/R27 |

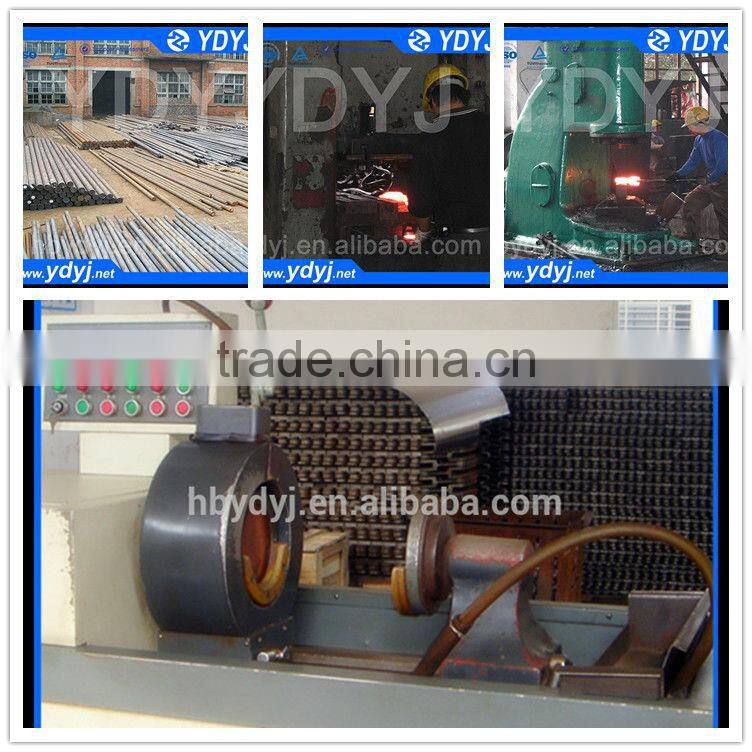

conveyor chain in producing

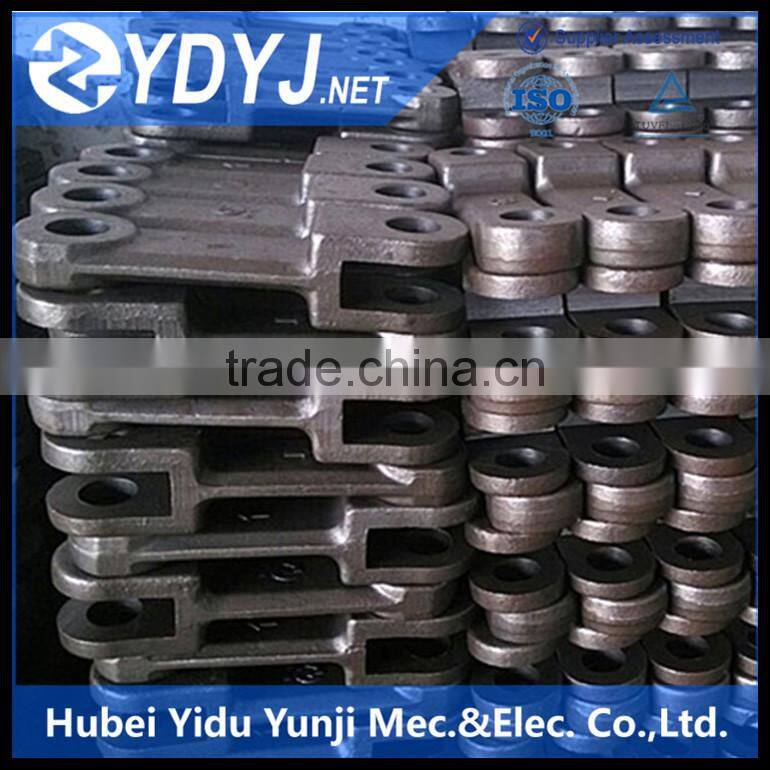

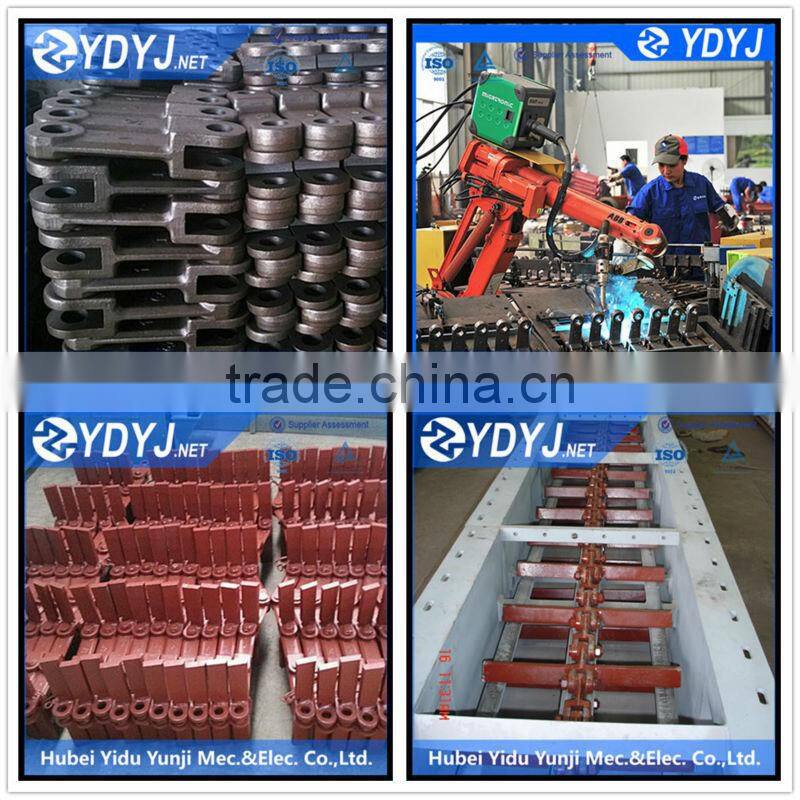

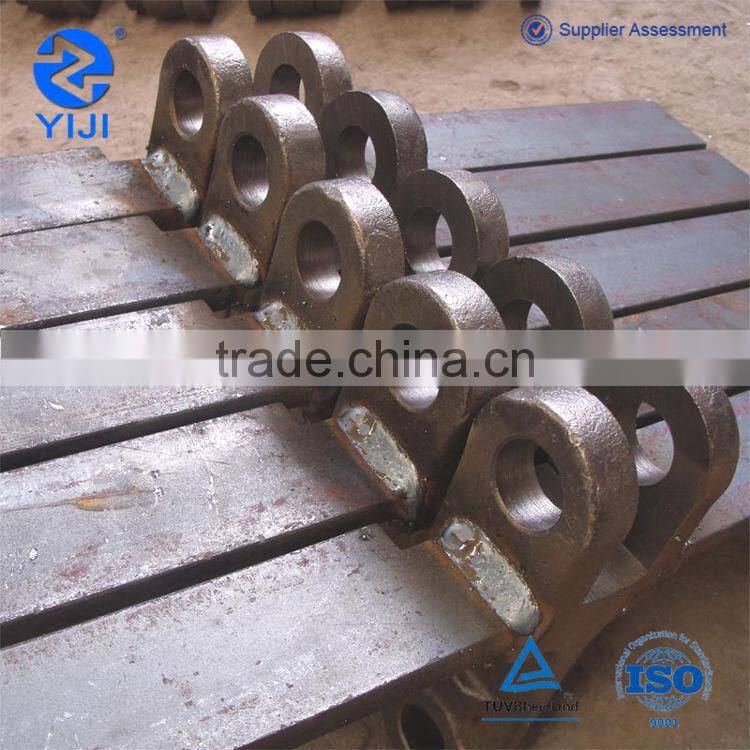

conveyor chain components

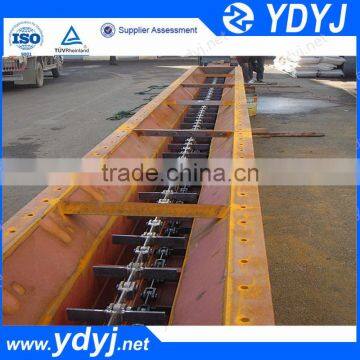

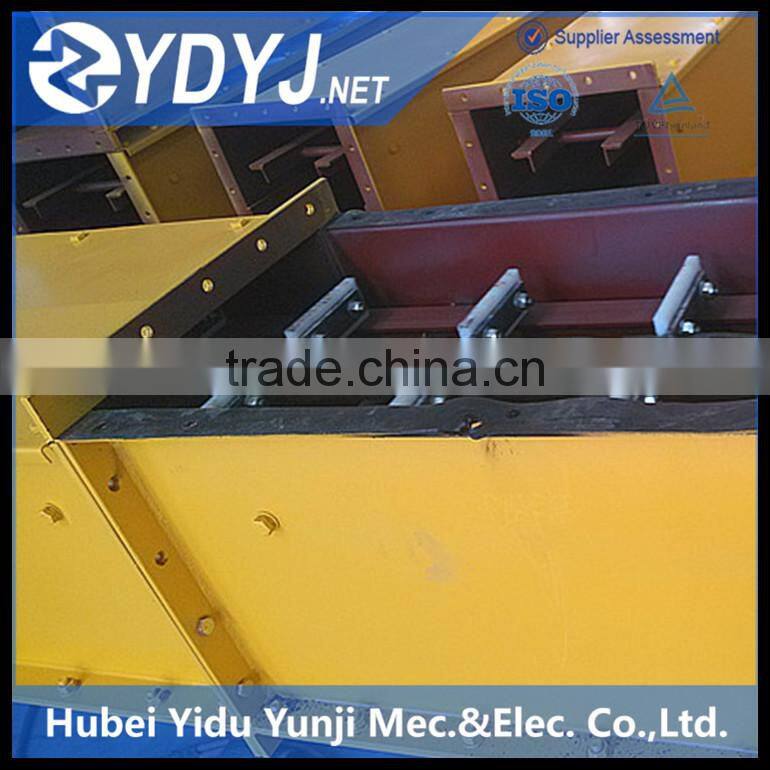

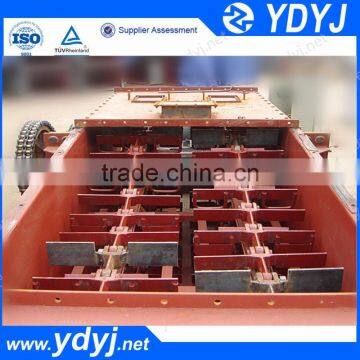

conveyor chain Site pictures
Our service
I. Engineers abailable to service machinery overseas.
2. Provide installation guide, equipment manuals, operation and repair training.
3. Provide random spare parts.

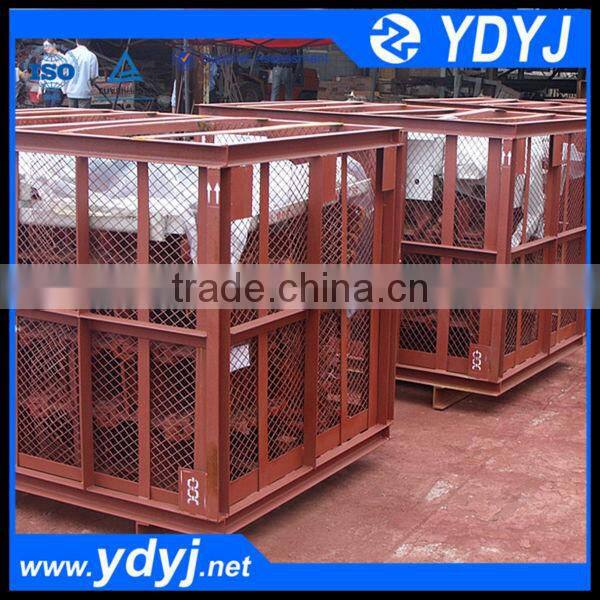

Packaging and shipping
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements)
3. It is suitable for long distance ocean transportation.
Company qualification certificate
Company advanced processing equipments
Company other informations
Warm tips :
We have so many types of conveyor chain, please tell us the following technical datas before ordering:
1. What 's the pitch and height of chains?
2.What's the material of links and scraper?
3.What's the quantity of chains do you want?
