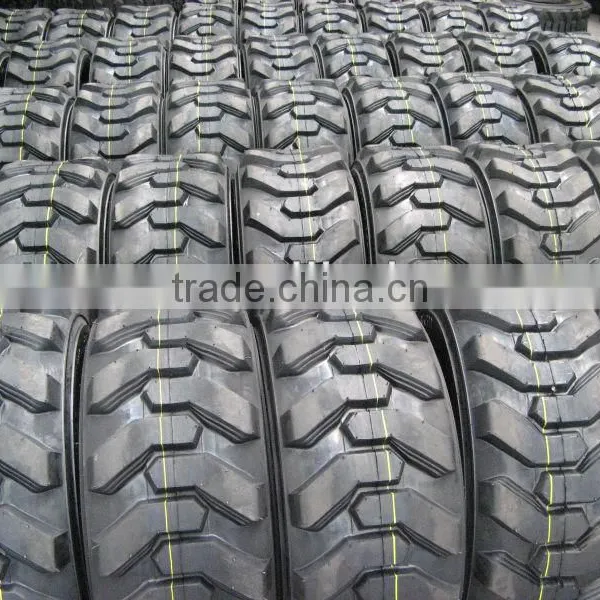

Skid Steer Tire for Case SR130

Specifications

Skid Steer Tire for Case SR130
1. 27x10.5-15 R4 8PR TL
2. Machine: Skid-steer/Backhoe Loader
3. Application: Standard Duty

Skid Steer Tire for Case SR130

Premium R4 Pattern

Features:
* Self-cleaning, open tread design for reduced maintenance time
* Extra large, tapered lugs for traction in slippery conditions and maximum wear life
* Reinforced dual sidewall for superior wear and resistance to cuts and abrasions
* Heavy rim guard reduces potential for damage to tire bead and wheel flange
* Improved productivity
* A smooth, stable ride for operator comfort
Applications:
* Dry Soil
* Wet Soil
* Rocky Soil
* Asphalt

Tyre Size

Ply Rating

Tyre Type

Tread Depth

Section Width

Overall Diameter

Max. Speed

Infl. Pressure

Max. Load

Standard Rim

(mm)

(32nds)

mm

inch

mm

inch

km/h

mph

kPa

psi

kg

Lbs

27X10.50-15

8

TL

23.0

28.9

221

8.7

686

27.0

10

5

413

60

3100

6838

8.50

Patterns Availabe:



R4/ deeper L4/X'tra deep L5

 R4

Features:
* Self-cleaning, open tread design for reduced maintenance time
* Extra large, tapered lugs for traction in slippery conditions and maximum wear life
* Reinforced dual sidewall for superior wear and resistance to cuts and abrasions
* Heavy rim guard reduces potential for damage to tire bead and wheel flange
* Improved productivity
* A smooth, stable ride for operator comfort

Applications:
* Dry Soil
* Wet Soil
* Rocky Soil
* Asphalt



L4
Features:
* Reinforced sidewall for superior tread stability and greater penetration resistance
* The deep tread provides for a long tread life and the center block tread resists “skid” wear

Applications:
* Quarries
* Rock & Shale
* Gravel
* Scrap Yard



Extra-Deep L5

Features:
* 14 ply rating enhances tear and puncture resistance
* Exceptional tread life resulting from low void-to-tread ratio
* Superior carcass strength allows the tire to bear extreme heavy load
* Exceptional traction and long wear

Applications:
* Quarries
* Rock & Shale
* Gravel
* Scrap Yard
* Asphalt
* Stone



Equivalent Brands:

Equivalent Brands:	Part No.
Solideal
Goodyear Sure Grip Lug
Titan Contractor FWD I-3
CAT Premium Conventional Tires	185-9932
	185-9933
	238-7740
	216-9111
	216-9112
	216-9113
	208-8512
	281-6590
	281-6591
CAT XD Tires	222-3962
	222-3963



MAIN Market

Aera	%
Asia	0
Mideast	30
Africa	20
North America	10
South America	20
Europe	0
Australia	20
Others	0





Safty Instructions:

The tire itself, the following factors are very important:

1.   Basic workmanship and materials.
2.    Air pressure maintenance
3.   Tyre matching
4.   A rotation policy
5.  Tyre records/analysis
6.   Repair procedures

 Working site conditions, Including the following factors:

1.   Type of equipment

2.       Weight of distribution

3.       Speed

4.       Haul length

5.       Wheel position

6.       Ambient temperature

7.       Underfoot conditions

8.       Operator habits



Tips for using tires:

1. Keep your tires clean by simply hosing them down.
2.  Remove embedded rocks
3. Wash off dirt
4.  Always use approved tire and rim combinations for sizes and contours.
5. Monitor and adjust air pressure, never exceed manufacturer’s recommended tire inflation pressure.
6.  Consider the weight of your load and keep it balanced
7.  Don’t spin the tires when digging.
8.  Rotate tires that wear faster , replace any tires that appear to show signs of excessive wear, are damaged, or defective in any way,

 Which tire for which machines:



	CAT		BOBCAT		CASE		GEHL		JOHN DEER		MELROE BOBCAT		MUSTANG		NEW HOLLAND		RAM ROD		THOMAS		TOYATA
10-16.5	216		S130-S205		410-420		4515		240		S130-S205		920		L-465		516		T-103		2SDK8
	226				1835C		4610		313		742		930A		L-553		584		T-133
	228				1838		4615		315		743		940		L-555
	232				1840		4625		317		753				L-565
							4635		675		753L				L-585
							4835		4475		763				LS-140
							5625		5575		773				LS-150
							5635		6675		7753				LS-160
							6635		7775						LS-170
															LX-465





12-16.5
	236		S220-S630		430-465				250		S220-S630		96		L-781		784		T-173
	242		A300		1845				260		853H		2060		L-783				T-203
	246				1845B				320		8853				L-785				T-233
	248				1845				325		843				L-865				T-243
	252								8875		873				L-885
	262										8853				L-985
	268										853				LS-180
	272										853H				LS-190
											863				LX-865
