Specifications
1.6001 rs ceramic bearings chinese bearings manufacturer2.high precision and long life
3.suitable for high speed
4.OEM sevic

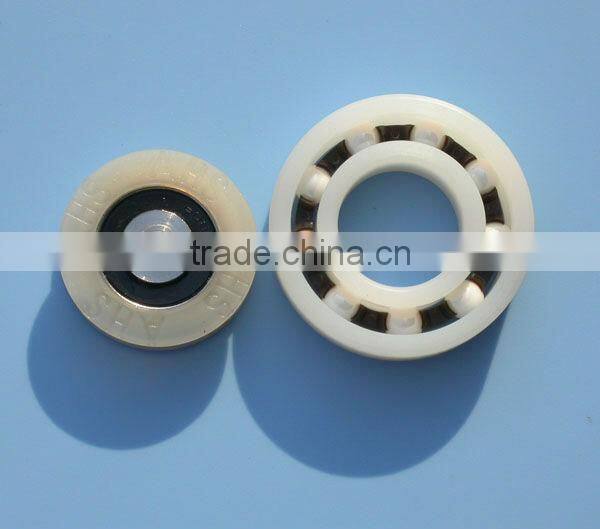

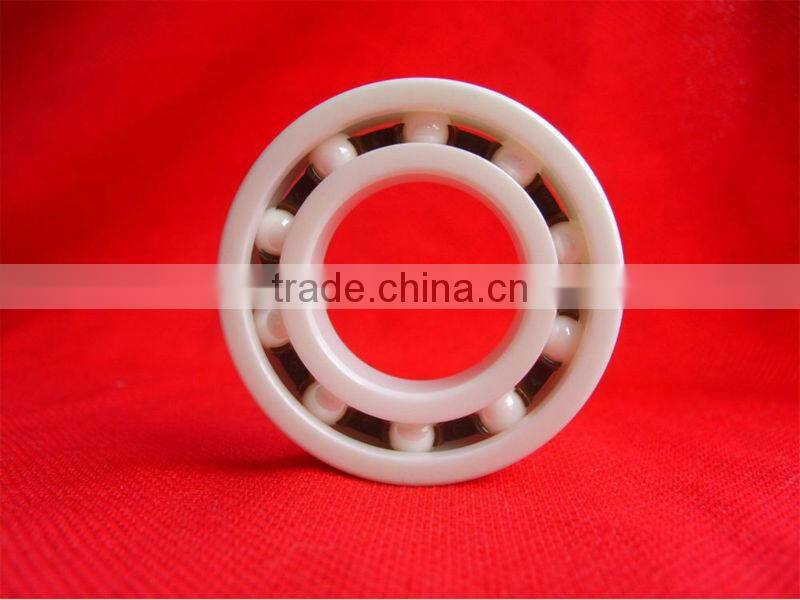

6001 rs ceramic bearings chinese bearings manufacturer
6001 rs ceramic bearings chinese bearings manufacturer instruction:
Detailed introduction to high precision, cheap price 6001 rs ceramic bearings chinese bearings manufacturer :
Item: high precision, cheap price deep groove ball bearing 6001-2RS,ZZ
· Material: ceramic
· ID (inner diameter)/Bore=12mm
· OD (outer diameter)=28mm
· Width/Height/thickness=8mm
· Precision grades: P0, P6, P5
We are Specialized in producing many kinds of bearings ,especially deep groove ball bearing. Our main products are deep groove ball bearing of 6000 series,6200series,6300series,6700series,6800series,6900series,1600series,16000series,MR series, inch R series.
Our products are in good quality ( low noise, high accuracy, long service life) and reasonable prices.
If you are interested in any of the products , please feel free to contact us.
· Clearance: C2, C0, C3, C4
· Seal types: open, RS, 2RS, ZandZZ
· OEM orders are welcome 6001 rs ceramic bearings chinese bearings manufacturer
6001 rs ceramic bearings chinese bearings manufacturer Product Description:
Bearing No 6001 ZZ
Material: ceramic
Technology: Low vibration, low noise, high precision and durable.
Tolerance: ABEC-3; ABEC-5
Vibration: Z2V1; Z3V3
Certificare: ISO9001: 2008
Package: Signle package: 1000PCS/CTN
Usage: Household appliance, medical facilities, communication devices, office facilities and motor industry.
6001 rs ceramic bearings chinese bearings manufacturer model:
| Bearing No. | Main Dimension(mm) | Load Rating(KN) | Ball Complement | Max Runout Speed | Weight Kg | ||||||
| Bore B mm | Outer Diameter D mm | Width B mm | Radius Rsmin mm | Dynamic | Static | No. | Size mm | Grease r/m | Oil r/m | ||
| 6000 | 10 | 26 | 8 | 0.3 | 3.52 | 1.95 | 7 | 4.763 | 22000 | 30000 | 0.019 |
| 6001 | 12 | 28 | 8 | 0.3 | 3.93 | 2.23 | 8 | 4.763 | 19000 | 26000 | 0.021 |
| 6002 | 15 | 32 | 9 | 0.3 | 5.6 | 2.84 | 9 | 4.763 | 22000 | 26000 | 0.03 |
| 6003 | 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 10 | 4.763 | 22000 | 26000 | 0.039 |
| 6200 | 10 | 30 | 9 | 0.6 | 3.93 | 2.23 | 8 | 4.763 | 19000 | 26000 | 0.032 |
| 6201 | 12 | 32 | 10 | 0.6 | 6.1 | 2.75 | 7 | 5.953 | 22000 | 30000 | 0.037 |
| 6202 | 15 | 35 | 11 | 0.6 | 7.75 | 3.6 | 8 | 5.953 | 19000 | 26000 | 0.045 |
| 6203 | 17 | 40 | 12 | 0.6 | 9.6 | 4.6 | 8 | 6.747 | 18000 | 23000 | 0.066 |
| 6300 | 10 | 35 | 11 | 0.6 | 5.88 | 3.47 | 7 | 6.35 | 18000 | 24000 | 0.0532 |
| 6301 | 12 | 37 | 12 | 1 | 9.7 | 4.2 | 6 | 7.938 | 20000 | 24000 | 0.06 |
6001 rs ceramic bearings chinese bearings manufacturer instruction:
Deep groove ball bearings mainly take radial load as well as take moderate axial load.With less coefficient of friction, high limiting speed, large size rang and colorful combination of structure; they are suitable for tractors, motors, automobiles, motorcycles, and other common machinery, as a widely used type of bearings in machinery industry
INCLUDE:
6000~6018(zz or 2rs)
6200~6218(zz or 2rs)
6300~6316(zz or 2rs)
we can also produce non-standard bearings according to your request so long as the quality is substantial. If you have any specific requirements, please just let us know.
Charateristics:
other 6001 rs ceramic bearings chinese bearings manufacturer Models:
600 series, 620 series , 6000 series,
6200 series, 6300 series, 6400 series,
6700 series, 61800 series, 61900 series, 62000 series, 6800 series, 6900 series,
62200 series, 62300 series, 63000 series,
R series, Z, ZZ, RS ,2RS, RLS series, RMS series, 1600 series,
16000 series,608ZZ,6082RS, 608RSZ,TK608ZZ,6200ZZ,6201ZZ,629ZZ,629RSZ,6900-2RS,6900ZZ,6000ZZ,R4ZZ,697ZZ,B series etc
Quality System Certificate | ISO9001:2000 |
Material | stainless steel |
Hardness | HRC60-HRC65 |
Bore Size Range | 15mm~150mm |
Outside Diameter Range | 40mm~300mm |
Vibration Rating | V1,V2,V3 |
Noises Rating | Z1,Z2,Z3 |
Clearance | C0,C2,C3,C4 |
Precision Rating | P0,P5,P6 |
Tolerance Rating | ABEC-1,ABEC-3,ABEC-5 |
Seals Type | ZZ,2RZ,2RS,OPEN |
Rotational Speed | 1000-4000 |
Snap Ring | N,NR |
Cage | Steel, Brass, Nylon |
H.S Code | 84821020 |
Inspection By | PPAP Document is Accept |
Service Range | OEM brand, Specially produce diversified brand for customer Require |
IF YOU HAVE ANY QUESTIONS,PLEASE DO NOT HASITATE TO CONTACT ME,MANY THANKS!
Contact Details:
Company Name: | JinanKelunte Bearings Co.,Ltd |
Mobile: | +86 13705409748 |
Tel: | +86-531-55509795/55509796 |
Fax: | +86 -531-66803368 |
