Ball joint rod end bearing GE260ES GE260ES 2rs bearing

FOB Price

USD $0.1 - $0.1 / Piece

1 Piece(Min.Order)

Supply Ability 200000 Piece / Pieces per Month
Port Qingdao Shenzhen Shanghai Guangzhou
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CLUNT	Bore Size	260,
Model Number	GE260ES	Place of Origin	Shandong, China
Precision Rating	P0 P6 P5 P4 P2

Product Description

Wholesales Radial spherical plain bearing ball joint rod end bearing

GE260ES

Product Description

China Factory Joint Bearings

Plain Bearing simple structure than the rolling bearing, which is mainly composed of an inner and outer sphere within a spherical outer ring. Bearings are generally used for lower-speed swing motion (ie angular motion), the sliding surface of the spherical shape, but also for the tilt angle within a certain range of motion (ie, aligning movement), the support shaft misalignment and shaft housing bore large degree, still work.
our serives

Products name	rod end bearing
Brand name	Imported brand or customized to the customer's brand
Series	PHS,SI.POS GE, grease nipple type , standard grease nipple , ball joint male thread , copper threaded rod, threaded rod internal thread
ID size	18-23mm
Cage material	rubber , steel
Precision	PO P6
Sealing	Open
Quality standard	ISO9001:2000 standard
Service	OEM &ODM service
Delivery date	5-20 days
Paymentterms	A:TT B:PayPal C:Western union
Application	Auto, tractor ,machine tool, electric machine, water pump, agricultural machinery and textile machinery
Packing	Industrial packing or according to buyers’ requirement
BRAND	CLUNT

PHS series roe end bearing

type	Dimensions(mm)												a	weight (g )
type	d	d3	d2	d5	S	B	L5	C1	h1	L3	d4	L4	a	weight (g )
PHSA5	5	M5x0.8	18	12.5	10	8	4	6	27	10	9	36	13	25
PHSA6	6	M6x1	20	13	11	9	5	6.75	30	12	10	45	13	27
pHSA8	8	M8x1.25	24	16	14	12	5	9	36	16	12.5	48	13	46
PHSA10	10	M10x1.5	28	19	17	14	6.5	10.5	43	20	15	57	13	76
PHSA12	12	M12x1.75	32	22	19	16	6.5	12	50	22	17.5	66	13	115
PHSA14	14	M14x2	36	25	55	19	8	13.5	57	25	20	75	13	170
PHSA16	16	M16x2	42	27	25	21	8	15	64	28	22	84	13	230
PHSA18	18	M18x1.5	46	31	27	23	10	16.5	71	32	25	94	13	320
PHSA20	20	M20x1.5	50	34	30	25	10	18	77	33	27.5	102	13	420
PHSA22	22	M22x1.5	54	37	32	28	12	20	84	37	30	111	13	540
PHSA25	25	M24x2	60	42	30	31	12	22	94	42	33.5	124	13	750
PHSA28	28	M27x2	66	46	41	35	14	24	103	41	37	136	13	820
PHSA30	30	M30x2	70	50	41	37	15	25	110	51	40	145	13	1300

POS series roe end bearing

type	Dimensions(mm)								a	weight(g )
type	d	d3	d2	B	C1	h	L1	L2	a	weight(g )
POSA5	5	M5x0.8	18	8	6	33	19	42	13	20
POSA6	6	M6x1	20	9	6.75	36	22	46	13	21
POSA8	8	M8x1.25	24	12	9	42	25	54	13	34
POSA10	10	M10x1.5	28	14	10.5	48	29	62	13	58
POSA12	12	M12x1.75	32	16	12	54	33	70	13	92
POSA14	14	M14x2	36	19	13.5	60	26	77	13	153
POSA16	16	M16x2	42	21	15	66	40	86	13	205
POSA18	18	M18x1.5	46	23	16.5	72	44	95	13	280
POSA20	20	M20x1.5	50	25	18	78	47	103	13	370
POSA22	22	M22x1.5	54	28	20	84	51	111	13	475
POSA25	25	M24x2	60	31	22	94	57	124	13	650
POSA28	28	M27x2	66	35	24	103	62	136	13	800
POSA30	30	M30x2	70	37	25	110	66	145	13	1070

Other code of spherical plain bearing


Type	Dimension(mm)								Load(KN)		Weight(kg)
	d	D	B	C	dk	R1s	R2s	α	Dynamic	Static
						min	min	≈	C	C0
GE15FW2RS	15	30	16	10	25	0.3	0.3	16	22.4	56	0.046
GE17FW2RS	17	35	20	12	29	0.3	0.3	19	31.5	78	0.078
GE20FW2RS	20	42	25	16	35.5	0.6	0.6	17	51	127	0.15
GE25FW2RS	25	47	28	18	40.7	0.6	0.6	17	65.5	166	0.19
GE30FW2RS	30	55	32	20	47	0.6	1	17	210	350	0.29
GE35FW2RS	35	62	35	22	53	0.6	1	16	277	462	0.39
GE40FW2RS	40	68	40	25	60	0.6	1	17	360	600	0.52
GE45FW2RS	45	75	43	28	66	0.6	1	15	442	737	0.68
GE50FW2RS	50	90	56	36	80	0.6	1	17	690	1150	1.4
GE60FW2RS	60	105	63	40	92	1	1	17	885	1475	2
GE70FW2RS	70	120	70	45	105	1	1	16	1125	1875	2.9
GE80FW2RS	80	130	75	50	115	1	1	14	1380	2300	3.5
GE90FW2RS	90	150	85	55	130	1	1	15	1717	2862	5.4
GE100FW2RS	100	160	85	55	140	1	1	14	1845	3075	6
GE110FW2RS	110	180	100	70	160	1	1	12	2685	4475	9.7
GE120FW2RS	120	210	115	70	180	1	1	16	3015	5025	14
GE140FW2RS	140	230	130	80	200	1	1	16	3840	6400	19
GE160FW2RS	160	260	135	80	225	1.1	1.1	16	4320	7200	24.7
GE180FW2RS	180	290	155	100	250	1.1	1.1	14	6000	10000	35.9
GE200FW2RS	200	320	165	100	275	1.1	1.1	15	6600	11000	45.3
GE220FW2RS	220	340	175	100	300	1.1	1.1	16	7200	12000	51.1
GE240FW2RS	240	370	190	110	325	1.1	1.1	15	8550	14250	65.1
GE260FW2RS	260	400	205	120	350	1.1	1.1	15	10050	16750	82.4
GE280FW2RS	280	430	210	120	375	1.1	1.1	15	10800	18000	97.2

Features:

Operating Temperature Range: -30 Deg C to + 80 Deg C long term short term up to +120 Deg C
Materials: Ball material Gcr15 hardened Chrome steel ball (58-64 HRC) ,
Housing: s45c (54-60 HRC)
Uses: They are suitable for rotary, oscillating and linear movements and are light weight.
Tolerances: They are manufactured in accordance to DIN ISO 12240
Benefits: Corrosion and chemical resistant, lightweight, stiff, dry operation, maintenance free

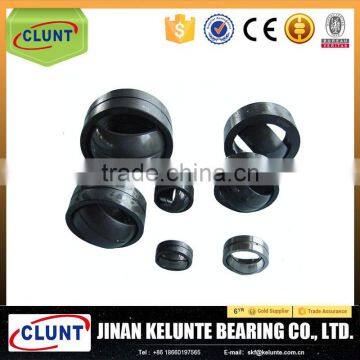

Product Picture
