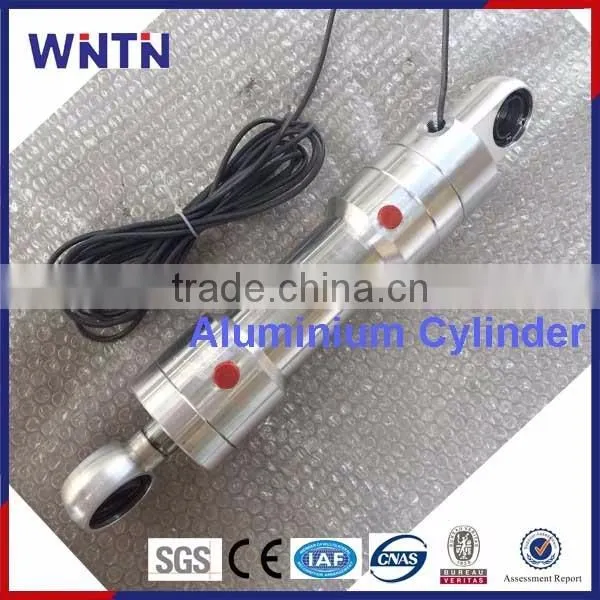

Travel indicating Aluminium Hydraulic Cylinder
- 20000 Piece / Pieces per Month
- Qingdao
- T/T
You May Like
-
Inside Transducer type Aluminium Hydraulic Cylinder
-
high pressure Telescopic hydraulic oil cylinder
-
Cylinder hydraulic hydraulic jack hydraulic rams hydraulic motor HYDRAULIC CYLINDER
-
Factory direct sale hydraulic cylinder price
-
Factory direct sale hydraulic cylinder price hydraulic ram price
-
hydraulic cylinder manufacturer hydraulic ram price cylinder hydraulic
Product Details
| Standard or Nonstandard | Nonstandard | Structure | Piston Cylinder | |
| Power | Hydraulic | Body Material | Aluminum | |
| Maximum Stroke | 100mm | Shaft Diameter | 28mm | |
| Place of Origin | Shandong, China | Model Number | AL | |
| Brand Name | WINTIN |
Product Description
This series Cylinder is designed to apply to the CNC machinery area which requires high accuracy and light weight. It uses Al alloy materials which with light weight and good strength. There is inside transducer in the cylinder body so it can indicate the travel distance of the cylinder. So ti can work together with the CNC controlling axis to achieve automatic working.
Features:
* High strength and Light weight material of AL alloy.
* With inside transducer.
* Germany imported sealing system.
Specifications:
Aluminum Hydraulic Cylinder with Inside Transducer
Materials: Al 7075#
Cylinder diameter: 50mm
Rod diameter: 28mm
Stroke: 100mm
Rated pressure: 16Mpa
Working oil: N46/N32 hydraulic oil
Working temperature: 0~60℃
We can also design and make the cylinders as your requirements.
