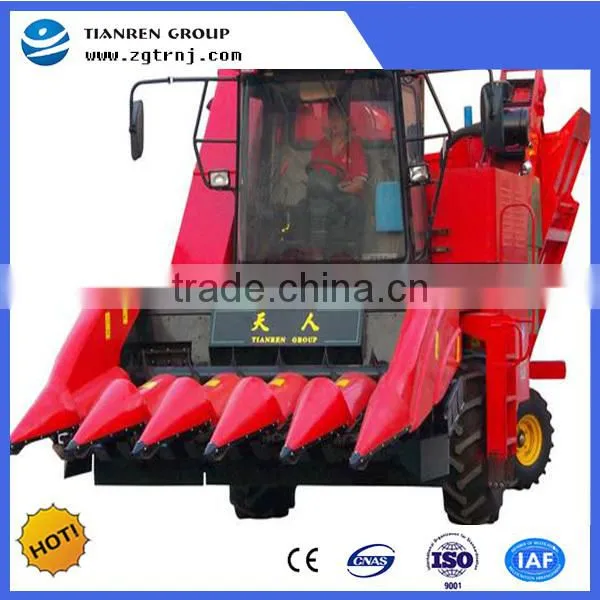

TR9988-5550 self-propelled good performance tractor corn combine harvester

Specifications

Tractor corn combine harvester
low grain loss ratio high reliablity
superior down corn gathering performance
ISO 9000

TR9988-5550 self-propelled good performance tractor corn combine harvester



Real Pictures







Product Feature

Model	TR9988-5550
Function	picking up, peeling,cutting stalks, unloading etc
Number of rows	5
Row spacings (mm)	550
workable row spacings range (mm)	500-600
Engine Power(kw/hp)	118/160
Size(mm)	9500*3300*3900
Grain Tank Volume	4.8m³
The maximum height of unloading(mm)	2600
Breakage rate	≤1%
Total loss rate	≤3%
Peeling rate	≥85%
The minimum corn cob height from field(mm)	200
Harvesting Efficiency (Acre/hour)	1.3-2.4
NW(kg)	9300
Stubble height (mm)	≤120
flail blade attachment	optional
stalk chopper	optional
Airconditioner	optional



 Main Advantage

1. Low loss rate: industry-leading corn header,  adopt patented small tilt angle techniques to stop free grain loss, superior corn-gathering performance in harvesting standing, leaning, down corns, attached collecting tank under the vibrant sieve of husking units to minimize the field loss.



2. Advanced husking unit design: high peeling rate, good adaptability, less grain loss, high reliability.



3. Reliable and durable chassis design: equipped with quality 1000 series gearbox, stepless speed adjustment; strenthened front axel, underframe, and main frame, more durable.



4. Easy to operate with enhanced safety: combination instrument with LCD panel, easy to operate; good vision provided by the arc glass as well as equipped with the reversing and working video to improve the driving safety.



5. Leading performance dissel engine: featuring huge power reserve and less fuel consumption.



6. Patented energy saving protection of engine: using the wind from radiator fan to ensure no corn leaves and other combustible gathered around the engine, energy saving.



7. Advanced hydraulic lifting system: can lift peeled corn the second time to ensure the 6.7 m³ grain tank filled automatically, save time and manpower.



8. Stalks can be recycled by forage harvester after harvesting.



9. The corn header attached flail blade(optional): can do stubble ploughing, save 40% fuel consumption by crushing the stalks together with snapping.



Operation Scene





Please contact us for the impressive working video of our harvester and headers!



 Work Flow





 Components And Parts



 Factory Pictures
