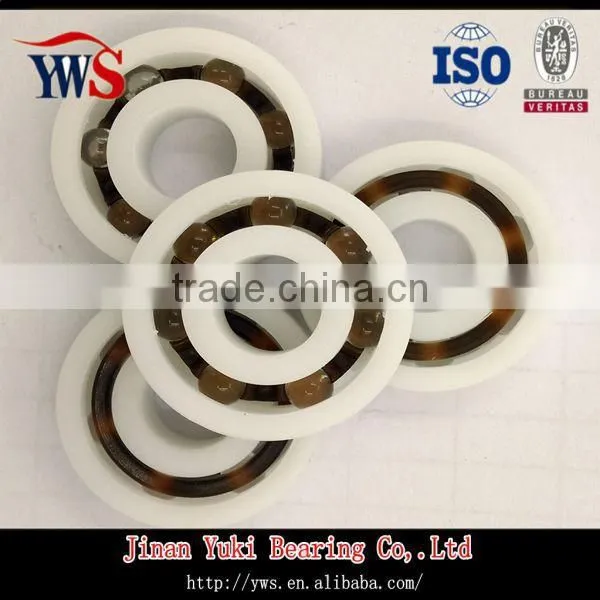

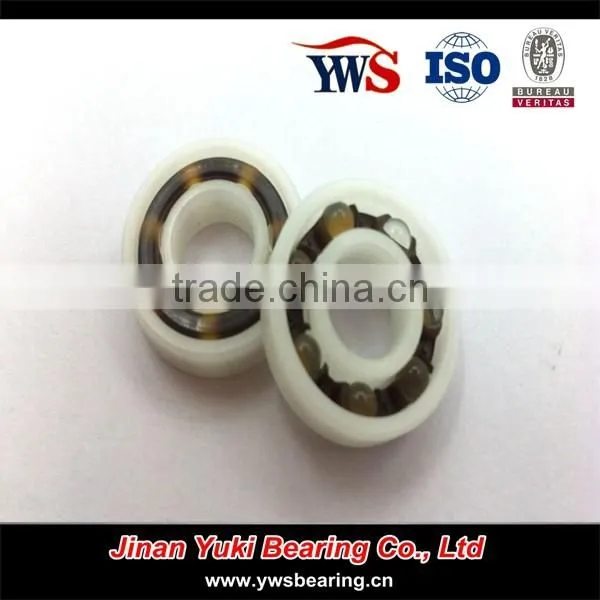

pom 6804 bearing

POM plastic bearings , PP plastic bearing POM and PA materials with good mechanical strength and wear resistance , suitable for the production of more sophisticated plastic bearings, working temperature from -60 °C ~ 100 °C, high strength and smooth surface , basically does not appear tension , its good self-lubricating properties and low coefficient of friction , while maintaining the traditional advantages of plastic bearings on the basis of precise and can be used in high speed operation .

Features:
(1) rigidity, high hardness , even at low temperatures , high impact strength
(2) good excellent elasticity , creep resistance ;
(3) high thermal stability and very good dimensional stability ;
(4)good sliding properties , wear resistance ;
(5) physiologically inert , suitable for contact with food.
(6) Even in strong acid and strong oxidizing agents, poor paint adhesion
Main purpose :
Mechanical and electrical equipment , fitness equipment , food machinery , furniture and decorating materials

HDPE, PP, UPE material has proven to be relatively weak acid cross- environment (30% Cucl2 solution and 30% NaoH solution tested OK) it is suitable for most acid / base / salt / solvent / oil / gas and seawater corrosion environment. With general plastic bearings oil-free self -lubricating, anti-magnetic insulation properties, but lower mechanical strength , easily deformed. In comparison, the use of UPE material will have better strength , low friction characteristics and low temperature application characteristics (down to -150 °C).

Features:
(1) good corrosion resistance at a certain temperature and concentration ability of various corrosive media and organic media
(2) high mechanical strength , high toughness can be maintained cutting at liquid nitrogen temperature (-196 °C)
(3)good self- lubricating, wear high
(4) Strong anti- adhesion
(5) low water absorption, excellent electrical insulation
(6) good resistance to high energy radiation
Main purpose :
Mechanical and electrical equipment , fitness equipment , food machinery , furniture and decorating materials

PTFE high-temperature corrosion-resistant plastic bearings
PTFE and PI as a new plastic material , proved to be all known engineering plastics and high temperature mechanical strength, dimensional stability and better performance , in which long-term use temperature of PTFE 260 °C, PI long-term use temperature is as high as 300 °C , and which has excellent corrosion resistance. The ball is generally Zro2 or Si3N4 ceramic balls. In comparison the harsh operating environment of precision bearings , the drawback is due to the material itself is relatively expensive , so the higher cost

    Application : Power Tools,Fans,Washing Machines,Pumps,Electric Motors,Sport Apparaus,Textile Machined,Skateboard,Skates

     Jinan Yuki Bearing Co., Ltd. is a Sino-Japanse joint ventured company, specializing in designing and manufacturing various types of bearings including deep groove ball bearings, spherical insert bearings, tapered roller bearings, angular contact ball bearings, thrust ball bearings, self-aligning roller/ball bearings as well as plastic bearings, ceramic bearing and so on. We could also provide OEM service according to our customers' requirements.
