cnc motion linear guide rod rail bearing
- 300000 Piece / Pieces per Month
- QINGDAO
- T/T D/P D/A Credit Card
You May Like
Product Details
| Guide Width or Diameter | 12-20mm | Guide Length | 21m | |
| Model Number | TBR20UU TBR25LUU TBR30UU LMEK20UU LM25UU LMEF30 LMEK35UU LMF40UU LMF | Place of Origin | Shandong, China | |
| Brand Name | YWS oem |
Product Description
Specifications
linear guide rod:1. High quality and long use life
2. Supply OEM service
3. length deends on requirement
4. in stock

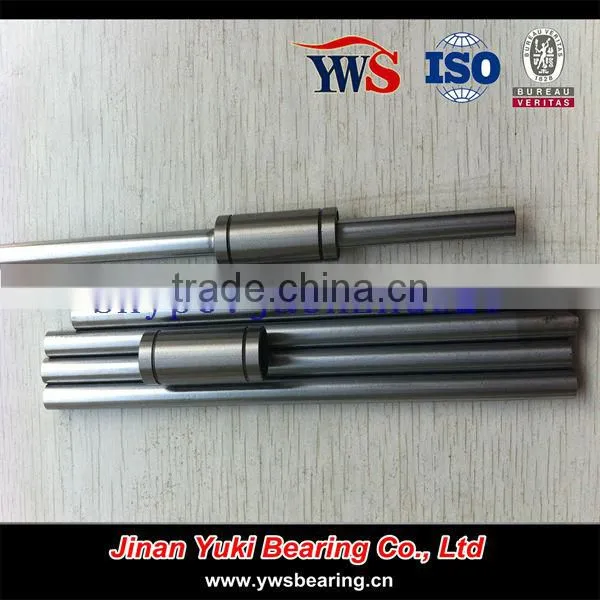

cnc motion linear guide rod rail bearing :
1.SCS6UU/L-SCS60UU/L
SBR12UU/L-SBR50UU/L
TBR16UU/L-TBR30UU/L
2.Delivery time:2-15days
3.Low price&good quality&good service
As a professional linear motion products manufacturer with many years expriences,we could offer many kinds of linear rail and Linear motion bearings with good quality but more competitive price in this field.
Closed types:SCS6UU/LUU- SCS60UU/LUU
Open types: SBR12UU/LUU-SBR50UU/LUU
Open flange types:TBR16UU/LUU-TBR30UU/LUU
Feature:
1.Complete sliding units system with high accurrfangce and can be moved without deflection
2.Long life use.
3..Prompt delivery and good service.
4.Stocking feet and low batch wholesale.
5.ISO9001:2008,SGS quality certificates
6.Welcome to inquiry!
| Product name | linear ball side units rail and block series |
| Brand name | yws |
| Material | GCR15 |
| Model | LM25LUU |
| Weight |
|
Service | we will serve you ASAP when we see you email and message on trademanger |
| Deliver time | 3-30 days after orders confirmed |
| package | As small order like sample order, we will sent by the international express, like DHL,TNT,As large order, we always sent by sea, packing by wooden case. |
| loading port | qingdao |
| payment terms | L/C, T/T, western union , paypal |
1.systematization:
1). Metal linear bearing and Plastic linear bearing
2). Standard, Clearance SetUp Coordinatelinear bearing, Open mouth linear bearing , The stretched linear bearing ,
General linear bearing.
3). Flange linear bearing can be divided into: round flange type, method, elliptical flange, round flange type, guidance method orchid type, orientation ellipse flange type, extended type circular flange .
4). LM and LME series. Its code LM series used in Asia, southeast Asia, Japan, South Korea, China, etc. Metric size as standard, with the straight axis diameter tolerance is usually h7. LME series is much used in Europe, the United States, Germany, Italy and other regions. Inch size as standard and metric size, with the straight axis diameter tolerance is usually g6. Two big series structure features, in addition to the different size, diameter tolerance is different, its structure is roughly the same.
Plastic linear bearing can be divided into two major series with LIN -12 and LIN - 11 series, its code name LIN - 11 is the representative of a European standard plastic linear bearing, and LIN - 12 series is narrow type design, mainly in order to save installation space and design; Distinguishes between two major series, LIN - 11 series is using circlip limit installation, and LIN - 12 series is directly mounted with its diameter and installing seat hole tight fit.
2.Specifications
LM linear bearing: LM3UU,LM4UU,LM5UU,LM6UU,LM8UU,LM8S,LM10UU,LM12UU,LM13UU,LM16UU, LM20UU,LM25UU,LM30UU,LM35UU,LM40UU,LM50UU,LM60UU, LM80UU,LM100UU |
LME linear bearing: LME3UU,LME4UU,LME5UU,LME6UU,LME8UU,LME8S,LME10UU,LME12UU,LME13UU, LME16UU, LME20UU,LME25UU,LME30UU,LME35UU,LME40UU,LME50UU,LME60UU, LME80UU,LME100UU |
LMB linear bearing: LMB4UU,LMB6UU,LMB8UU,LMB10UU,LMB12UU,LMB16UU,LMB24UU,LMB32UU |
LM Open Series linear bearing: LM10OPUU,LM12OPUU,LM13OPUU,LM16OPUU,LM20OPUU,LM25OPUU, LM3OOPU,LM35OPUU,LM40OPUU,LM50OPUU,LM60OPUU,LM80OPUU,LM100OPUU |
KH type linear bearing: KH0622PP,KH0824PP,KH1026PP,KH1228PP,KH1630PP,KH2030PP, KH2540PP,KH3050PP,KH4060PP,KH5070PP |
Stell Cage Linear Bearing: LM8GA,LM10GA,LM12GA,LM16GA,LM20GA, LM25GA,LM30GA,LM35GA,LM40GA,LM50GA,LM60GA |
SDM series Steel cage linear bearing(As same as Ease SDM series): SDM16,SDM20,SDM25,SDM30,SDM35,SDM40,SDM50,SDM60,SDM80,SDM100,SDM120, SDM150 |
Flange Type Linear Bearing: LMF6UU,LMF8UU,LMF10UU,LMF12UU,LMF13UU,LMF16UU,LMF20UU,LMF25UU,LMF30UU, LMF35UU,LMF40UU,LMF50UU,LMF60UU,LMF80UU,LMF100UU LMK6UU,LMK8UU,LMK10UU,LMK12UU,LMK13UU,LMK16UU,LMK20UU,LMK25UU,LMK30UU, LMK35UU,LMK40UU,LMK50UU,LMK60UU,LMK80UU,LMK100UU LMT6UU,LMT8UU,LMT10UU,LMT12UU,LMT13UU,LMT16UU,LMT20UU,LMT25UU,LMT30UU. |
Linear Slide Unit: 1.Close Type:SC8UU,SC10UU,SC12UU,SC13UU,SC16UU,SC20UU,SC25UU,SC30UU,SC35UU,SC40UU, SC50UU,SC60UU (normal type) SC8WUU,SC10WUU,SC12WUU,SC13WUU,SC16WUU,SC20WUU,SC252UU,SC30WUU,SC35WUU, SC40WUU,SC50WUU (long type) SC8VUU,SC10VUU,SC12VUU,SC13VUU,SC16VUU,SC20VUU,SC25VUU,SC30VUU,SC35VUU, SC40VUU,SC50VUU(Short type) 2.Open Type: SBR10UU,SBR12UU,SBR13UU,SBR16UU,SBR20UU,SBR25UU,SBR30UU,SBR35UU, SBR40UU,SBR50UU(Normal type) SBR10LUU,SBR12LUU,SBR13LUU,SBR16LUU,SBR20LUU,SBR25LUU,SBR30LUU, SBR35LUU,SBR40LUU,SBR50LUU(Long type) TBR16UU,TBR20UU,TBR25UU,TBR30UU (This type with the flange at the pillow block) |
Shaft Support: SK/SHF SHAFT SUPPORT: SK8,SK10,SK12,SK13,SK16,SK20,SK25,SK30,SK35,SK40,SK50,SK60 SHF8,SHF10,SHF12,SHF13,SHF16,SHF20,SHF25,SHF30,SHF35,SHF40,SHF50, |
linear bearing
We have other bearing, if necessary, please click on the image link
insert bearings pillow block bearings
Deep groove ball bearing
taper roller bearings
Spherical self-aligning Roller ball Bearing
