Home > Products > irregularly shaped > Strong Pot Magnet with Screw Thread
Strong Pot Magnet with Screw Thread
- 20000 Piece / Pieces per Month
- Shenzhen
- Credit Card
- Countersunk Magnet 30 x 10 mm Hole 6 mm Rare Earth Neo Neodymium neodymium magnet cylinder 6mm
- Neodymium Screw hole D18xd3.2/7x2.5mm N42 Magnets
- Countersunk Pot D20xd5.5/8.5x2mm N52 Permanent Magnets
- Customized N35 Ndfeb hexagon magnet for sale
- Pot Neodymium N45 countersunk Ndfeb Magnet
- Screw Hole N42 Sintered Neodymium Magnet for Holding
Product Details
Place of Origin: | Guangdong, China | Brand Name: | AIM | Model Number: | N35 |
Type: | Permanent | Composite: | Neodymium Magnet | Shape: | Other, round |
Application: | Industrial Magnet |
Product Description
Specifications
Strong Neodymium Magnet
1.Precise dimension
2.Various shape
3.Stable performance
4.Good corrosion resistance

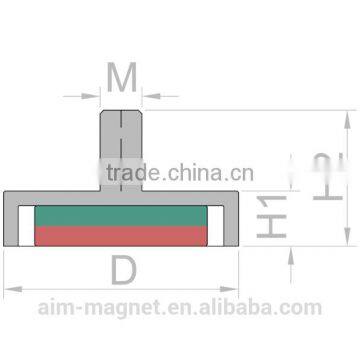

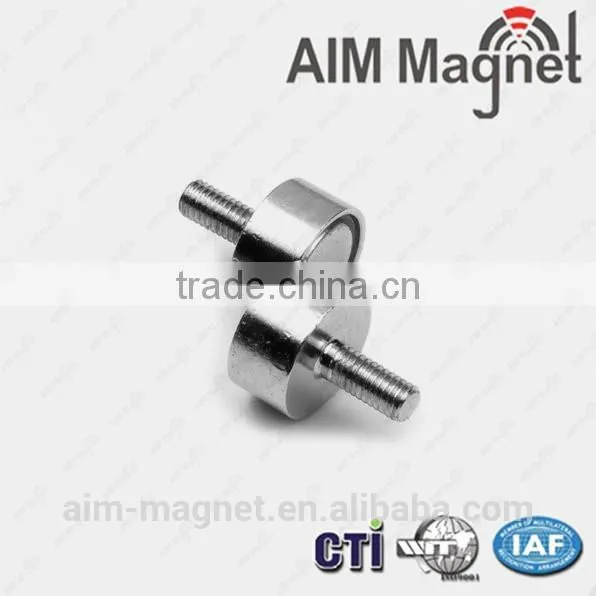

Strong Pot Magnet with Screw Thread
Neodymium( NdFeB )magnets are the strongest type of rare earth magnet commercially available and are
manufactured in a wide range of shapes, sizes and grades. Shenzhen AIM Magnet Co.,Ltd was found in 2006
which is the role-model enterprise among magnets manufacturing industries in China. We own one-step
complete industrial chain from raw material blank, cutting, electroplating and standard packing.
Material | Sintered Neodymium-Iron-Boron ( NdFeB ) | |
Size | Various kinds or according to customers' request | |
Shape | Customized (block,disc,Cylinder, Bar, Ring,Countersunk, Segment, hook, cup, Trapezoid, Irregular shapes ,etc) | |
Performance | Customised (N33 N35 N38 N40 N42 N45 N48 N50 N52 …...) | |
Coating | Customised (Zn, Ni-Cu-Ni, Ni, Gold, Silver, Copper, Epoxy, Chrome, etc) | |
Size tolerance | ±0.05mm for diamater /thickness, ±0.1mm for width/ length | |
Magnetization | Thickness Magnetized, Axially Magnetized, Diametrally Magnetized, Multi-poles magnetized, Radial Magnetized. (Customzied specific requirements magnetized) | |
Max. Working Temperature | Grade | Max. Operating Temperatures |
N35-N52 | 80°C (176°F) | |
33M- 48M | 100°C (212°F) | |
33H-48H | 120°C (248°F) | |
30SH-45SH | 150°C (302°F) | |
30UH-40UH | 180°C (356°F) | |
28EH-38EH | 200°C (392°F) | |
28AH-35AH | 220°C (428°F) | |
Applications | Neodymium(NdFeB) Magnet are widely used in many fields, such as motors, sensors, microphones, wind turbines, wind generators, printer, switchboard, packing box , loudspeakers, magnetic separation, magnetic hooks, magnetic holder, magnetic chuck, ect. |
In order to quote you the best price, please provide us the following informations.
Shape | Block/Rectangle/Square | Disc/Round/Cylinder | Ring/Countersunk |
Dimension | L (?) x W(? ) xT(?) | D(?) x T(?) | OD(?) x ID(?) x T(?) |
For other shapes,please tell more in details or drawing would be much appreciated. | |||
Coating | Zn, Nickel, Ni-Cu-Ni, Epoxy, Au, Silver or other? | ||
Working Temperature | Normal or High temperature? |

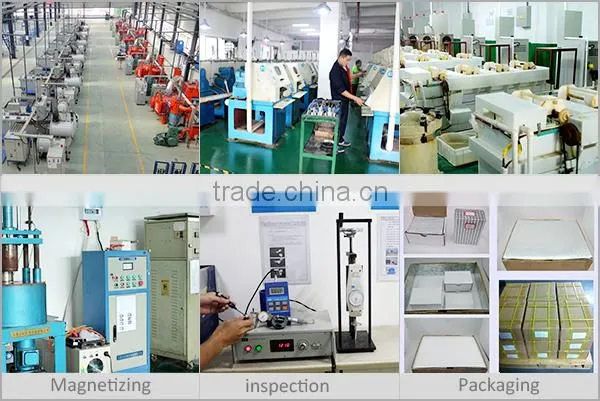

1.We are a professional magnet manufacturer since 2006. Our plating factory is the benchmark in the Shenzhen
NdFeB industry.
2. No returned goods for five years in Europe market.
3. We provide magnets for a dozen of Fortune Global 500 enterprises such as Apple, Samsung, Lenovo etc.
4. In Europe market, 80% permanent magnets used for range hood are from AIM Magnet Co., Ltd.
5.Our company is the main supplier of American top wine box.
6.With rich exporting experiences with neodymium magnets, we build supply chain to offer neodymium magnets
with professional service.
