carbide insert for cnc machine/ cnc machine tools accessories/ lathe machine tools
- 1000000 Piece / Pieces per Month
- Shanghai Shenzhen
Product Details
| Place of Origin: | Sichuan, China | Brand Name: | Santon | Model Number: | ISO standard, also can be customized |
Product Description
carbide insert for cnc machine/ cnc machine tools accessories/ lathe machine tools
Brief Introduction:
Chengdu Santon Cemented Carbide Co., Ltd is a professional private company, which consists of producing, selling and developing of nonferrous metal material such as cemented carbide and tungsten and molybdenum products, containing special inserts,brazed tips, cutting tools, also non-standard cemented carbide inserts.
Main products:
Turning insert, milling insert, threading insert, grooving insert, aluminum insert, carbide endmill,etc. Such as:CNMM,CNMG,CCMW,CCMT,DNMA,DNMG,DCMW,DCMT,VNMG,VBMT,WNMG,WXMT,WCMT,SPUN,SNMA,SNMM,SCMT,LNMG,RNMA,RNMM,RNMG,RPMW,RPMT,KNUX,APKT,TNMA,TNMM,TNMG,TCMT,TPMT,etc.
Advantages:
1.Made from 100% virgin raw material.
duced with advanced equipments and perfect workmanship.
3.All products go through in-process and final inspection.
4.Stable and continuous production ability.
Grade & Application:
| Grade | Density(g/cm³) | TRS(n/mm²) | HRA | Performance & Applications |
| ST2030 | 12.6 | 1950 | 91.5 | Rough turning,milling,planning and deep-drilling of carbon steel,cast steel,manganese steel ans alloy steel. |
| ST2035 | 12.7 | 2220 | 91 | A versatile grade, high red hardness,strength and resistance to impact and thermal shocking. Rough and strong cutting steel and cast steel. |
| YT15 | 11.3 | 1560 | 92.5 | Semi-finishing of the medium chip section of steel, cast steel and alloy steel or small chip sections. |
| YT5 | 12.9 | 2000 | 90.4 | Best strength and high impact & shock resistance, suit for rough turning and semi-finishing of carbon sttel and alloy steel(including forged steel parts,stamped parts and cast iron surfaces). |
| YG6A | 14.9 | 1880 | 92.8 | High wear resistance & wear resistance. Semi-finishing of chilled cast irons, nonferrous metals & alloys;semi-finishing and finishing of hardened steel,alloy steel. |
| YG813 | 14.4 | 2200 | 92 | Optimum wear resistance,high bending stength and high resistance to bonding. Machining of refractory alloys,stainless steel and high manganese steel,etc. |
| YW1 | 13.4 | 1700 | 92.8 | High red hardness, resistant to impact load. A good grade for general purposes. Machining of ordinary steel,cast irons and hard to machine materials such as refractory steel,manganese sttel and stainless steel. |
| YW2 | 13.3 | 1900 | 91.5 | High wear resistance, strength comparatively higher and resistant to high impact load. Roughing and medium machining of ordinary steel,cast irons as well as refractory steel, manganese steel, stainless steel and advanced alloy steel. |
Business license:
Certificate:
Packaging:

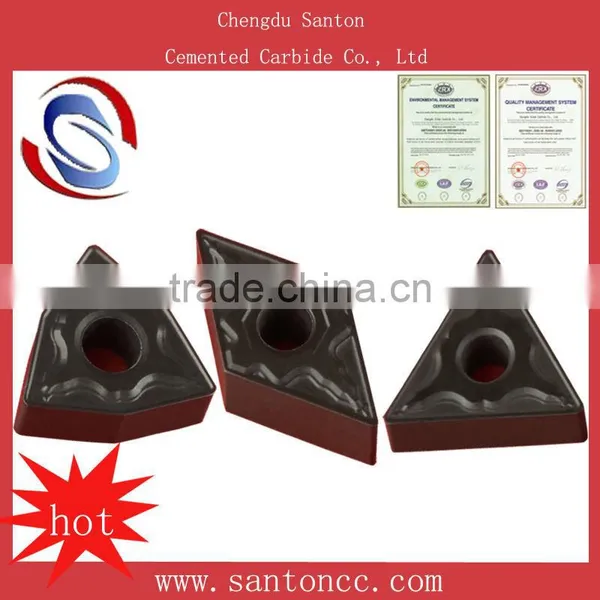

TNMG turning insert:
Endmill insert
Milling insert
Welding insert:
