E0396 Haigint high pressure water misting pump for cleaner

       Haigint high pressure water misting        pump for cleaner

Haigint: http://mistingcooling.en.china.cn/productlist.html

Features of misting pump system

The misting pump can be applied for various functions, such as cooling ,humidfying, landscaping dedusting, lowering the temperature ,especiallly for chemical spraying and seed raising in the field of Agriculture  . The following is the distinguishing feature of the misting system:

Moist fog: The high pressure misting system can produce 5 billion droplets. the thread of the drop is 3~10um,which  looks  like mist covering mountain, forming water vapor and  targeting the excellent humidification and cooling effect .

Energy saving: Misting one kilogram water just need 6w electrical energy ,which consumes only 1/100 of the  traditional electric steam humidifier or the 1/10of the centrifugal humididfier.

Reliability: The high misting pump apply the newest technology into the process of producing . It can work for 24 hours sustainablely without destorying other parts like the misting nozzles ,fittings,and pipes,even in the air environment of high

concentrations of dust.

Environment health: The high pressure misting system use the non-circulatiuon water so that there is no threat of  the reproduction of bacteria.

Volume spraying: high  sprayer distribution and easily adjustable.

Pump specification

Photos	Item NO.	Flow(LPM)	Power	Voltage	Frequency	pressure(Bar)	Pressure(PSI)	size(cm)	weight(kg)
	HY- HPMP#1	0.2	0.12	100~240v	50/60HZ	60	900	38*18*24	4.5
	HY- HPMP#2	1	0.3	220/110v	50/60HZ	60	900	38*18*24	14.5
	HY- HPMP#3	2	0.75	220/110v	50/60HZ	60	900	47*25*32	23.5
	HY- HPMP#4	3	0.75	220/110v	50/60HZ	60	900	47*25*32	23.5
	HY- HPMP#5	7	1.8	220/110v	50/60HZ	60	900	70*36*3	41
large scale	HY- HPMP#6	8	1.5	380v	50HZ	70	1000	70*40*100	85
large scale	HY- HPMP#7	14	202	380v	50HZ	70	1000	70*40*100	90
large scale	HY- HPMP#8	18	3	380v	50HZ	70	1000	70*40*100	95

 The whole set of the equipment includes:

misting nozzle :  0.15mm,0.20mm,0.30mm,0.40mm,0.50mm

                             high pressure

                             Thread:10/24unc

                              washable filter

                              brasss with nickel plated

                              stainless steel orifice

misting fitting:

cross connector,slip-lock union,slip-lock male connector,slip-lock Tee connector,elbow connector,etc( 1/4",3/8",10/24unc)

tubing: nylon tubing and stainless steel tubing

tubing cutter,tubing clamp, filter,nozzle plug.

Other Application

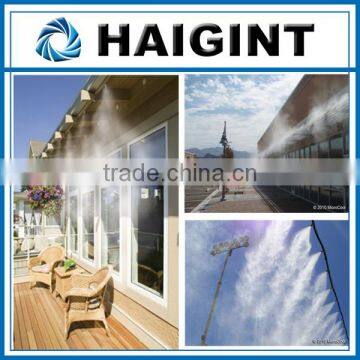

1. Cooling

 Residential cooling, outdoor cooling, commercial place cooling

  2. Humidification

Industrial, agricultural and horticultural: green house, garden, livestock farming

 3. Dedusting and Deodorization

 Industry process, bulk powder, cement plant, foundry dust, fly ash control, waste transfer, recycling process

4. Insect Control

 garden or agriculture , kill the insect effenciently.

Product Show

About producing,packing,shippi

Haigint  ,a company professional in manufacturing sprayer products for daily use,such as the misting fitting,misting fan,misting pump,misting tubing,PE tubing,misting ring ,etc.we have the first-level technology in this field.our products can be used for workshop outdoors,greenhouse,patio,restaurant,etc.we guarantee the quality of our product and we take the client's interest into our first consideration .

FAQ

1. How to Order?

 Normally the customer can order our products by Alibaba platform or contact HAIGINT representative by Email. After receiving your message, our sales will confirm with you about the specification or other required things, then HAIGINT will send an official invoice to you via mail, which will include the details of your order and bank information named  HAIGINT with a stamp and signed by manager.

 2. How to Pay?

 We accept the payment via ESCROW, T/T (bank transfer) and Western Union, even Paypal or Credit card. Please inquire us about the details in advance.

In 2-4 working days, the payment will be transferred into our account. You can order the product directly from our web store : http://mistingcooling.en.china.cn/productlist.html

3. How to Deliver?After paying, you will know a delivery time from our official invoice, the package will be sent or delivered within schemed time. HAIGINT often arrange the delivery via DHL, UPS, China Post or EMS. DHL international express is our preferred method.

 4. How to track the order?After delivered, we will enter a tracking number on Alibaba platform; you will find and track the status of your package, or send a tracking number to your mailbox, you can track it directly at the related web or contact us, we are delighted to help check it for you .

5. How to return?

 Acceptable to the returns when you receive the products because of the following reasons.

 1. Product was damaged, lost or missed

 2. Different specification from required one.

Before ordering, please select a suitable product for yourself. As you know, all of us don't expect the return. If your return is the result of our error (you received an incorrect or defective item, etc.) we will cover the cost of return shipping.  Please note that you are responsible for the cost of shipping for returns not due to our error.

 6. Do you have a quality guarantee or warranty?

 Yes, all our products are covered by a 12-month warranty below ordinary environment.

 We choose products to sell based on their excellent designs and proven hardware reliability. So the quality is guaranteed.

 If you have any difficulties whatsoever with the products, or you are dissatisfied for whatever reason, you can contact us and we will solve the issue in an open, honest and responsible way.

 7How about the sample charge?

 1.sample charge: according to your design,sampling time :3-6days

2.sample charge:free for existing samples.sampling time:1 day

Why Choose Haigint?

1.  30 years of industry experience with leading technology . All components only prefer the international line brands with professional quality guarantee.

2.  7x24hous perfect after-sales service. Core data for remote monitoring, predict all the possible problems, and solve it in advance.

3.  10 years experience in foreign trade export, communicating with international customers about quality of our product professionally. And proficient in the whlole process of customs declaration, inspection declaration, export certification, ocean shipping .

4  .The perfect test team,  quality management team and r&d team.

5.  8 years experience in oversea construction , engineering cases throughout Europe and southeast Asia.

6.  Professional quality ensure the precious accomplishment of every link of engineering.

If you are interested in our products, kindly send us your email to get a best price and more details,and we will do everything possible to satisfy you.
