Home > Products > Backhoe Loader > Agricultural AS500 50HP 4x4 mini backhoe loader with joystick and AC

Agricultural AS500 50HP 4x4 mini backhoe loader with joystick and AC

FOB Price

USD $14,500 - $15,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Brand Name:	ANSION	Model Number:	AS500
Place of Origin:	Shandong, China	Type:	Backhoe Loader	Moving Type:	Wheel Loader
Dimension(Long * Breadth * High):	510019602900 mm	Rated Load:	1600kg	Certification:	ISO
Warranty:	12 Months	After-sales Service Provided:	Engineers available to service machinery overseas

4x4 50HP MINI BACKHOE LOADER AS500

Main Specification

Total Length		mm	5100
Total Height		mm	2900
Total Width		mm	1960
Total Operating Weight		kg	5400
Backhoe Parameter	Rated Backhoe Bucket Capacity	m3	0.2
	Max. Digging Depth	mm	3400
	Max. Digging Height	mm	5000
	Max. Digging Radius	mm	4600
	Turning Angle of Movable Arm	°	180
Loading Parameter	Rise Height	mm	3700
	Discharge Height	mm	2700
	Min. Turning Radius	mm	4800
	Discharge Distance	mm	1000
	Rated bucket capacity	M3	0.8
	Rated Loading Weight	kg	1600
	Rise Time of Movable Arm	s	3.5
	Fall Time of Movable Arm	s	2.5
	Comprehensive Time	s	7

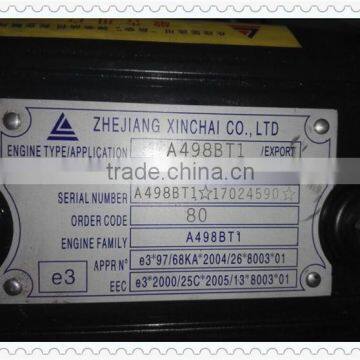

Engine Model		Xinchai
Rated Power of Engine		KW	36.8
Work Pressure		Mpa	16~18
Max. Grade Ability		%	25
Walking Speed		km/h	18~28
Min. Ground Clearance		mm	260
Wheel Base		mm	2000
Tread		mm	1530
Tire model		mm	20.5-16

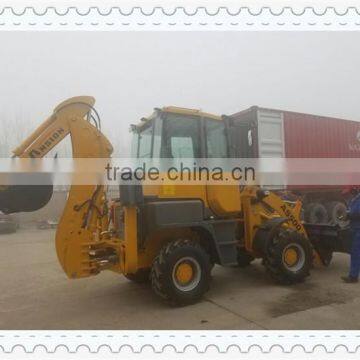

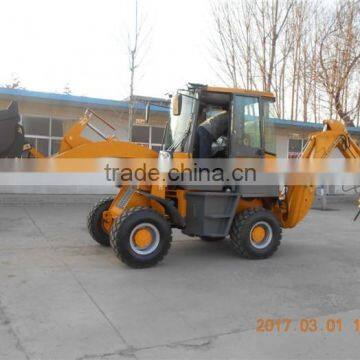

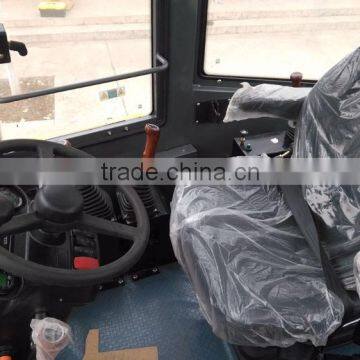

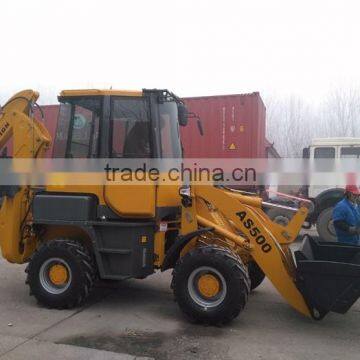

Real Picutres Show

Packaging & Shipping

Qingzhou Ansion Machinery Co., Ltd.: Contact nameKavy Guo
Chat Now; AddressNo.85 , Shichang Road,Qingzhou Weifang,Shandong
