Home > Products > PTFE bearing guide strip > 40% Bronze filled PTFE bearing guide strip

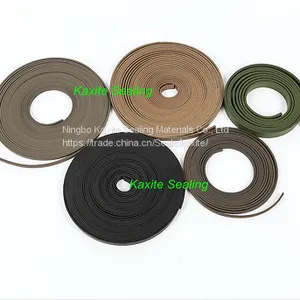

40% Bronze filled PTFE bearing guide strip
- 10000 Bag / Bags per Month
- Ningbo or Shanghai
- T/T PayPal Other
- 8 days
Product Details
| Place of Origin: | China | Model Number: | KXT PG120 | Type: | Seals |
Product Description
Style KXT PG120 40% Bronze filled PTFE bearing guide strip
40% Bronze filled PTFE bearing guide strip owing to the low friction of fluorocarbon resin (PTFE), corrosion resistance, thermal stability and other excellent properties, has been widely used in friction, sealing parts, especially in the corrosive medium, and the problem is often difficult to be solved by general metal and other non-metallic materials. The elasticity and toughness of fluorocarbon resin to become excellent sealing material, especially when it is further through a variety of filling modification and some aromatic resin composite plastic alloy, can obtain the higher bearing capacity, thermal mechanical stability, abrasion resistance and the limit PV value.
40% Bronze filled PTFE bearing guide strip plays a guiding role, in order to prevent the cylinder and piston rod wear, highly wear-resistant, low friction, heat resistant, resistant to chemical corrosion,allow any foreign body is embedded in the guide wear ring, to prevent the particles on the cylinder and seal loss, can absorb vibration performance, and has excellent wear resistance and good dry dynamic characteristics
Material: PTFE + copper powder, phenolic cloth, pitch
The main features: guide the role and absorption of vibration performance, and has excellent wear
resistance and good performance of the dry line. Operating temperature: the general use of the
temperature range of -40 ~ 120℃
Sizes:
Thickness (mm) | Length (mm) | Width (mm) | Color |
1 | 55 | 3.2-60 | Black Brown |
1.5 | 35 | ||
2 | 27 | ||
2.5 | 22 | ||
3 | 18 | ||
4 | 13 | ||
5 | 10 | ||
6 | 8 |
Data sheet:
Testing Item | Unite item | Standards |
Tensil strength | Mpa | ≥15 |
Elongation at break | % | ≥150 |
Standard denstity | g/cm3 | 2.4-3.25 |
Hardness Shore | ≥70 | |
Coefficient of friction | ≤0.04 | |
Amount of wear | mg | ≤0.9 |
