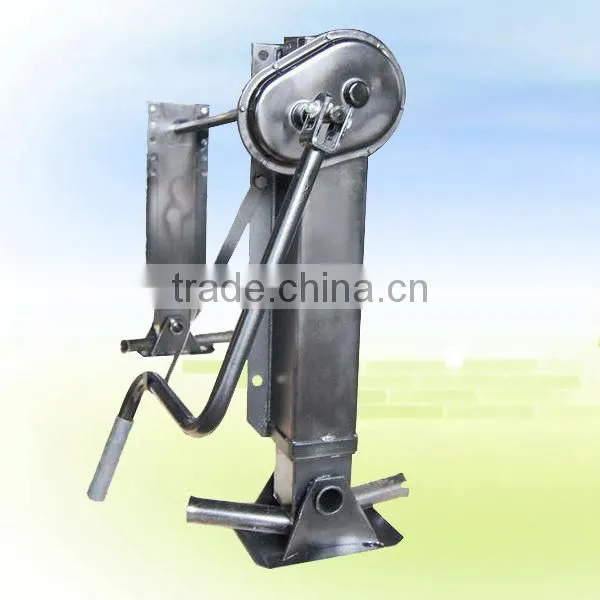

China ISO Outside Gear Steel 28 Ton Jost Semi-trailer Landing Leg
- 2000 Pair / Pairs per Month
- Qingdao Xiamen
- T/T Credit Card
You May Like
Product Details
OEM No. | E100 | Max Payload | 80T Steel 28 Ton Jost Semi-trailer Landing Leg | |
Size | Speed: Higher 9, Lower 0.9(mm) | Place of Origin | Fujian, China | |
Brand Name | WONDEE 28 Ton Jost Semi-trailer Landing Leg | Model Number | LGJ28-B0101T |
28 Ton Jost Semi-trailer Landing Leg Package: By Pallet; By Wooden Case; 200 Pairs in 1X20FCL.
Product Description
China ISO Outside Gear Steel 28 Ton Jost Semi-trailer Landing Leg Information: |
Dimention of LGH28-A0101T: |
Landing Leg Capacity: 28T |
Static Load: 80T Jost Semi-trailer Landing Leg |
Speed: Higher 9, Lower 0.9 |
Lift/Height: 430/830; 480/8480 |
Wondee Autoparts Landing Gear Factory supplies landing foot for semi-trailers & RV semi-trailers. |
Jost Landing Leg Box: Inside & Outside |
Operation: Single side & Double side |
Lifting Capacity: 25 ton ~ 35 ton. |
Static Load: 50 ton ~ 90ton |
Gear Food Type: T, A, S, G, R |
Out put: 80,000 pairs yearly |
Semi-trailer Landing Leg Dimension: |
Number | Capacity | Static Load | Speed | Lift | Height | |
kg | kg | Higher | Lower | mm | mm | |
LGJ28-B0201T | 28000 | 80000 | 9 | 0.9 | 430 | 830 |
LGJ28-B0202T | 28000 | 80000 | 9 | 0.9 | 480 | 880 |
Jost Landing Leg Specifications ( Just for Reference ): |
Reliable, high-quality seal keeps water out and extends life |
Unique tapered backplate for enhanced durability |
Gearbox with low-temperature premium lube provides easy cranking and reduces component wear; protection from -65ºF to 225ºF |
Low Speed Gear - 38.6 turns per inch |
High Speed Gear - 4.5 turns per inch |
Massive, 5-inch upper housing with 80,000 psi minimum yield and retractable tube; maintains strength while saving weight. Lower leg is 12% larger than standard-duty landing gear |
Three-gear train gearbox with exclusive Man-Saver gear ratios handles normal loads with 40% less effort |
Exceeds all AAR M-931 and all TTMA RP-4 performance specifications. |
Includes an industry leading 5-year warranty |
Landing Leg Function & Attention ( Just for Reference ) : |
1.The device is use for semi-trailer and special trailers. |
2.It lift and support trailer when it is separated from tractor. |
3.It's also in use for all sorts of trucks that they are secured to work as jack. |
4.The quality is up to the standard of American ABS specification. |
5.Landing Gear has slow and fast two speed. Please use slow speed when loading. It is easy to operate. Do not use fast speed. It is possible to injure landing gear. |
Landing Leg Payment & Terms: |
MOQ: 10 Pairs Landing Leg |
FOB Price: $120 ~ ~ $160 Per Pair Semi-trailer Landing Leg |
Payment Terms: L/C, T/T, Western Union |
Supply Capacity: 2000 Pairs per Month |
Delivery Time: About 20 Working Days |
Delivery Port: Qingdao, Xiamen |
Package: By Pallet; By Wooden Case; 200 Pairs Jost Landing Leg in 1X20FCL. |
Landing Leg Drawings ( Just for Reference ) : |
The Detail Photos about Jost Landing Leg :
Besides Landing Leg, WONDEE AUTOPARTS also Supply LEAF SPRING,SEMI TRAILER, WHEEL RIM,LANDING GEAR,SUSPENSION ... .... ...
Company Profile

Xiamen Wondee Autoparts Co., Ltd (CHINA), has been supplying a wide variety of semi-trailers, trucks and trailer components including leaf spring, wheel rim, air suspension, spring steel flat bar, axle, suspension, bogie, landing gear, turntable, fifth wheel, king pin, air chamber, slack adjuster, twist lock and so on.
Our TOP 5 most attractive export products are:
1. SEMI-TRAILER
Popular trailers include skeletal container semi-trailers, flatbed semi-trailers, fuel tank semi-trailers, low bed semi-trailers, van semi-trailers, logging semi-trailers. We supply complete and partial CKD package for semi-trailers also.
2. LEAF SPRING
We are the largest leaf spring manufacturer group in Asia with an annual output 200,000 tons, have passed ISO/TS16949 certificate in 2006. We engage in the production of all kinds of automobile spring, from small trailers, pickup vehicles to heavy duty trucks, from conventional to parabolic, from OEM to after-market. Thickness from 6mm to 50mm, width from 44.5mm to 125mm. Popular material grades include SUP7, SUP9 and SUP11A. Popular section sizes include 44.5*6, 50*8, 57*8, 60*12, 70*9, 80*13, 90*16, 100*12, 100*38, 100*50, 120*20.
3. WHEEL RIM
Tube wheel from 5.5-16 to 8.5-24; tubeless wheel rim from 6.0*17.5 to 11.75 * 22.5 for all kinds of vehicles. Popular size is 7.5-20, 8.5-24, 9.00*22.5, 11.75*22.5.
4. SPRING STEEL FLAT BAR
Popular material grades include SUP7, SUP9 and SUP11A. Popular section sizes include 44.5*6, 50*8, 57*8, 60*12, 70*9, 80*13, 90*16, 100*12, 100*38, 100*50, 120*20.
5. AIR SUSPENSION
Popular type is 3-axle liftable air suspension for semi-trailer.
With the experienced R&D staff, advanced production equipments, strict quality control system, our factories have passed ISO/TS16949 international standards and have been approved by Xiamen Municipal Trade Development Bureau to be in the range of "Private Scientific & Technological Enterprise". Meanwhile, reasonable price, qualified goods, PPAC order service, all these advantages make WONDEE famous and prestigious all over the world.
WONDEE have acquired high reputations from our customers both in local automobile industry and in oversea markets. During the past years, WONDEE products are well sold to Malaysia Port Kelang, Thailand Bangkok, Saudi Dammam, Nigeria Lagos, Tanzania Darlassalam, Brazil Santos, USA Texas, Germany Hamburg and so on. It has been found that, WONDEE products are especially suitable for bad roads and over-load conditions transportation, for example, in the ore mining area of Africa, in the mountain areas of Latin America, in the oil-output region of Mideast, in the coal mining areas in China Fujian.
To maximize customer satisfaction, WONDEE put not only great attention to the superior product quality and good cost performance, but also has been building up a complete and satisfied service principle, called as "PPAC": Prompt---Pre-act---Accurate---Considerate.
Presently, the people of WONDEE offer our warm welcome to the clients at home and abroad to visit our factory in coming future for the greater cooperation based on long-term "win-win" development.
Sincerely
Yours
Ms Amy Ai
