10hp water pump diesel engine
- 3000 Unit / Units per Month
- QINGDAO
- T/T Credit Card
Product Details
Condition: | New | Usage: | Automobile | Fuel: | Diesel |
Stroke: | 4 Stroke | Cylinder: | Single Cylinder | Cold Style: | Other, Water-cooled |
Start: | Other, Hand Crank start or electric start | Place of Origin: | Shandong, China | Brand Name: | HR |
Model Number: | 190 | Dimension(L*W*H): | 670x400x560mm | Weight: | 95kgs |
Certification: | ISO9001 | Warranty: | 1 Year | After-sales Service Provided: | No overseas service provided |
Packaging Details
Plywood box
Product Description

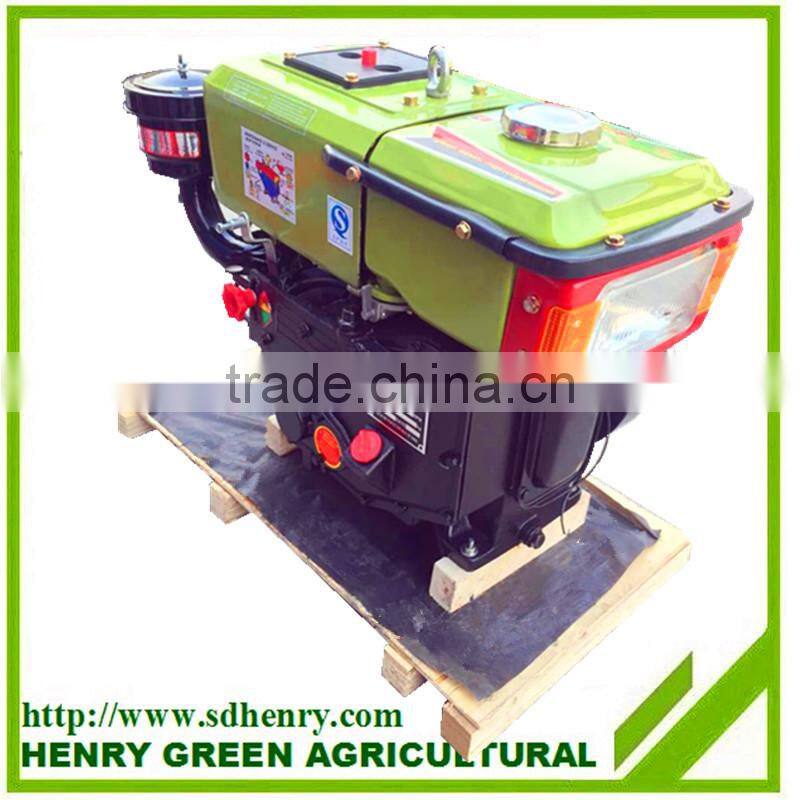

10hp water pump diesel engine
1.wholly new designed outer appearance, which makes the engine more beautiful
2.large capacity fuel tank , which makes the engine works longer
3.single balance axle, the engines works more stable
4.the specific fuel is low , the engine works more economically
5.excellent start ability, easy to start
6.oil bath air-filter makes the engine more suitable to the bad circumstance
7.It is a popular matched Engines at present ,widely use in different farm fields.
8.Main application Small general sets ,air-compressor, inland ships , engineering machinery and processing machines for agricultural products and sideline products (eg. Thresher, rice mill , flour milling machine , fodder grinder)
MODEL 175-190 (6-10HP)
Model | R175A | R180 | R185 | R190 |
TYPE | Single cylinder, horizontal , 4 stroke ,water cooling. | |||
Combustion system | Precombustion chamber | Swirl combustion chamber | ||
Bore x stroke(mm) | 75 x 80 | 80 x 80 | 85 x 85 | 90 x 90 |
Total Displacement(L) | 0.353 | 0.402 | 0.510 | 0.573 |
Rated Output(kw/rpm) | 4.41 | 5.15 | 5.88 | 7.0 |
Max. Output(kw/rpm) | 4.85 | 5.67 | 6.46 | 7.92 |
Rated speed(r/min) | 2200 | 2200 | 2300 | 2300 |
Specific Fuel(g/kw.h) | Less than or equal to 280.2 | Less than or equal to 278.80 | Less than or equal to 275 | Less than or equal to 275 |
Cooling system consumption | Evaporative | Evaporative | Evaporative | Evaporative |
Lubrication method | Pressure/splash | Pressure/splash | Pressure/splash | Pressure /splash |
Starting method | Hand cranking electric cranking | Hand cranking Electric cranking | Hand cranking Electric cranking | Hand cranking Electric cranking |
Net weight (kg) | 68 | 72 | 95 | 95 |
Overall dimension | 435*245*332mm | 625*341*460mm | 740*400*560mm | 670*400*560mm |
Main Feature
1.Single cylinder diesel engine power from 4.41kw(6hp) – 23.10kw(32hp) The main model :165/170/175/180/185/190/192/195/196 /197/1100/1105/1110/1115 /25/28/32
2.Diesel engine ,compact ,agile ,light ,reliable, convenient , Excellent quality
dly use in the mini-tractor , transportation vehicle ,Small general sets ,air-compressor, inland river ships , engineering machinery and processing machines for agricultural products and sideline products (eg. Thresher, rice mill , flour milling machine , fodder grinder) and so on.
4.Equipped with lighting equipment, traveling at night ,with walking tractor can do short transportation.
5.with quickly coupling ,easy to change farming implements
6.The colors can optional as request after the quantity more than 100sets
7.Every year sell more than 150000sets ,the products are welcome by the market in china and oversea market.

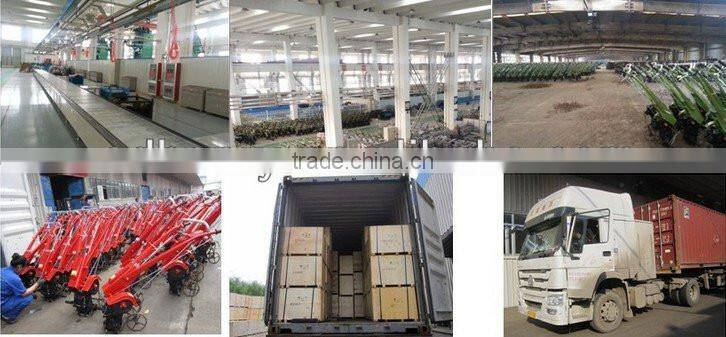

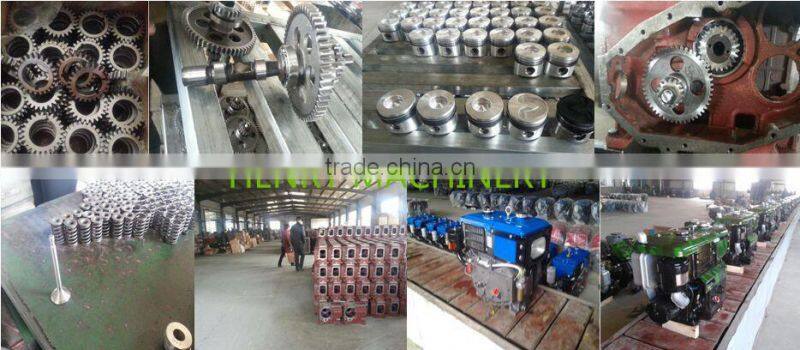

FACTORY
WHY CHOOSE US
1. Professional supply with certification: CCC, ISO and so on
2. Perfect quality program. 100% test before delivery for every engine.
3. One year guarantee.
4. OEM service.
5. Creative design team and first class quality equipments.
6. Design and Producing be customized.
7. Flexible payment. T/T L/C D/P,WESTERN UNION be accept.
Company Profile
![](https://img11.fr-trading.com/3/1_844_55324_220_220.jpg)
Qingdao Henry Industry Co.,Ltd., is one of the leading manufacturer in Shandong china for agricultural work products and industry protect products. its total assets of RMB 1 billion , employee over 1500.
The farm machinery main including : Single cylinder diesel engine, two wheel tractor ,mini tillers(diesel engine and gasoline engine), four wheel tractor,rice planter and harvester machinery, and kinds of farm Acessories and so on.
Tire products are including agriculture tire ,industrial tire ,implement tire ,skid steer tire rubber wheel and motorcycle tire .
Kinds of Gloves,especially for RESISTANT GLOVES .
In the period of development, the company is keeping on improving the internal management on the basis of market criteria, and implementing technical creation. It has completely passed the international quality system certificates, including ISO9001, QS9000, DOT & CE in compliance with American &European automobile industry standard, The products are permitted to enter international markets. exported to 70 countries & area, incl. U.S.A market and European market ,South-east Asia, Middle east, Central & South America, African, etc.
We can supply large and regular products ,and also can supply many kinds and small amount products for at home and abroad friends.
The quality and credit are our develop basis .
HENRY GREEN MACHINERY ,HENRY GREE POWER FOR HAPPY LIFE.
HIGH-QUALITY PURSUE EXCELLENT SERVICE FIRST-CLASS BRAND .
