894-387-6530 chroming starter motor

Neutral packing for starter motor

894-387-6530 chroming starter motor

Starter motor

A starter is an electric motor that turns over or "cranks" the engine to start it.

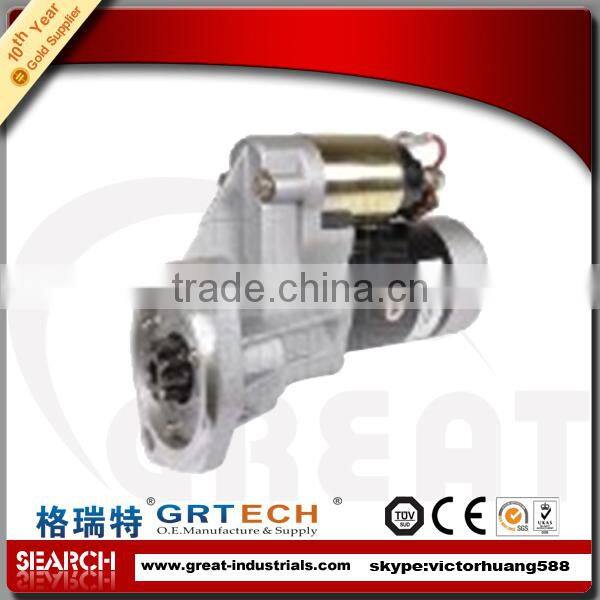

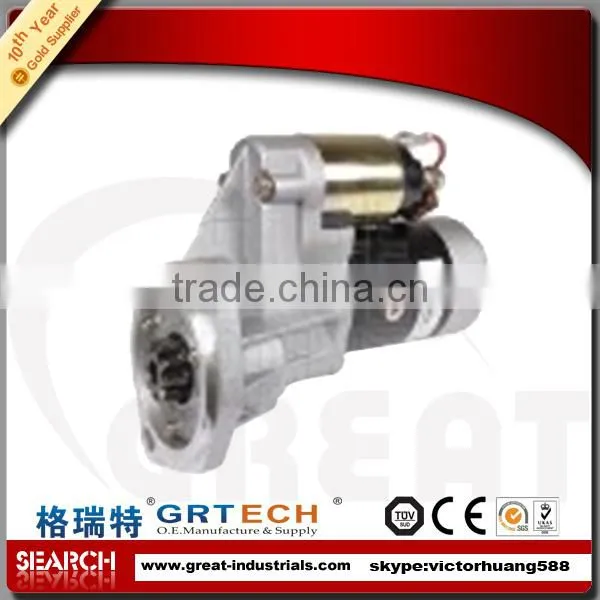

A starter consists of the very powerful DC electric motor and the starter solenoid that is usually attached to the motor (see the picture). Inside, a typical starter motor has the electric windings (coils) attached to the starter motor housing and the armature (the rotating part) that is connected through the carbon brushes in series with the windings. On the front end of the armature, there is a small gear that attached to the armature through an overrunning clutch. This part is commonly known as the Bendix.

Starter solenoid

The starter solenoid works as a powerful electric relay - when activated, it closes the electric circuit and sends the battery power to the starter motor. At the same, the starter solenoid pushes the starter gear forward to mesh with the engine flywheel. A typical starter solenoid has one small connector for the control wire (the white connector in the photo) and two large terminals: one for the positive battery cable and the other for the starter motor.

Battery cables

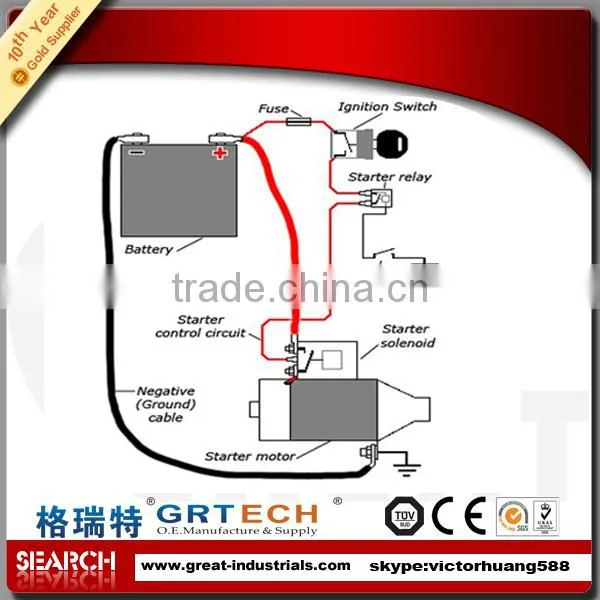

A starter motor requires a very high current to crank the engine, that's why it's connected to the battery with thick (large gauge) cables (see the diagram). The negative (ground) cable connects the "-" battery terminal to the engine cylinder block close to the starter. The positive cable connects the "+" battery terminal to the starter solenoid.

How a starting system works:

When you turn the ignition key to the Start position, the battery voltage goes through the starter control circuit and activates the starter solenoid, which in turn energizes the starter motor. At the same time, the starter solenoid pushes the starter gear forward to mesh it with the engine flywheel. The flywheel is attached to the engine crankshaft. The starter motor spins, turning the engine crankshaft allowing the engine to start.

JIANGSU GREAT INDUSTRIALS GROUP. CORP

1994, Yancheng Great Auto Parts Corp.Ltd established, producing clutch and brake spare part.

2003, Yancheng Great Foreign Trade Corp.Ltd established, mainly exporting clutch and brake spare parts,automotive belts,shock,filter,spark plug etc to International Market.

2010, Jiangsu Great Industrials Group Corp.Ltd established and joined with 5 factories and 3 branch companies in China,Dubai,Iran producing and supplying clutch system ,brake system parts,belts, filter, gasket and shock absorbers worldwide for both OEM car makers and after market.

Our products are certificated by TS16949, and sell well in the world market. We can make as per clients sample, design and packing requirements.
