Screw Bushing

FOB Price

USD $0.01 - $3 / Piece

500 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Any Chinese Port
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Jiangxi, China	Brand Name:	GJ	Model Number:	As Standard
Type:	Sleeve	Material:	Alloy Copper

Packaging Details

Rust-proof paper / Carton box / PP bag

Product Description

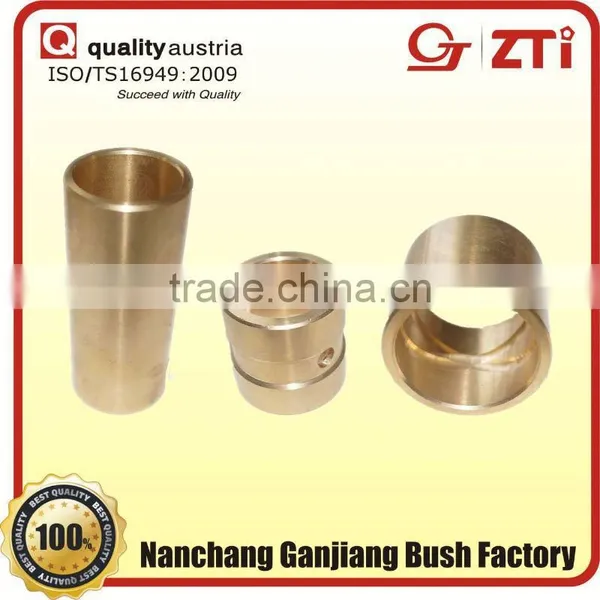

Screw Bushing

Bimetal Bushing is composed of high quality low carbon steel and bronze with the characters of wear high speed, high load capacity, very compact dimensions, low wear. It is most suitable for petrol engines, diesel engines, civil engineering equipment, Lift,air-conditioning and gear boxes, speed boxes, industrial vehicles, steel plate springs, joints etc.

Details For JF Series For Your Reference

	JF800	JF810	JF820	JF830	JF840	JF850	JF800G
Material	CuPb10Sn10	CuPb24Sn4	CuPb24Sn1	AlSn20Cu	CuPb30	CuSn6.5P0.1	CuPb10Sn10 +Graphite
Alloy hardness (HB)	60~90	45~70	40~60	30~40	30-45	60~90	60~90
Operating Temperature ( °C )	-40~260	-50~200	-50~200	-40~150	-40~280	-40~260	-40~260
Coefficient of friction	≤0.12	≤0.12	≤0.12	≤0.17	≤0.16	≤0.14	≤0.12
Corresponding International Code	SAE-797 JIS-LBC3 GGB-SY GLYCO-66 FEDERAL MOGUL-HF2 DAIDO-L10 ACL-F100 DIN-CuPb10Sn	SAE-799 JIS-LBC6 GLYCO-68 DAIDO-L23 ACL-F250	SAE-49 ACL-F780	SAE-783 JIS-AJL GLYCO-74 ACL-F820	SAE-48 JIS-KJ3		SAE-797 JIS-LBC3 GGB-SY GLYCO-66 FEDERAL MOGUL-HF2 DAIDO-L10 ACL-F100 DIN-CuPb10Sn
	Please contact us to get more details(PV,Load,capacity,Speed)
Certification	ISO/TS16949:2009 ISO9001:2000
Tolerance	Ø&L Min 0.02mm
Packing	Rust-proof paper / Carton box / PP bag
MOQ	500 pieces
Delivery Time	Sample: 7days Mass:15-45days
Remarking Our factory is specialized in doing OEM/ODM products according to customer's drawings or samples. Warrenty: 3 years or 50000KM (OEM Grade) 1 years (Marketing) Any RFQ, Please feel free to send your drawings( CAD, PDF ) For quotation.
