hydraulic cylinder 50 ton / 50 ton hydraulic cylinder

Specifications

50 ton hydraulic cylinder
1.Hallite/Merkel/NOK/Parker
2.ISO/TS16949,ABS,API,AQA,etc
3.18 years manufacturer
4.OEM&ODM

We are one of the biggest hydraulic cylinder manufacturer in China, specialized in design, R & D and manufacturing of hydraulic machinery products etc, with its annual production capaciy of 200000 sets.My company with 600 employees in it ,covers an area of 180000 square meters.There are 700 sets of mnufacturing equipment .





1.hydraulic cylinder drawing and parameter

Features	customer hydraulic cylinder
Bore Diameter	2'-60'/50-1500mm
Rod Diameter	1' - 60'/25 -1500 mm
Wall Thickness	0.1'-4'/3-100 mm
Max Stroke	366'/9280 mm
Max Pressure	9600 psi/600 bar
Test Pressure	14500 psi/1000 bar
Material	20#,40#,45#,16Mn,27SiMn,etc
Seal Kits	Hallite,Parker,NOK,SKF,DICHTOMATIK,Trelleborg,Merkel,etc
Diamensional Accuracy	H7-H11
Bore Roughness	Ra 0.4-1.6mm
Coating	hard chrome
Purpose	Construction,metallurgical,mining,agricultural,forestry machinery,etc
OEM	Yes
MOQ	1 Piece
Certificates	ISO9001,ISO/TS16949,ABS,AQA,API,CCS,CCRI,DNV





excavator hydraulic cylinders -boom cylinder , arm cylinder , bucket cylinder

Komatsu,Cat,Hitachi,Hyundai,Kobelco,Kato,Sumitomo,Doosan,Volvo



hydraulic cylinder for oil field,marine,industry,agriculture,construction,backhoe,etc

1.Hydraulic cylinder is the most important component in hydraulic systems, it will transfer hydraulic energy into mechanical energy, and is matched with various transmission mechanism, to complete a variety of mechanical motion.

2.Hydraulic cylinder has the advantages of simple structure, large output force, stable and reliable performance, easy maintenance, wide application.



hydraulic cylinder for dump truck , trail truck,garbage truck,crane

3.Sinciput telescopic hydraulic cylinder is used in lager-tonnage sinciput hydraulic system. Together with hydraulic pump, change valve, and limit valve, it can realize the function of lifting pausing and falling. And the product can be designed and made according to the demands of customers.

4.Side-dumping telescopic hydraulic cylinder is used in large-tonnage side-dumping hydraulic system. Together with hydraulic pump, change valve, and limit valve, it can realize the function of lifting pausing and falling. And the product can be designed and made according to the demands of customers.



hydraulic cylinder for coal mine,log splitter, brush cutter,dock leveler,metallurgy

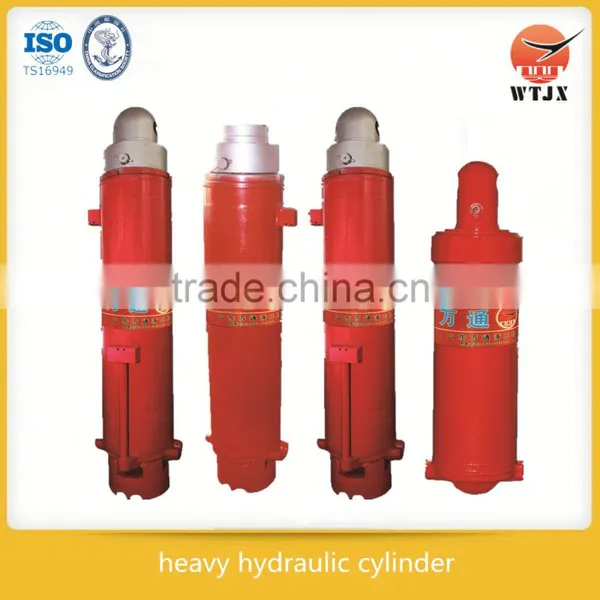

5. Single telescopic column of hydraulic support is a part which joins the beam and base, bearing the load of crown plate. It is the main load bearing part, including two forms: all-hydraulic and mechanically lengthening.

6. Double telescopic column of hydraulic support is a part which joins the beam and base, bearing the load of crown plate. It is the main load bearing part, including two forms: all-hydraulic and mechanically lengthening.

7. Hydraulic support lifting jack is the main weight-bearing element which undertakes the movement of the hydraulic support and each part. The product is mostly single telescopic, double-act, piston type hydraulic cylinder, widely used in the hydraulic support for traction, side thrust, protection and assistance, balance, support adjustment, and etc.

8. hydraulic cylinder can be used for dump truck, oil field, marine, drilling machine, industry, elevator , workover rig , mining, agriculture, industry, construction ,etc.





2.hydraulic cylinder products showcase





3.hydraulic cylinder produce line

700 sets manufacturing equipment,such as cold drawing production line ,heat treatment production line ,surface treatment production line,testing equipment,various digital-control machining equipment,gantry style linear electroplating production line.







4.hydraulic cylinder quality guarantee system



Program before Delivery

1. Trial Operation Test

2. Start-up Pressure Test

3. Pressure-Tight Test

4. Leak Test

5. Full Stroke Test

6. Buffer Test

7. Testing the Effect of Limit

8. Load Efficiency Test

9. Reliability Test

Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test.



Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities.









5.packing

 6.certificates
