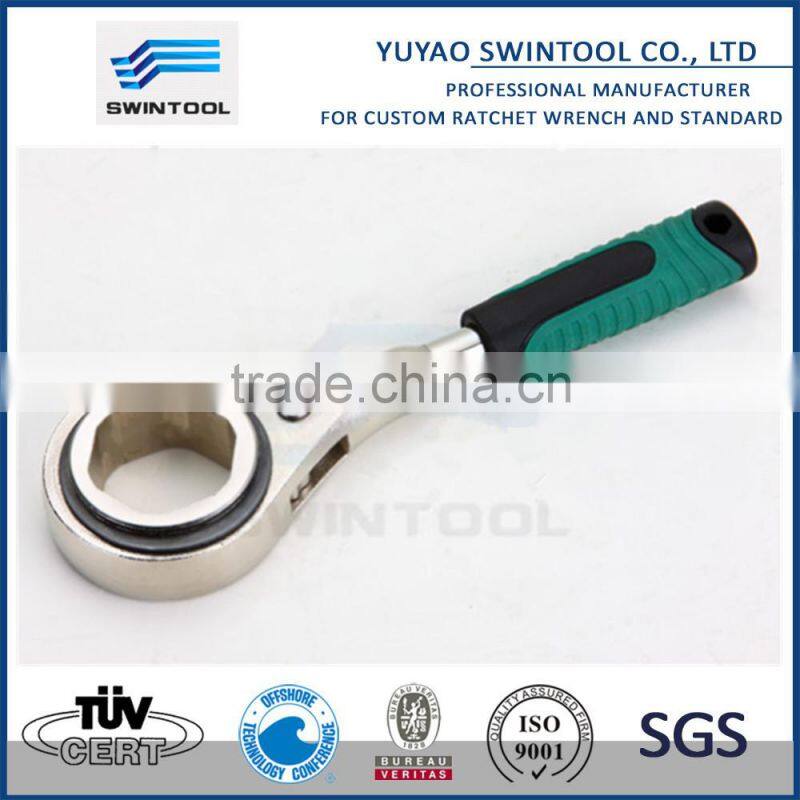

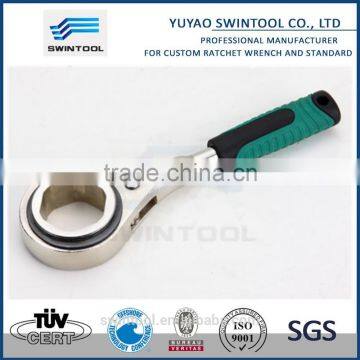

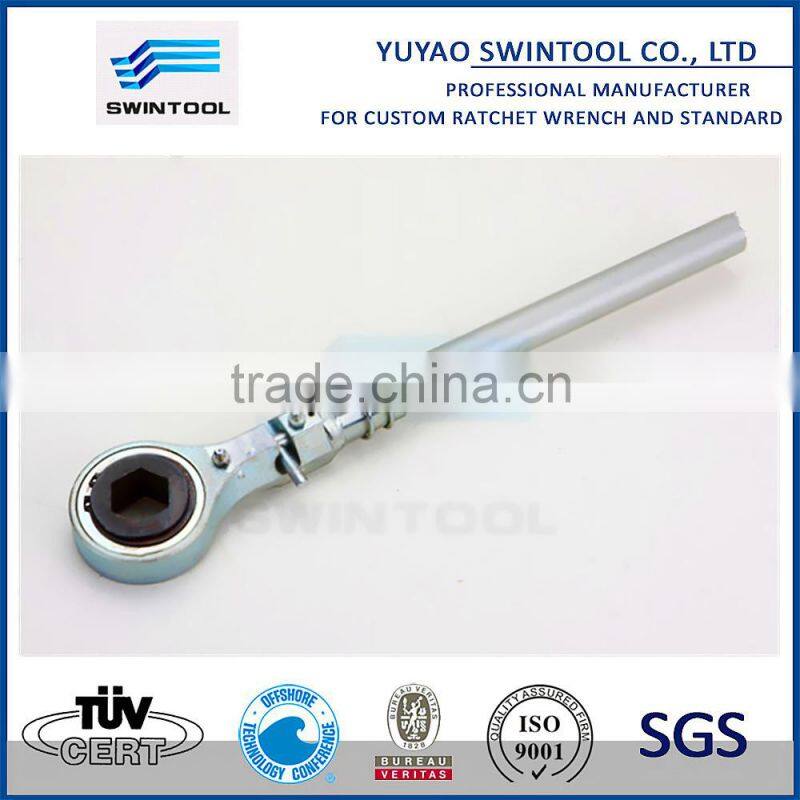

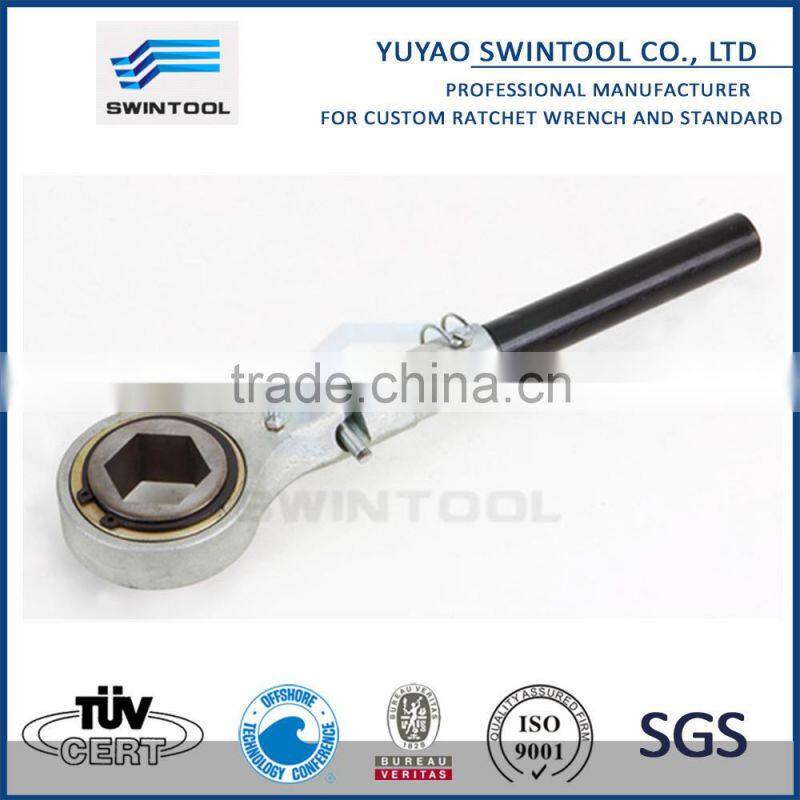

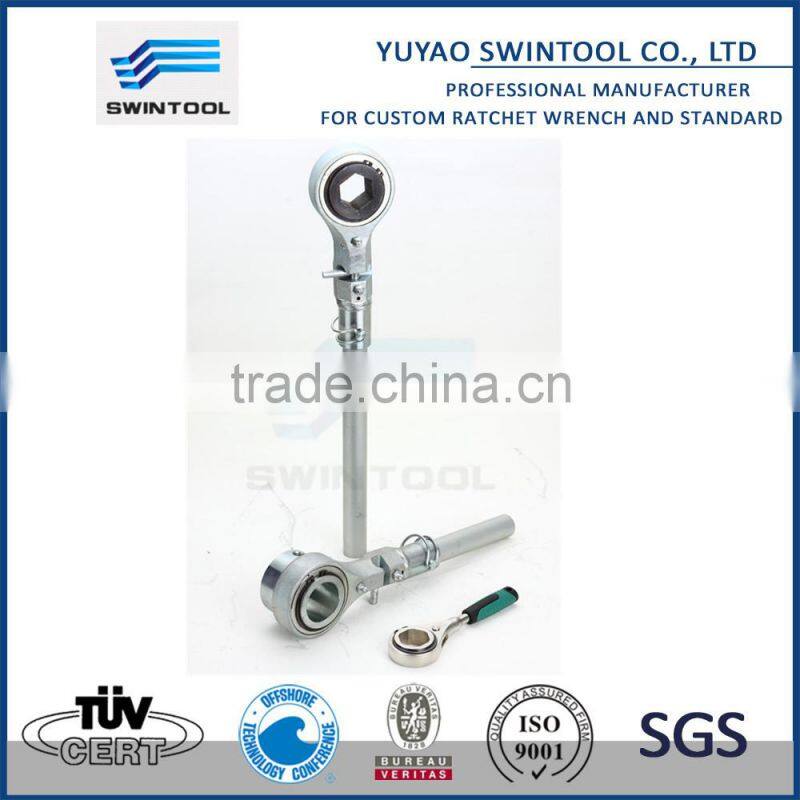

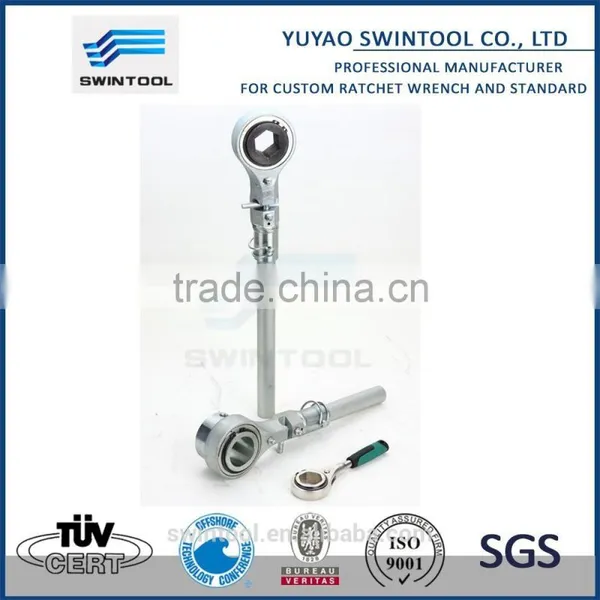

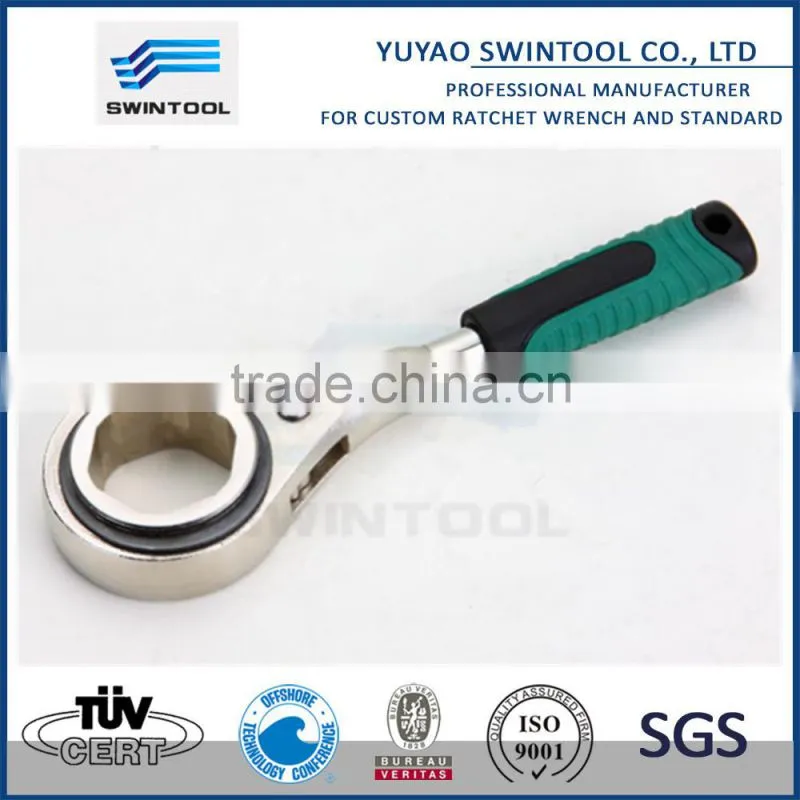

High quality hexagon adjustable ratchet socket wrench
Product | High quality hexagon adjustable ratchet socket wrench |
Material | Alloy |
Finish | hot dip galvanization, self-color, electroplating white Zinc,Polished |
Precision Rating | High precision |
Size | RT-HE55, RT-HE50, RT-HE46, RT-HE41, RT-HE36 |
Use | Heavy duty equipment's ratchet and paver machine |
Product range | series of rigging screw ; adjustable leveling assembly (stabilizer) and ratchet jack ( lifting arm), stabilizer chains assembly, top link assembly(upper link arm), lower link arm, ball joint terminals, ball and bushes, cross bar, top hooks, ball tie-rods and swiveling tie rods, turnbuckles etc. |
| Ratchet wrench for hexagon | ||||||
| Part No. | D1 | D2 | AF(HEX) | H | L | S.W.T(Nm) |
| RT-HE55 | 108 | 40 | 55 | 39 | 400 | 1300Nm |
| RT-HE50 | 108 | 40 | 50 | 39 | 400 | 1300Nm |
| RT-HE46 | 108 | 40 | 46 | 39 | 400 | 1300Nm |
| RT-HE41 | 86 | 30 | 41 | 32 | 300 | 1000Nm |
| RT-HE36 | 86 | 30 | 36 | 32 | 300 | 1000Nm |
A professional manufacturer of Turnbuckle DIN 1478, equiped with our hydraulic pressure machine (350 ton) we can offer pipe forming size up to 100mm, the lenght is up to 600mm. We can offer Q235A , Q345B (16Mn) and 316 stainless steel etc.
Our DIN 1478 turnbuckle loadability is better than our competitor, our breaking load limit is certificated by SGS. The data will show:
| DIN 1478 turnbuckle SIZE | SWINTOOL B.L.L (KG, SGS) | SWINTOOL S.W.L(KG) | COMPETITOR S.W.L (KG) | TIMES |
| M8 | 5637 | 1127 | 410 | 2.75 |
| M10 | 8553 | 1710 | 650 | 2.63 |
| M12 | 10860 | 2172 | 930 | 2.34 |
| M16 | 14210 | 2842 | 1770 | 1.61 |
| M20 | 20210 | 4042 | 2700 | 1.50 |
| M24 | 34900 | 6980 | 3920 | 1.78 |
| M30 | 42870 | 8574 | 6250 | 1.37 |
A professional manufacturer of custom ratchet turnbuckle and speical ratchet wrench, with 3D model drawing support(UG, Solidworks etc), we design the ratchet wrench with intellectural property right, in 2013 we applied 2 patents of ratchet wrench, in 2014 we will get 4 patents of ratchet wrench.
High quality hexagon adjustable ratchet socket wrench
Packing: swintool standard package or customer' required see details in the content
Shipping: 45 days after receiving confirmed order
Swintool is devoted to provide special hardware tools and accessory with the certificate of ISO 9001:2008, Industrial manufacturing customer’s different need is our continuous driving force of evolving into specialty tools.
With 3D model drawing design support(UG, Solidworks etc) ; and the integration of processing technology resources, our sub-supplier are equipped with a series of advanced and specific production equipment such as M/C, CNC, wire cutting, CNC Laser cutting machines rinding /milling machines and hot/cold forging machines, We invested the hydraulic pressure machinery to develop the technology of metal forming (i.e pipe forming) etc.; with the support of our the third-party lab, we can analysis the chemical compositions and physical properties of the material.
We are sincerely looking forward to hearing from your inquiry!
...
