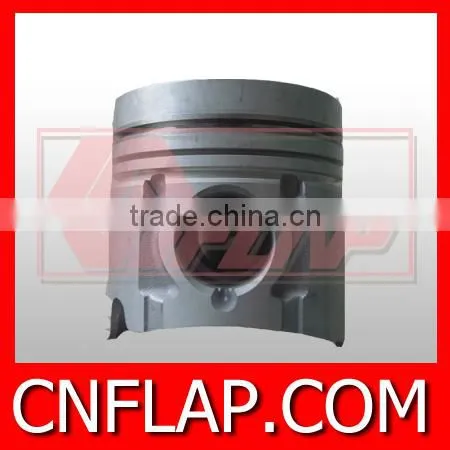

Engine piston 4JB1 4JB1T

Name: Engine piston 4JB1 4JB1T
Brand: CNFLAP
Price: USD $8 - 10 / Piece

FOB Price

USD $8 - $10 / Piece

1000 Pieces(Min.Order)

Supply Ability 500 Piece / Pieces per Month
Port Guangzhou/Shanghai/Ningbo
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Type:	Piston	Size:	93mm	Car Make:	ISUZU/FAW
OE NO.:	4JB1T	Place of Origin:	Anhui, China	Brand Name:	CNFLAP
Model Number:	4JB1T, 4JB1T

Packaging Details

1. Neutral blank packing 45*42*38
2. Your own brand packing
3. Wooden packing
4. OEM genuine packing

Product Description

Specifications

4JB1 4JB1T piston
1. 8-94433-177-1
2. 8-97089-892-0
3. 6291200

Engine Piston 4JB1 4JB1T

C/F-No	E-Model	OEM No	Piston Size		OEM No	Ring Size	OEM No	Liner Size
CF-IS-11	4JB1	8-97176-604-0 8-94433-177-0 chamber: 48mm square head 6291200 8-94433-177-1 8-97089-892-0 8-97176-608-0 8-9445-718-0	Dia:	93	8942478671 R17490 SDI10-110	2 2 4	8971766850 8-94247-861-2 5-87813-185-0 5-87810-628-0 liner kits: 5-87811-377-0 5-87819-627-0	A:	93
			GL:	91.84				B:	98
			KH:	51.84				C:	181
			Pin Dia:	31
			Length:	76.4
			Remark	alfin
			reinforced

C/F-No	E-Model	OEM No	Piston Size		OEM No	Ring Size	OEM No	Liner Size
CF-IS-12	4JB1T	8-94340-620-0 8-97178-602-0 square head	Dia:	93	8942478671 R17490 SDI10-110	2 2 4	8-97176-685-0 8-94247-861-2 5-87813-185-0 5-87810-628-0 Liner kit 5-87810-636-0 5-87813-189-0	A:	93
			GL:	92				B:	98
			KH:	52				C:	181
			Pin Dia:	31
			Length:	78
			Remark	alfin
			reinforced

A.Our piston details:
1. Piston Material : ZL109 Aluminium Alloy , Alloy cast iron.
2. Piston Type :1 Steel-insert piston , 2 ALFIN piston , 3 Cast Iron piston , 4 Cooling channel piston , 5 One piece casting piston , 6 Compages piston , 7 Forged piston
3. Piston Feature : Satin Anodised Aluminium ,phosphating , Alfin ,Double Alfin , No Alfin , Graphite , Oil cooling channel , Sn(tin) plated , Steel Piece , Top Oxidization , Skirt Graphite Printed , Three or Four Ring Grooves ,Ceramic Spraying
4. We can offer you The 1 Steel-insert piston , 2 ALFIN piston , 3 Cast Iron piston , 4 Cooling channel piston , 5 One piece casting piston , 6 Compages piston , 7 Forged piston piston, 8 Two pieces piston/Double piston

B.Our Piston ring details:
1. Piston ring Material : Cast iron , Alloy , Steel

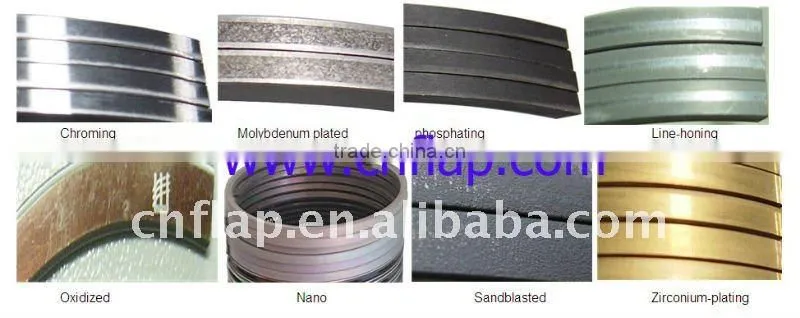

2. Piston ring Feature : 1 Chrome-plating ,2 Line-honing ,3 nitridation , 4 phosphating , 5 Molybdenum plated(Moly-inlaid) ,6 Nitrided ,7 Oxidized,8 Nano,9 Zirconium-plating ,10 Sandblasted ,11 Special honing, 12 Titanium-plating, 13 Rail With Teflon

C.Our Cylinder Liner details:
1. Cylinder liner/ sleeves Material : Boron-containing Alloy Cast Iron
2. Cylinder liner/ sleeves Treatment: laser quenching , high-frequency quenching
3. Cylinder liner/ sleeves Feature : Dry, Wet & Air Cooled Blocks

D: Production details:

Mechanical Properties (%)
CODE	AC8A	AC8B	AC8C	AC9B	AC9A
Tensile Strength Kg/mm	T5>22	T5>21	T5>21	T5>20	T5>18
	T6>28	T6>28	T6>28	T6>22	T6>18
	T7>25	T7>25	T7>25	T7>21
Hardness HRB	T5 57~69	T5 57~69	T5 57~69	T5 57~69
	T6 64~74	T6 64~74	T6 64~74	T6 64~74	T6 63~75
	T7 55~65	T7 55~65	T7 55~65	T7 55~66	T7 54~66
Elongation (%)	T5>0.5	T5>0.5	T5>0.5	T5>0.3
	T6>0.5	T6>0.5	T6>0.5	T6>0.3	T6>0.3
	T7>0.6	T7>0.6	T7>0.6	T7>0.3	T7>0.3

E: Gurantee for the piston:

1. we strictly adhere to the GB1148-82,JB3931-85 and JB3932-85 Criterion

2. send sample for check before delivery

F:Packing details:
1. we can design the packing by your requirements but with bigger quantity

2. if need wooden pallets, the customer needs to pay for the wooden pallet charges

3. if no requirements,we offer the Corrugated Carton and vellum paper

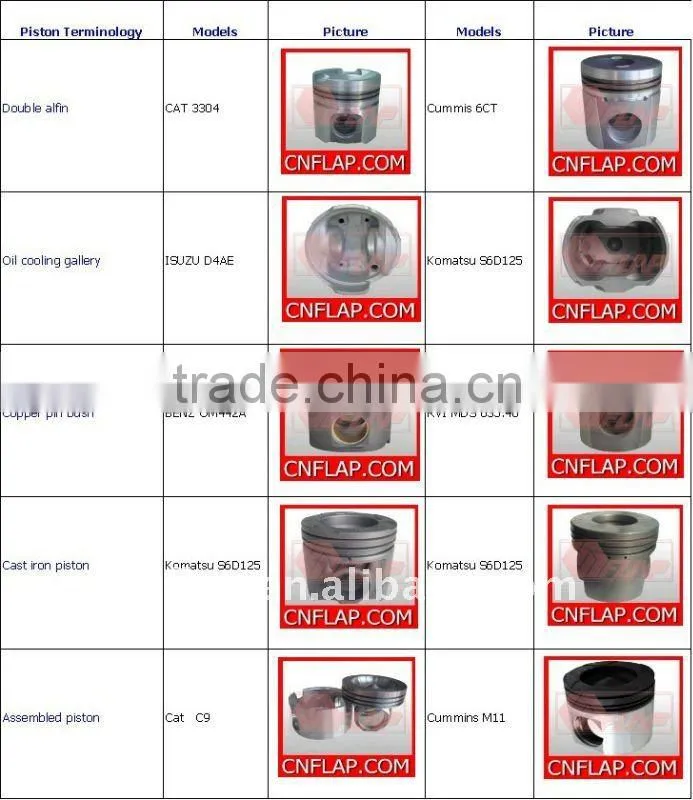

G: CNFLAP Piston Techniques:

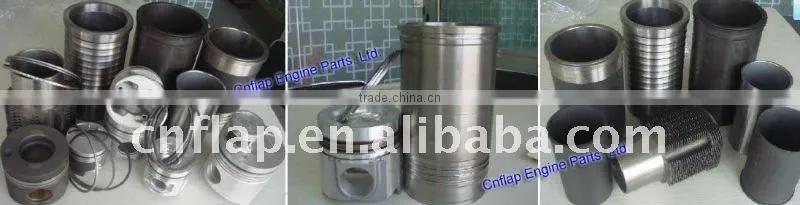

H: CNFLAP Production:

I: CNFLAP Shipment:

We are always here waiting for your early inquiry!

Company Profile

Guangzhou Cnflap Auto Parts Ltd.

Guangzhou Longjian Auto Parts Co.,Ltd belongs to Cnflap Engine Parts (GZ) Ltd., established in 1995, which main producing in piston, piston ring, and cylinder liner for auto engine parts, especially in diesel engines, have developed more than 300 models of products.

You can get these from us:
piston, piston ring, cylinder liner, Engine liner kits
1) For European& American, Korean & Japanese and Russian etc. Engines.
2) Good quality, good packing,good finish.
3) Competitive price, guarantee 100000km.
4) Secure service & Packing Details: Meet your requirements.
5) We can develop new items for you especially.

We carry out the scientific management throughout the past 15 years; the CNFlap team has designed, manufactured, and built our own brand. In the attention to update of technique and improvement of quality. CNFlap are developing new products continuously and introducing of the advanced equipment and technology from Germany and Japan. The production facilities are precise and the inspection ways have the criterion.

Our special technological background, experience of over five years and abundant inventory enable us to answer our customers inquiries promptly. Our sales team is equipped with professional knowledge so that we can provide satisfactory products and services.

Under the quality control system of TS16949 and ISO9002, we strive to ensure each piston, piston ring, and liner in your hands is zero defect.
