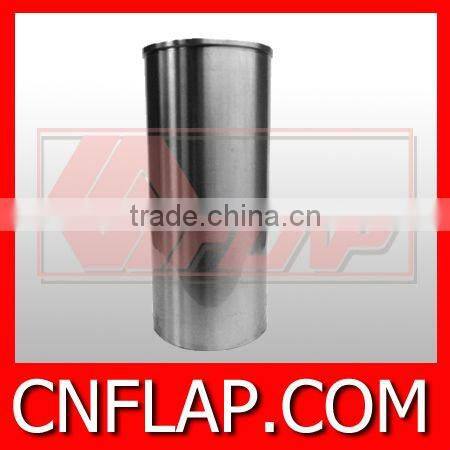

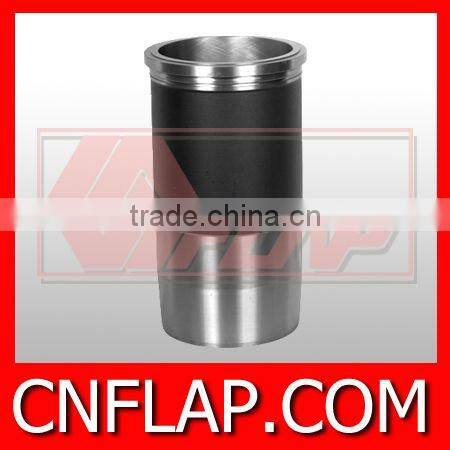

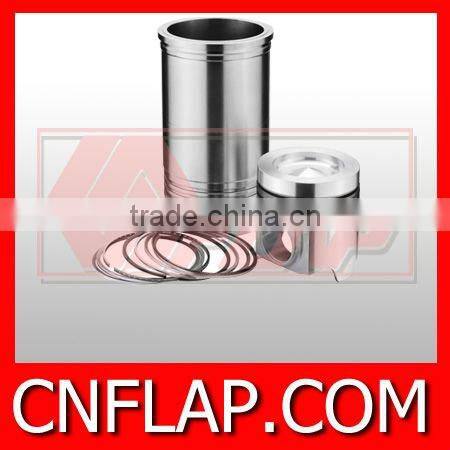

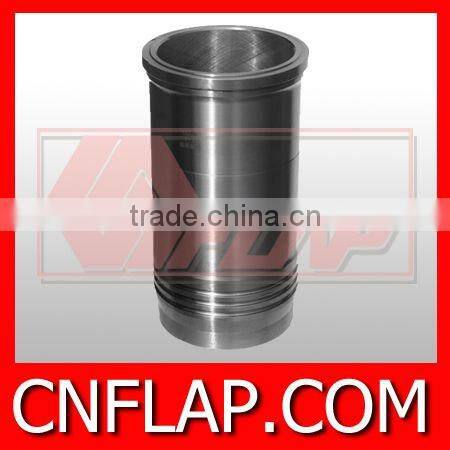

Piston Cylinder Liner Kit

Specifications

piston cylinder liner kit

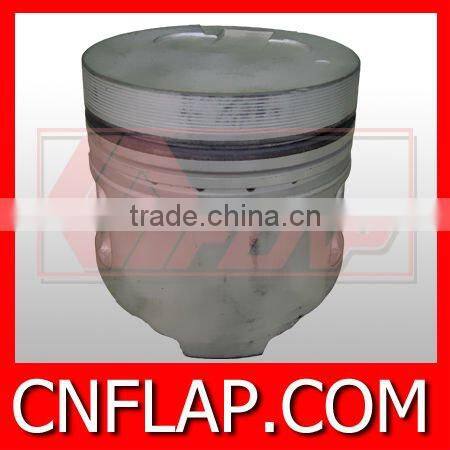

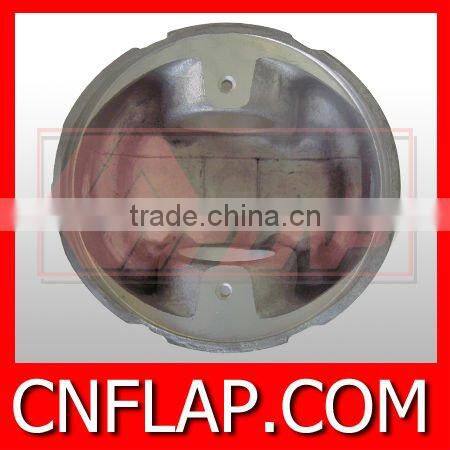

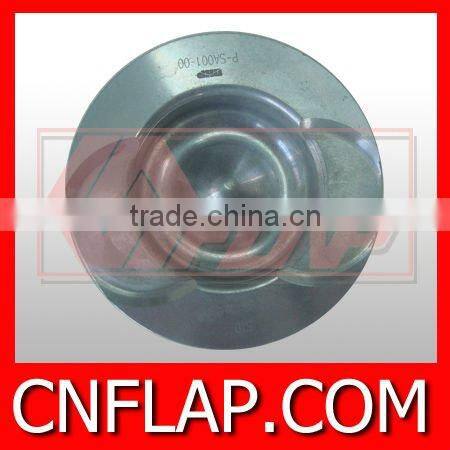

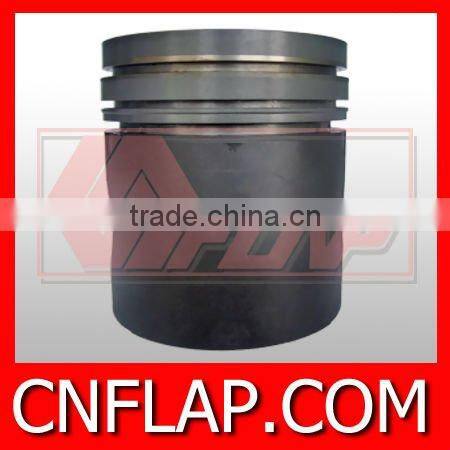

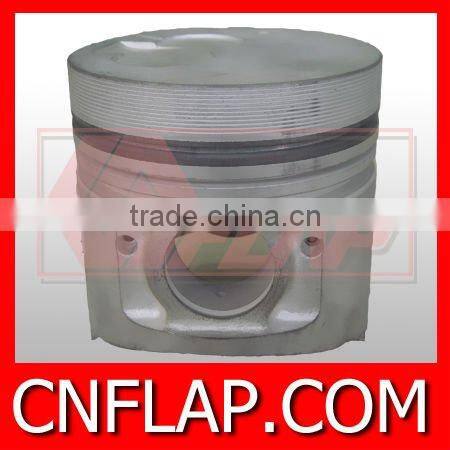

A: 4BD1/6BD1 engine piston

   Application for Isuzu engines:

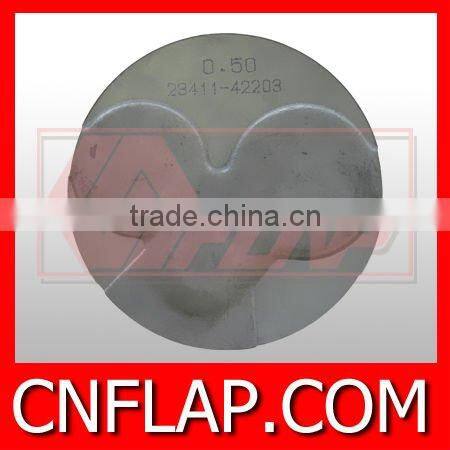

   Piston details:
   Dia: 102
   GL:  104.2
   KH:  59
   Pin Dia: 35
   Length:  91
   Remark: alfin

B: Isuzu engine details:

   we can offer the following engines as well:
   1. C190 (3G)         2. C240 (4G)
   3. C240 (3G)         4. 4BA1
   5. 4BD1T/4BD1        6. 4BE1
   7. 4HF1/4HF1 New     8. 4HG1T
   9. 4HG1              10. 4JA1 New
   11. 4JB1             12. 4JB1T
   13. C223             14. 4BC2
   15. C221             16. 6BB1/4BB1
   17. 6BD1/4BD1        18. 4BD1T
   19. 6BD1T            20. 6BG1
   21. 6BG1TC           22. 6RA1T
   23. 10PE1            24. 6HH1
   25. 6HE1T            26. 4BC1
   27. 6HE1


C: and also, for Japanese truck engines, we have the following brand:

   Isuzu,Mazda, Nissan, Toyota, Hino  ......

D: Production details:

Piston Material : ZL109 Aluminium Alloy , Alloy cast iron.

1. Chemical Elements of materials for piston:
    Aluminum: ZL109
       Cu: 0.5~1.5                   Si: 11.0~13.0             Mg: 0.8~1.3           Zn: 0.20max
       Fe: 0.70max                  Mn:0.20max               Ni:0.8~1.5              Ti:0.20max
       Sn:0.05max

2. Materials for the piston pin:
    40CrMo.
        Cu:0.38~0.45         Si:0.17~0.37                 Mn:0.50~0.80
        Sn:<0.0035             Cr:0.90~1.20                Mo:0.15~0.25

         Ni:allow to the impurity less than 0.030
         P:allow to the impurity less than 0.035

E: Gurantee for the piston:

   1. we strictly adhere to the GB1148-82,JB3931-85 and JB3932-85 Criterion

   2. send sample for check before delivery

F: Packing details:
   1. we can design the packing by your requirements but with bigger quantity

   2. if need wooden pallets, the customer needs to pay for the wooden pallet charges

   3. if no requirements,we offer the Corrugated Carton and vellum paper
