Lock assembly RLK 110 Taper Lock Hub Capt Lock with Radial Flat Height

Name: Lock assembly RLK 110 Taper Lock Hub Capt Lock with Radial Flat Height
Brand: Suma
Availability: InStock

FOB Price

USD $5 - $10 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Shanghai; Ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Structure	Disc	Flexible or Rigid	Flexible
Standard or Nonstandard	Standard	Material	Steel
Brand Name	Suma	Place of Origin	Jiangsu, China
Model Number	RLK110

Product Description

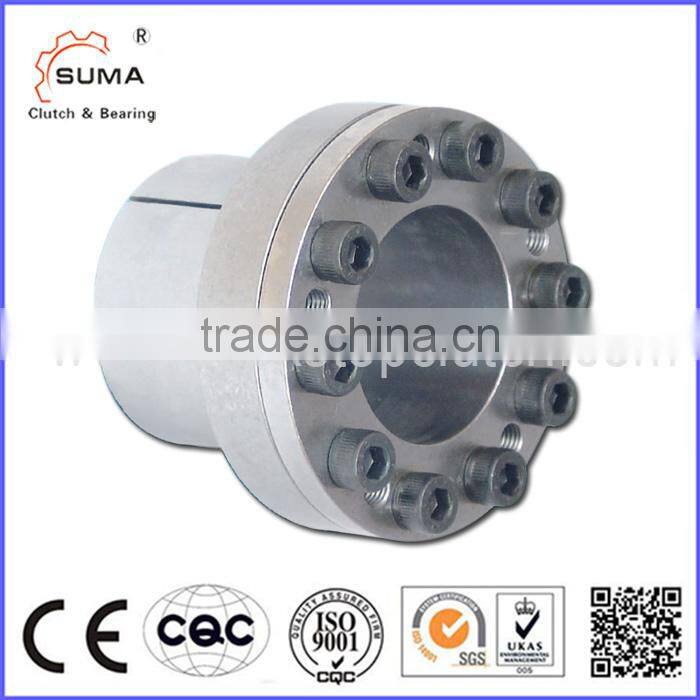

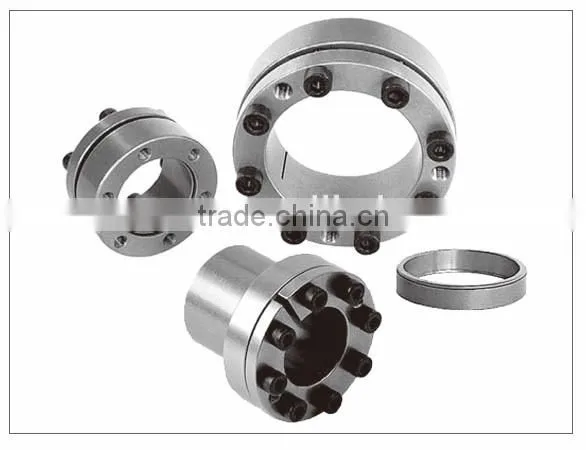

Lock assembly RLK 110 Taper Lock Hub Capt Lock with Radial Flat Height
Details
Model		RLK110
Material		steel
Type		tightening sleeve
Inner Diameter		6mm
Outer Diameter		25mm
Weight		0.1kg
Width		24mm
Transmissible torque		14Nm
axial force		4.8kN

Features

1. Centres the shaft to the hub

2. High transmissible torques

3. Radial flat height is particularly suitable for small hub outer diameters

4. No axial displacement between hub and shaft during clamping procedure due to fixed backstop point

5. For shaft diameters between 6 mm and 120 mm

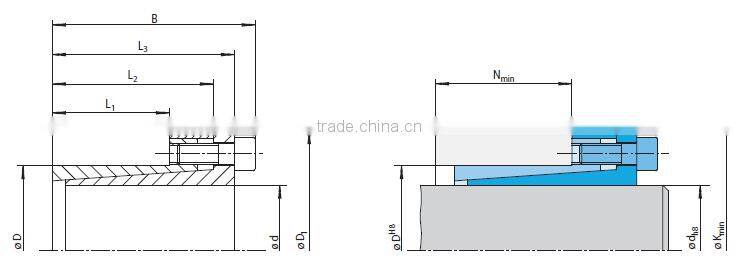

specifications

size							Yield strength Re of the hub material [N/mm²]						Transmissible torque or axial force		Contact pressure at		Clamping screws				Weight	article number
							200		torque or		500				Shaft	Hub	torque	number	Size	Length	Weight	article number
d	D	axial force	B	L1	L2	L3	^Kmin	^Nmin	^Kmin	^Nmin	^Kmin	^Nmin	M	F	^PW	Pn	Ms
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	Nm	kN	N/mm²	N/mm²	Nm			mm	kg
6	14	25	24	10	19	21	32	15	23	12	19	11	15	5	257	110	1,8	4	M3	10	0,1	4206-006001-000000
8	15	27	29	12	22	25	40	18	27	15	21	13	27	6,8	214	114	4,5	3	M 4	10	0,1	4206-008001-000000
9	16	28	30	14	23	26	47	22	30	18	23	16	41	9,1	218	122	4,5	4	M 4	10	0,1	4206-009001-000000
10	16	29	30	14	23	26	47	22	30	18	23	16	45	9,1	196	122	4,5	4	M 4	10	0,2	4206-010001-000000
11	18	32	30	14	23	26	45	20	31	17	25	15	50	9,1	178	109	4,5	4	M 4	10	0,2	4206-011001-000000
12	18	32	30	14	23	26	45	20	31	17	25	15	54	9,1	163	109	4,5	4	M 4	10	0,2	4206-012001-000000
14	23	38	30	14	23	26	43	19	34	17	29	16	64	9,1	140	85	4,5	4	M 4	10	0,2	4206-014001-000000
15	24	44	42	16	29	36	86	32	53	23	39	20	150	20	257	161	15	4	M 6	18	0,2	4206-015001-000000
16	24	44	42	16	29	36	86	32	53	23	39	20	160	20	241	161	15	4	M 6	18	0,3	4206-016001-000000
17	26	47	44	18	31	38	76	31	49	24	38	21	180	22	215	141	16	4	M 6	18	0,3	4206-017001-000000
18	26	47	44	18	31	38	76	31	49	24	38	21	190	22	203	141	16	4	M 6	18	0,3	4206-018001-000000
19	27	48	44	18	31	38	75	30	49	24	39	21	200	22	192	135	16	4	M 6	18	0,3	4206-019001-000000
20	28	49	44	18	31	38	73	29	50	24	40	21	210	22	183	130	16	4	M 6	18	0,3	4206-020001-000000
22	32	54	51	25	38	45	59	32	46	29	40	27	230	22	120	82	16	4	M 6	18	0,3	4206-022001-000000
24	34	56	51	25	38	45	59	31	47	28	42	27	260	22	110	77	16	4	M 6	18	0,3	4206-024001-000000
25	34	56	51	25	38	45	59	31	47	28	42	27	270	22	105	77	16	4	M 6	18	0,3	4206-025001-000000
28	39	61	51	25	38	45	81	36	60	30	51	28	450	33	141	101	16	6	M 6	18	0,4	4206-028001-000000
30	41	62	51	25	38	45	81	35	61	30	53	28	480	33	132	96	16	6	M 6	18	0,4	4206-030001-000000
32	43	65	51	25	38	45	102	40	72	32	59	29	690	43	164	122	16	8	M 6	18	0,5	4206-032001-000000
35	47	69	56	30	43	50	91	41	70	36	60	33	760	43	125	93	16	8	M 6	18	0,5	4206-035001-000000
38	50	72	56	30	43	50	92	41	72	36	63	33	820	43	115	88	16	8	M 6	18	0,6	4206-038001-000000
40	53	75	56	30	43	50	93	40	74	35	66	33	860	43	110	83	16	8	M 6	18	0,6	4206-040001-000000
42	55	78	65	32	50	57	145	55	99	43	79	38	1550	76	171	130	37	8	M 8	22	0,9	4206-042001-000000
45	59	85	73	40	57	65	125	57	91	48	77	45	1700	76	127	97	37	8	M 8	22	1,0	4206-045001-000000
48	62	87	78	45	62	70	116	59	90	52	78	49	1800	76	106	82	37	8	M 8	22	1,0	4206-048001-000000
50	65	92	78	45	62	70	139	64	101	54	85	50	2350	95	127	98	37	10	M 8	22	1,3	4206-050001-000000
55	71	98	83	50	67	75	131	65	102	58	89	55	2 500	95	104	81	37	10	M 8	22	1,5	4206-055001-000000
60	77	104	83	50	67	75	133	64	107	58	94	54	2800	95	96	74	37	10	M 8	22	1,7	4206-060001-000000
65	84	111	83	50	67	75	136	63	112	57	101	54	3000	95	88	68	37	10	M 8	22	1,9	4206-065001-000000
70	90	119	101	60	80	91	169	80	131	70	113	66	5200	149	109	85	73	10	M 10	25	2,9	4206-070001-000000
75	95	126	101	60	80	91	170	79	134	70	118	66	5600	149	101	80	73	10	M 10	25	2,3	4206-075001-000000
80	100	131	106	65	85	96	187	87	145	76	126	72	7100	179	105	84	73	12	M 10	25	3,3	4206-080001-000000
85	106	137	106	65	85	96	188	86	149	76	131	71	7600	179	99	80	73	12	M 10	25	3,6	4206-085001-000000
90	112	143	106	65	85	96	221	92	168	79	144	73	10000	224	117	94	73	15	M 10	25	4,0	4206-090001-000000
95	120	153	106	65	85	96	223	91	174	79	152	73	10600	224	111	88	73	15	M 10	25	4,5	4206-095001-000000
100	125	162	114	65	89	102	249	96	190	81	162	74	13000	262	122	98	126	12	M 12	30	5,5	4206-100001-000000
110	140	180	140	90	114	128	220	110	183	101	166	97	14000	262	80	63	126	12	M 12	30	8,0	4206-110001-000000
120	155	198	140	90	114	128	230	109	197	101	180	96	15500	262	74	57	126	12	M 12	30	10,5	4206-120001-000000
