RLK 133 axial width clamping sets lock-alx assmbly
- 10000 Piece / Pieces per Month
- Shanghai; Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Structure | Disc | Flexible or Rigid | Flexible | |
| Standard or Nonstandard | Standard | Material | Steel | |
| Brand Name | Suma | Place of Origin | Jiangsu, China | |
| Model Number | RLK 133 |
Product Description

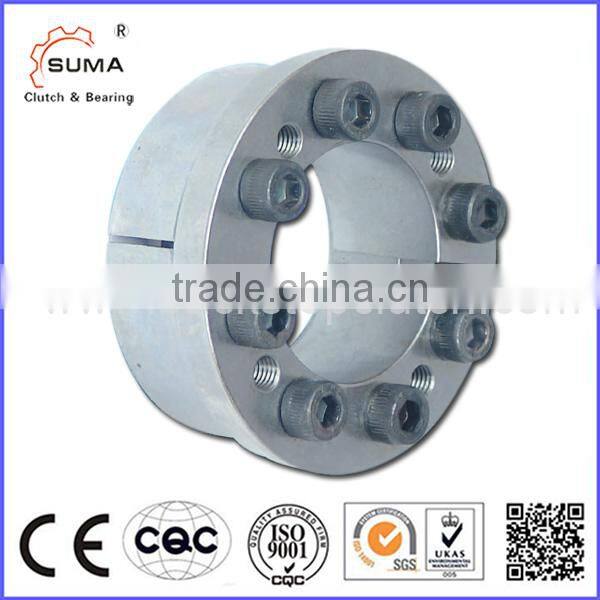

RLK 133 axial width clamping sets lock-alx assmbly
| RLK 133 Short axial width clamping sets lock-alx | ||
| Details | ||
| Model | RLK133 | |
| Material | steel | |
| Type | cone clamping element | |
| Inner Diameter | 20mm | |
| Outer Diameter | 47mm | |
| Weight | 0.3kg | |
| Width | 34mm | |
| Transmissible torque | 320Nm | |
| axial force | 32kN | |
Features
1. Centres the shaft to the hub
2.Short axial width
3. No axial displacement between hub and shaft during clamping procedure due
to fixed backstop point
4.For shaft diameters between 20 mm and 200 mm

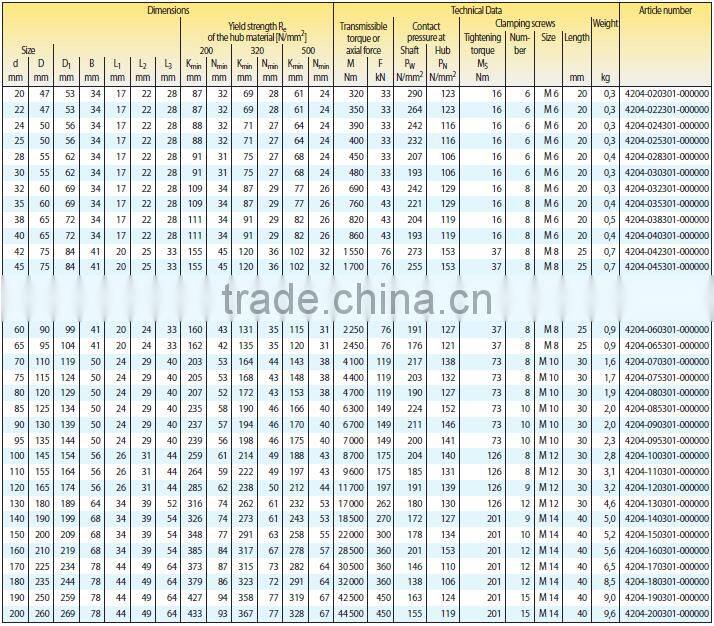

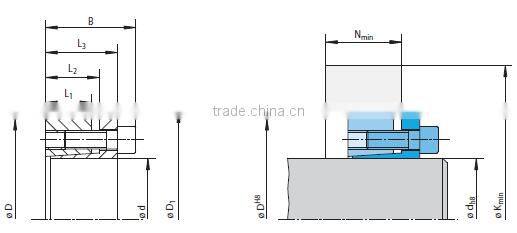

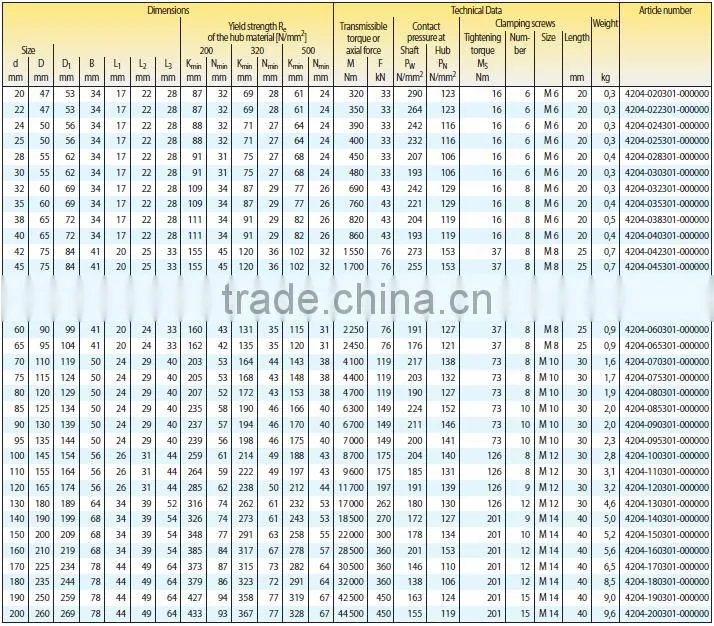

specifications
Application example
Backlash free connection of a timing belt pulley to the drive shaft with a Cone Clamping Element
RLK 133. Due to the fixed backstop point, the timing belt pulley is not displaced axially during
clamping. The Cone Clamping Element also centres the timing belt pulley to the shaft. The
compact Cone Clamping Element is a costefficient solution especially for applications with
low space requirements.

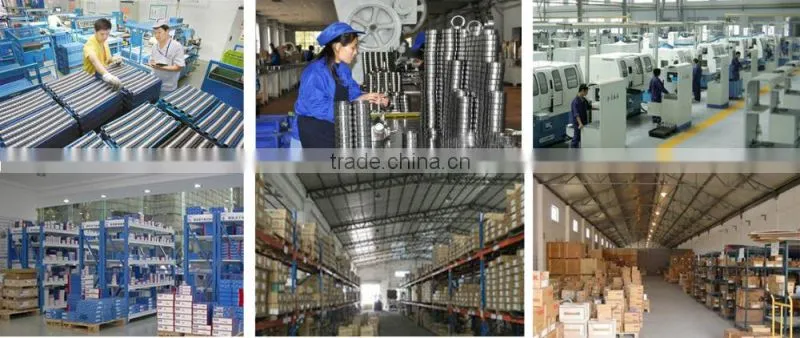

Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and needle roller bearing with high technology
Q: Why do we choose your company?
A: We always insist quality firstly. We have our bearing factory, therefore we have advantage in quality control and price.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 3 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples to check quality first.
