General Introduction

Slitting line can do uncoiling, slitting and recoiling works, make coil steel to any needed width coil steel. It mainly includes coil car, uncoiler, coil guide, slitting machine, scrap winder, tension unit, recoiler and coil car, hydraulic system, Etc. It mainly used in cold rolling carbon steel, silicon steel and all the other kinds of metal materials with surface spreading.

This line can be adjusted to do recoiling or dividing work to meet customer’s demand.

The main technical parameter as the following:

1)      Capacity:

Material: cold rolled steel coil, heat rolled steel coil

Material thickness: 0.4-3.0mm

Material width: 400-1600mm

Slitting speed: 120m/min

Max incoming material outer diameter: Φ-1500-2000mm

Max incoming inner diameter: Φ460-Φ520mm, Φ580-Φ640mm, Φ660-720mm. (Hydraulic double-head decoiler)

Max out put inner diameter: Φ480-520mm( hydraulic recoiler)

Max coil weight: 30T

Slitting strips quantity: 25 cuts (1MM)

Min Strip width:20MM

Edge burr: ≤0.05strip thickness

Power supply: 380v, 3PH, 50Hz

Composition:

1)      Feeding trolley car                                      1 set

2)      Hydraulic double-head decoiler                              1 group

3)      pinch roller, leveling roller, integrated hydraulic shearing machine   1 group

4)      Loop bridge                                              1 group

5)      Hand manual side guide wheel                                1 group

6)      Slitting machine                                          1 set

7)      Scrap winder (independent type)                              1 set

8)      Looping bridge                                           1 set

9)      Separate device, plate tension station                         1 group

10)   Partition device, recoiler                                     1 group

11)   Hydraulic support system                                    1set

12)   Unloading trolley car                                     1set

13)   Hydraulic system                                          1 set

14)   Electronic control system                                     1 set

15)   Accessory                                                 1set

Production flow drawing:

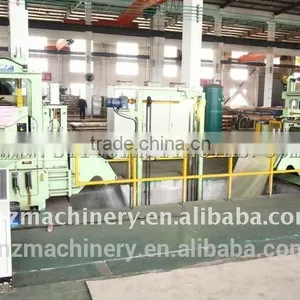

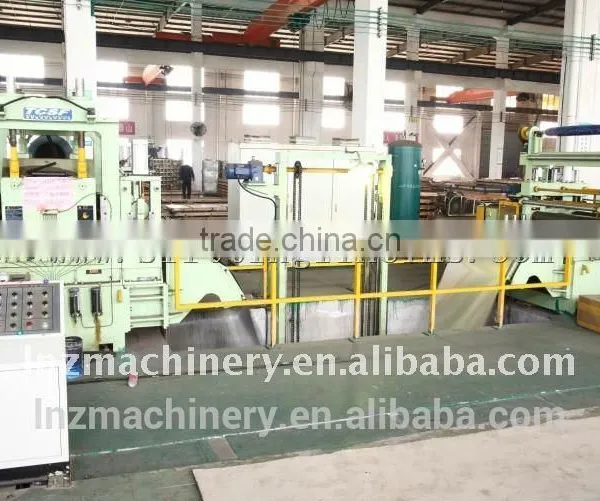

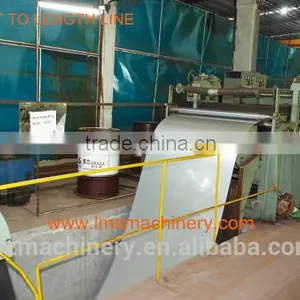

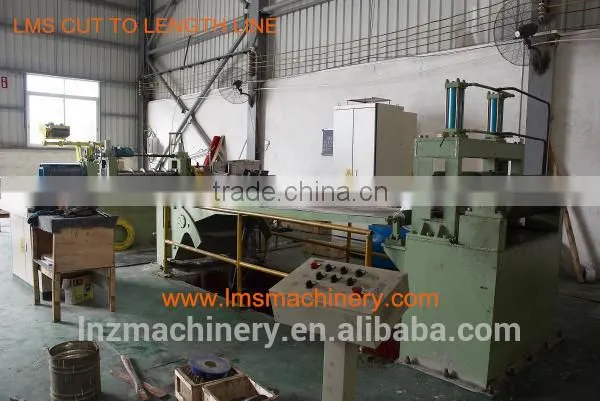

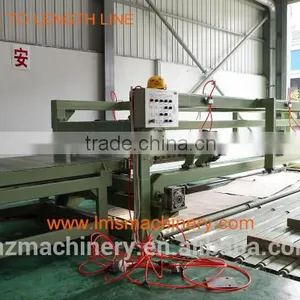

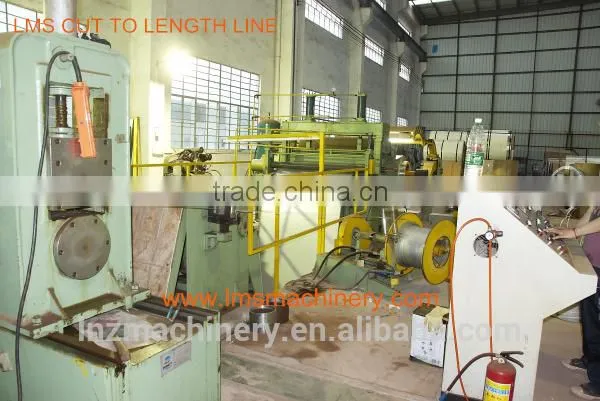

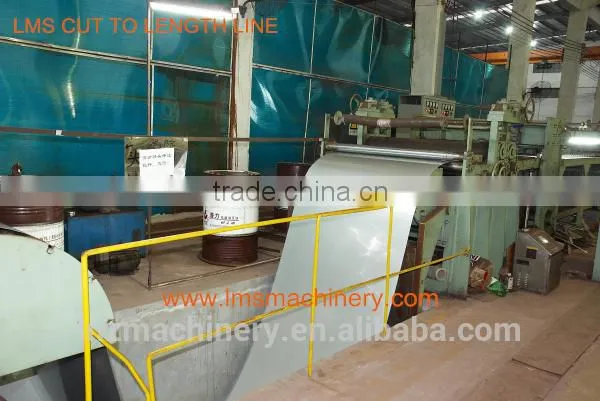

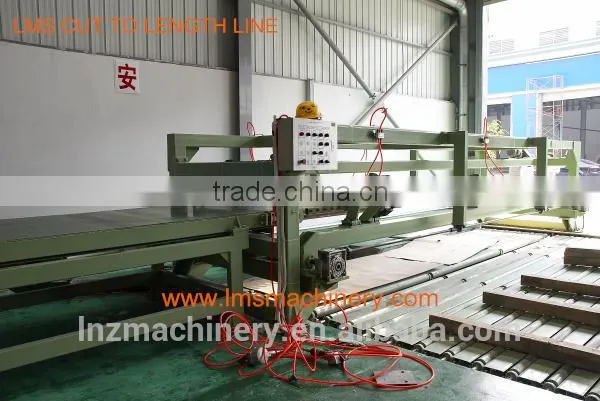

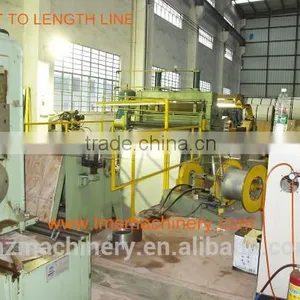

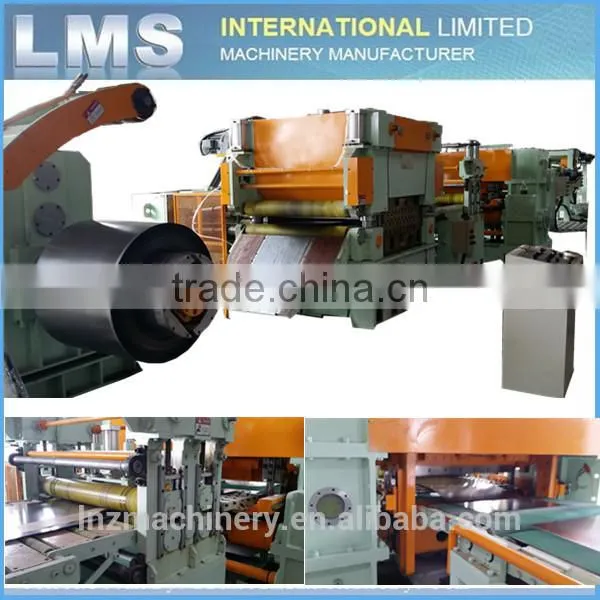

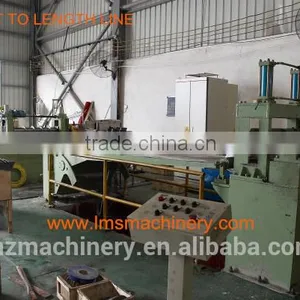

Machine Picture:
