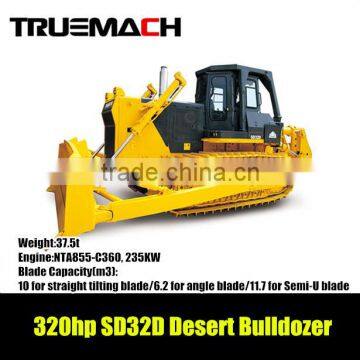

Shantui 320hp SD32D Desert Bulldozer
SD32D desert bulldozer is researched and developed independently on the basis of SD32 standard bulldozer in response to the demands of desert working conditions.
Engine power/speed:235kW/2000rpm
Operating weight of whole machine: 37500kg
Blade capacity: 10 for straight tilting blade 6.2 for angle blade 11.7 for Semi-U blade
Technical Features
1. This product adopts hydraulic drive and hydraulic control technologies, featuring advanced and reasonable structure, stable and reliable performances, and light and flexible operations.
2. It’s equipped with Chongfa NTA855-C360 engine, of which the pistons, cylinder sleeves, piston rings, and piston pins adopt the originally imported Cummins products.
3. The high capacity sand-retaining radiator and the engine intake prefilter are equipped to abundantly adapt to the climate characteristics of serious sand wind and high air temperature in deserts and semi-deserts and the earthworks in deserts and semi-deserts.
Performance Parameters
| Length × width × height (mm) (excluding ripper) | 6880×4130×3640 | Operating weight(t) (excluding ripper) | 37.5 |
| Engine model | NTA855-C360 | Net power/rated speed (kW/rpm) | 235/2000 |
| Ground pressure(Mpa) | 0.106 | Blade type | Straight tilting blade Angle blade Semi-U blade |
| Blade capacity(m3) | 10 for straight tilting blade 6.2 for angle blade 11.7 for Semi-U blade |
