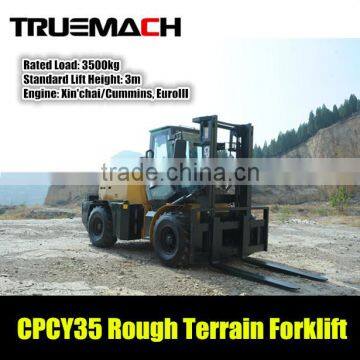

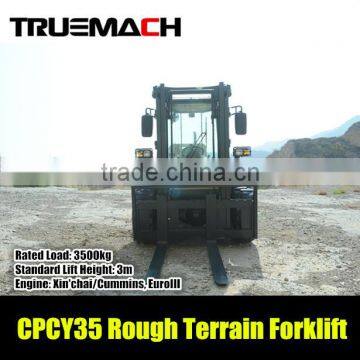

CPCY35 3.5Ton 4WD Rough Terrain Forklift
1.Main Features
CPCY series off-road forklifts adopts low noise engine with features of low displacement and environmental protection.
-Full hydraulic mechanic automatic transmission and steering system for flexible and easy handling.
-Large hauling capacity from its double-axle six wheel drive for improved safety and stability. -Articulated body design reduces tuming radius.
-Fitted with Glamour luxurious seat for extra comfort.

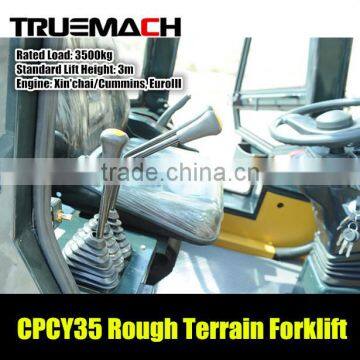

-Movement Control Stick incorporates German ZF Technology.
-Terrain Forklift is adaptable to various surface conditions.

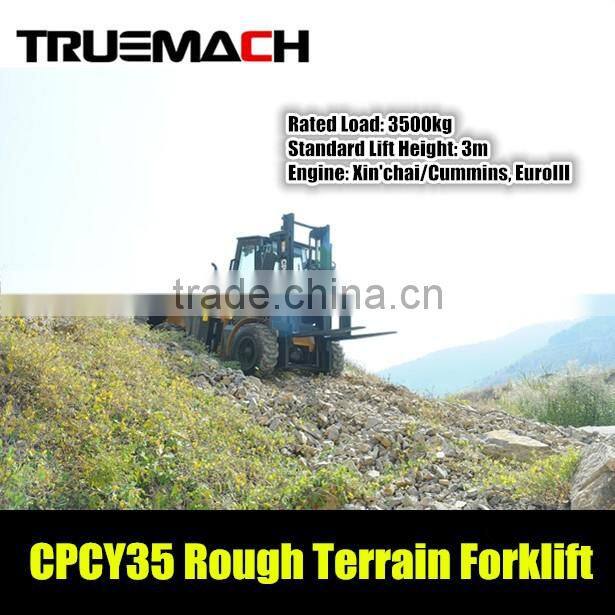

-It is suitable to operate on soft soils,grass,terrain,mine sites and many other rugged surfaces.
-Extensive range of attachments is available for this model to extend its working capacity for heavy duty mining projects.
2.Standard Depostion
Chinese Xin’chai 498 Euro3 diesel engine, duplex valve, hydraulic automatic gearbox, 1200m fork, cabin with heater, 2-stage 3000mm mast, 3500kg rated load, 4-wheel-drive.
3.Main Technical Parameters
General | ||||
Model | CPCY35 | |||
Power type | Diesel | |||
Rated capacity | 3500 kg | |||
Load center | 500 mm | |||
Characteristic&Dimension | ||||
Max. lifting height | 3000 mm | |||
Free lifting height | 1500 mm | |||
Mast tilt angle(Forward/Rear) | 6°/12° | |||
Front overhang | 530 mm | |||
Min.ground clearance | 200 mm | |||
Length to face of fork | 5055mm (with fork); 3655mm(without fork) | |||
Overall width | 1725 mm | |||
Mast lowered height | 2120 mm | |||
Mast extended height | 5150 mm | |||
Height to the top of cabin | 2170 mm | |||
Min. Turning radius | 4760 mm | |||
Performance | ||||
Max. travel speed | 22(unladen)/18(laden) km/h | |||
Max. Drawbar pull(Laden) | 28 kN | |||
Max. Gradeability(Laden) | 20% | |||
Max. Lifting speed(Laden) | 425 mm/s | |||
Tyre | ||||
Front wheel specification | 12-16.5 (12-layer) | |||
Rear wheel specification | 12-16.5(12-layer) | |||
Front wheel tread | 1170 mm | |||
Rear wheel tread | 1170 mm | |||
Wheelbase | 2080 mm | |||
Weight | ||||
Self weight (unladen) | 4750 kg | |||
Power&Transmission | ||||
Engine | Model | 498 | B3.3-C60 | |
Manufacture | Chinese Xin’chai | Japan Cummins | ||
Emission | Euro III | Euro III | ||
Rated output/r.p.m. | 40kW/2300 | 45kW/2200 | ||
No. of cylinder | 4 | 3 | ||
Displacement(L) | 2.28 | 3.261 | ||
