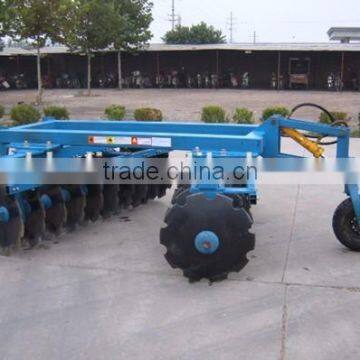

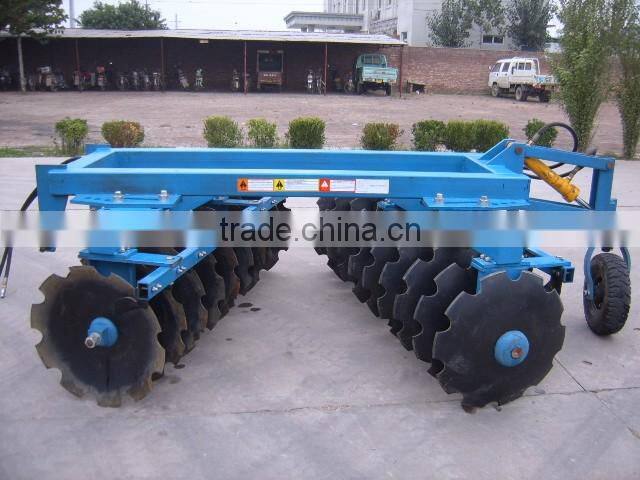

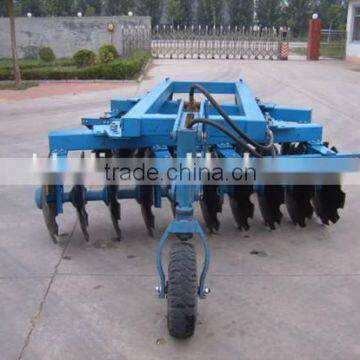

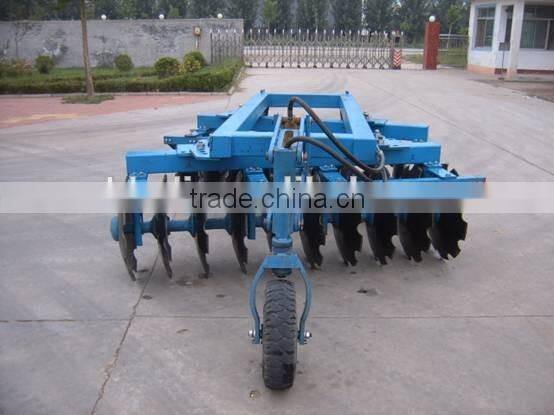

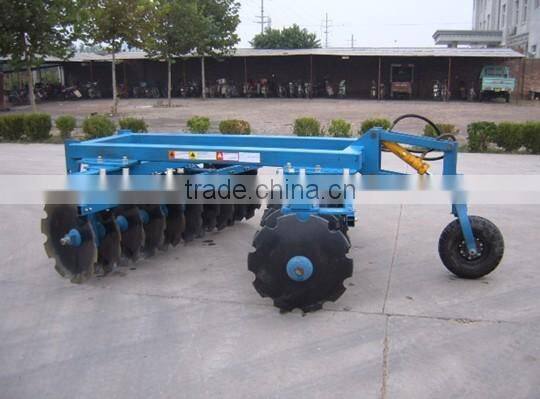

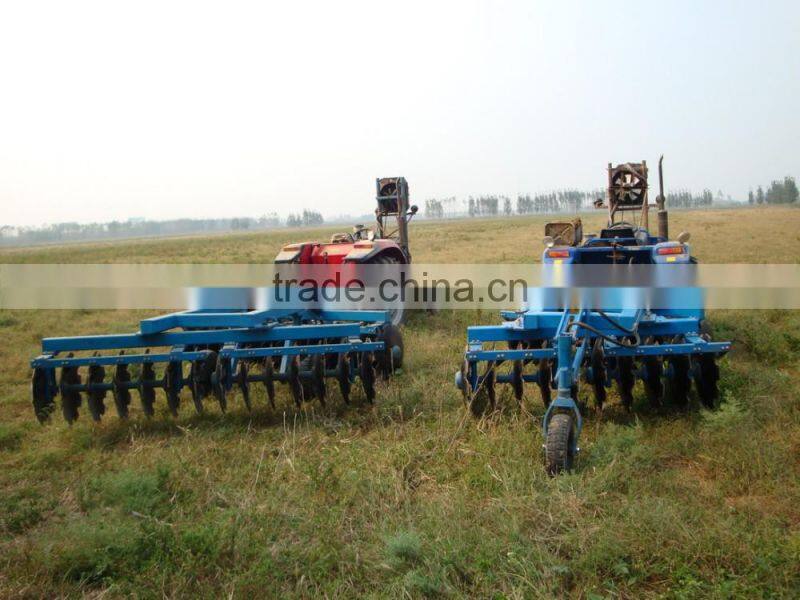

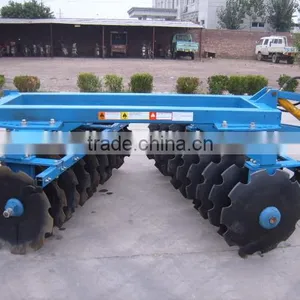

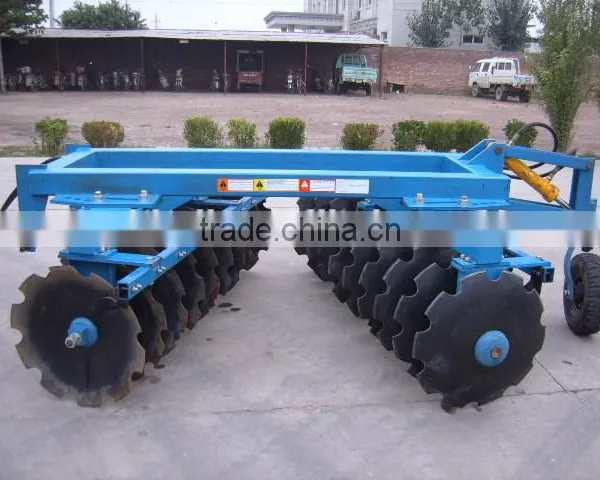

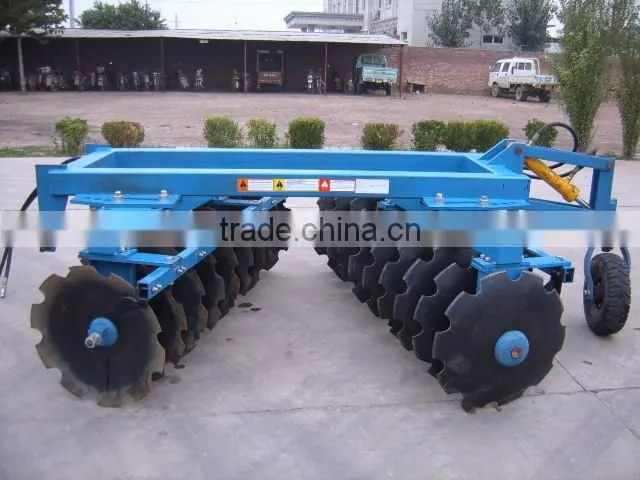

Heavy duty hydraulic semi mounted disc harrow
1 They have been proved to be satisfactory for harrowing work on uncultivated lands and in heavy clay soil fields.
2 It may be used for cleaning away stubble of plants before tillage, or crushing clods after tillage.
3 It may also be used as plough for primary tillage in cultivated fields.
4 Maximum harrowing depth on uncultivated land can reach 18cm.
Technical parameters:
Model | unit | 1BZ-1.8 | 1BZ-2.0 | 1BZ-2.5 | 1BZ-3.0 |
Overall size | mm | 4500*2080*1300 | 4820*2300*1300 | 4820*2880*1300 | 5320*3430*1300 |
Weight | kg | 980 | 1050-1100 | 1150-1200 | 1250-1300 |
Working width | m | 1.8 | 2.0 | 2.5 | 3.0 |
Working depth | mm | 200 | |||
Disc space | mm | 230 | |||
Qty. of disc | pc | 18 | 20 | 24 | 28 |
Dia. Of disc | mm | 660 | |||
Ground clearance | mm | >160 | |||
Productivity | ha/h | 1.2 | 1.3 | 1.4 | 1.7 |
Matched power | hp | 44-55 | 50-65 | 55-75 | 60-90 |
Linkage |
| Semi-Mounted | |||
