agricultural rotary tiller for tractor made in China
- 1000 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- farm rotary tiller blade with low price
- Multifunctional 1.8m rotary tiller with best quality
- Professional 1.6m rotary tiller with best price
- Brand new 1GQN-250 rotary cultivator with great price
- Hot selling 1GQN-200 rotary tiller cultivator for wholesales
- China new 1GN-150 rotary tiller made in China
Product Details
Condition: | New | Type: | Farm Cultivator | Power Type: | Other, Matched tractor to use |
Power(W): | / | Certification: | ISO9001:2000 | Warranty: | One year |
Use: | agriculture | Place of Origin: | Shandong, China | Brand Name: | Dadi |
Model Number: | 1GN Series | Weight: | 100kg-1000kg | Dimension(L*W*H): | / |
Packaging Details
Iron shellframe box
Product Description

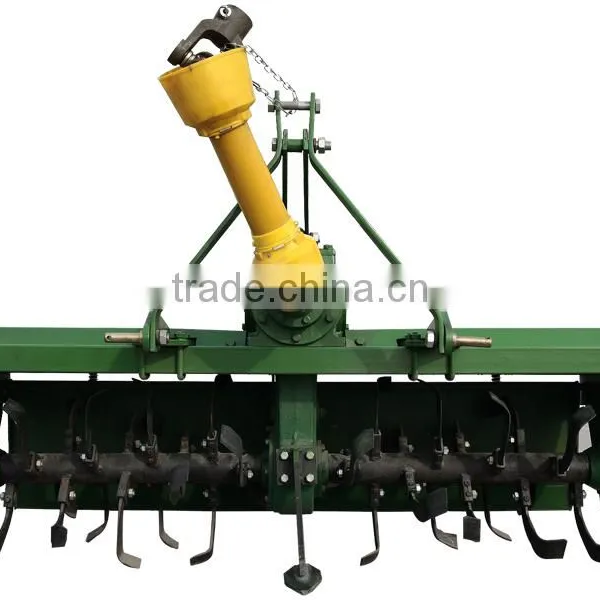

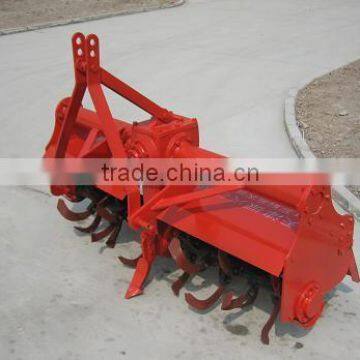

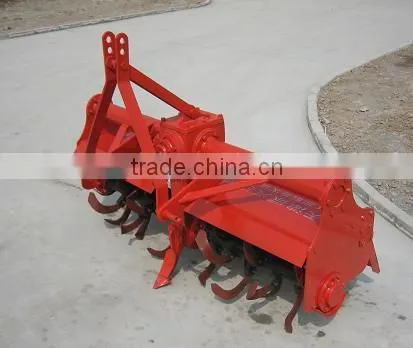

agricultural rotary tiller for tractor made in China
Rotary Tiller is driven by the tractor's out-put shaft. During operation, the soil is crumbled by the rotating and forwarding of the blades fixed on the shaft. It also can be used as shallow tilling and covering on the Stalinized soil to prevent the salt in the soil. The machine will fulfill the working of cleaning stubbles and weeds, turning and covering green fertilizer and preparing vegetable fields, etc.
After tillage, the land surface is leveling and smooth, the cover burden is closely, working efficiency is high and oil consumption is lower.
Main Specifications:
Model | 1G-120 | 1GN-125 | 1GN-140 | 1GN-150 | 1GN-160 | 1GQN180 | 1GQN200 |
Working Width (cm) | 120 | 125 | 140 | 150 | 160 | 180 | 200 |
Working Depth (cm) | Dry land 8~14,Paddy field 14~16 | Dry land 8~16,Paddy field 10~18 | |||||
Type of Blade | IT225 | IT245 | |||||
Nos of Blade (per) | 24 | 24 | 30 | 34 | 38 | 50 | 58 |
Overall Dimensions (L×W×H) (cm) | 90×154×109 | 90×136×109 | 90×169×109 | 90×170×109 | 90×188×109 | 102×210×115 | 102×235×115 |
Total Weight (kg) | 170 | 182 | 214 | 240 | 260 | 405 | 420 |
Rotary Speed of Tractors' PTO (rpm) | 540 | 540/720 | |||||
Rotary Speed of Blade Axle (rpm) | 199 | 213 | 200(Tractors' PTO is 540rpms),197(Tractors' PTO is 720rpms) | ||||
Working Speed (km/h) | 1 ~ 3 | 2 ~ 5 | |||||
Productivity (ha/h) | 0.3-0.47 | 0.3-0.47 | 0.33-0.0.5 | 0.36-0.56 | 0.38-0.62 | 0.53-0.74 | 0.6-0.8 |
Hitch Type | three-point mounted | ||||||
Matched Power (kw) | 13.2-18.4 | 13.2~18.4 | 18.4~22 | 22~29.4 | 29.4~36.7 | 36.7~40.4 | 40.4~55 |
