atv tow behind trailer made in China
- 1000 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
OEM No.: | / | Max Payload: | 3000-15000kg | Size: | / |
Place of Origin: | Shandong, China | Brand Name: | Dadi | Model Number: | 7CX series |
Packaging Details
Iron shellframe box
Product Description

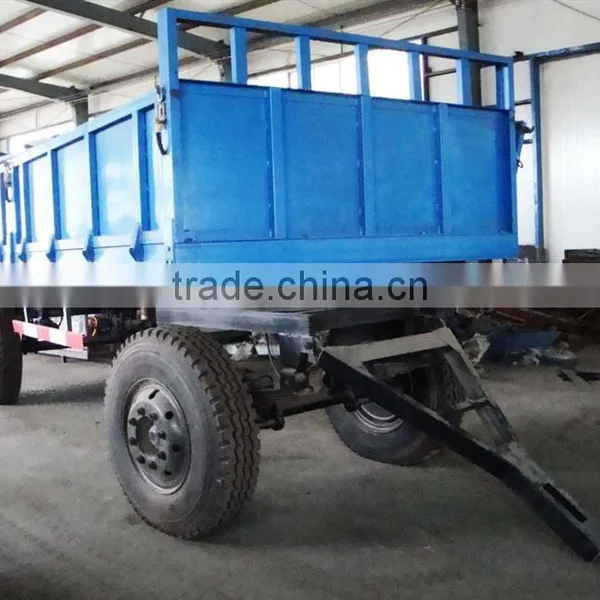

atv tow behind trailer made in China
7CX series Four Wheels Tipping Trailer is suitable to be used for plain area,mountain area,swamp and hills,farmland and highway transportation etc,different area environment,trailers of different forms match the tractors of different types.
On basis of fundamental type,we have developed the hydraulic pressure self-discharging trailer,improved efficiency.The trailer that our company produced are composed of steel entirely,the appearance is exquisitely,artistic and unaffected,the structure is rational and compacted,sturdy and durable,be able to adjust the height,the machines are advantageous and reliable,they are good assistant of mountain area friends.
Main specification:
Type | 7CX-3.0 | 7CX-4.0 | 7CX-5.0 | 7CX-6.0 | 7CX-7.0 | 7CX-9.0 | 7CX-15 |
Fixed load (kg) | 3000 | 4000 | 5000 | 6000 | 7000 | 9000 | 15000 |
Matched power (hp) | 25-50 | 30-50 | 50-72 | 50-80 | 50-80 | 50-90 | 64-120 |
Overall Dimension L×W×H (cm) | 418×168×208 | 500×200×210 | 560×210×228 | 580×210×228 | 600×210×228 | 650×220×238 | 800×230×252 |
Weight (kg) | 1450 | 1650 | 2100 | 2200 | 2450 | 2650 | 4000 |
Volume (L) | 2580 | 3330 | 4000 | 4500 | 5300 | 6800 | 10500 |
Height of loading (mm) | 1030 | 1200 | 1300 | 1200 | 1200 | 1200 | 1300 |
Height of traction (mm) | 660 | 750 | 750 | 750 | 820 | 820 | 820 |
No.of tyre | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
Distance between wheel (mm) | 1380 | 1750 | 1880 | 1880 | 1880 | 1980 | 1980 |
Distance between axis (mm) | 1640 | 1640 | 1640 | 1830 | 1830 | 1830 | 1830 |
Specification of tyre | 6.50-16-12 | 7.50-16-12 | 8.25-16-12 | 9.00-16-14 | 9.00-20-16 | 9.00-20-16 | 9.00-20-16 |
Way of braking | air or hydraulic braking | air braking or air cutting braking | |||||
Angle of tipping | 45· | 45· | 45· | 45· | 45· | 45· | 45· |
Direction of tipping | towards the left or right |
Company Profile
Yucheng Dadi Machinery Co., Ltd. is a professional manufacturer of agricultural implements with independent import and export rights. Our company earns foreign exchange of 2 million RMB every year and 80% of them are from export. Our chief economic technical indexes keep ahead in the same industry in the domestic market.
At present, our company owns a set of advanced disk heat treatment production line and complete pressing and cutting equipment. In order to meet the demands of both national and international markets, our company invests 70 million RMB in building a new foundry and machining production line with an area of 3.3 hectares. It is planned to produce 500T of castings every month and 80% of them are for export. Our company has advanced equipment, 10 CNC machine tools, 2 processing centers, abundant technical strength, more than 20 technicians and CAD systems.
Our products are light, medium, and heavy series tractor-propelled harrows matched with 12-180KW tractors, light and heave series disk ploughs, various disk ploughs and disks, 9G series mowers, croppers, broadcast seeders, moldboard plows and rotovators. We process as per customers' materials and supplied drawings. All the products sell well in batch in northeast China and Xinjiang in domestic market and are exported to the more than 20 countries and regions, such as Europe, South America, America, and Southeast Asia.
Our company is the special casting company and each kind of cast iron floors sells well all over the world. For the farming of the boars, sows and young pigs, the technology of tenon splicing is applied and cast iron floors can match the plastic floors. The materials mainly include iron QT-400 and ordinary gray iron HT-200/HT-150/HT-250. Our main business products include 400*400 cast iron floor, 400*600 cast iron floor, 600*600 cast iron floor, 1200*600 cast iron floor, 710*620 cast iron floor, 710*620one end covered cast iron floor, 265*620 cast iron floor, 1600*500 cast iron floor, 865*620 cast iron floor, 865*620 one end covered cast iron floor, 1000*685 cast iron floor, 998*654 cast iron floor, 998*570 cast iron floor, 998*570 50% close cast iron floor, 1028*600 50% close cast iron floor, 1028*600 90% close cast iron floor, 1028*600 open cast iron floor, casting bull wheel, casting axle sleeves and countering weight iron.
With the concepts of "quality is the life of enterprise" and "survive by quality and develop by technology and credit", our company sets up favorable enterprise credit in both national and international markets. The management level of our enterprise improves gradually and has passed the evaluation of ISO9001 certification.
Our company will improve the property of products with the precise working style to meet the increasing requirements of the clients. With new appearance, innovative concept, and faithful passion, we hope to cooperate with friends both from at home and abroad to develop new products and create a brilliant future.
