Product Details
Condition: | New | Type: | Farm Cultivator | Power Type: | Other, tractor |
Power(W): | 20-150HP | Certification: | CE | Warranty: | Two years |
Use: | Farm | Place of Origin: | Shandong, China | Brand Name: | dadi |
Model Number: | 1LY(SX) | Weight: | 200-1500KG | Dimension(L*W*H): | many |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Iron cage or according to customer requirements
Product Description

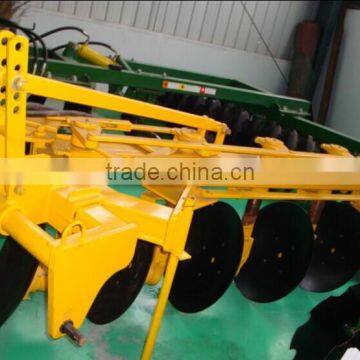

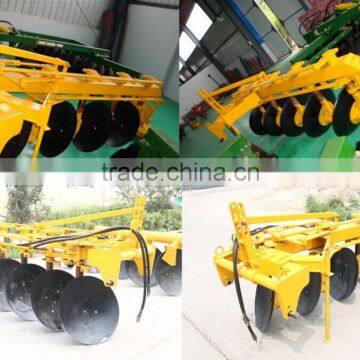

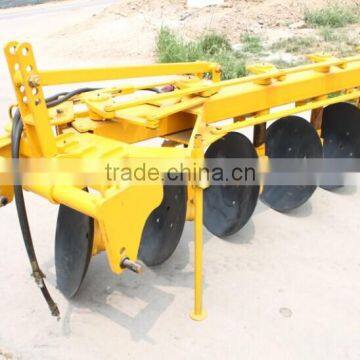

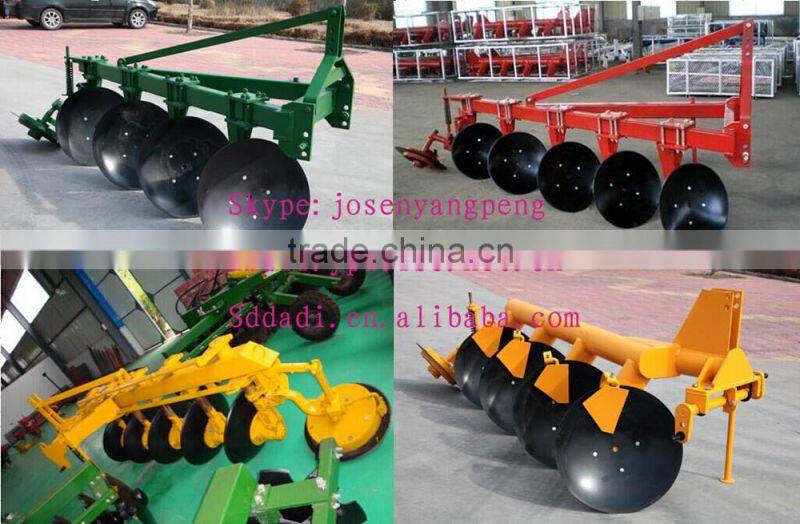

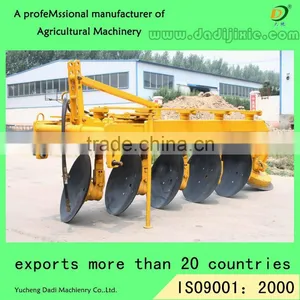

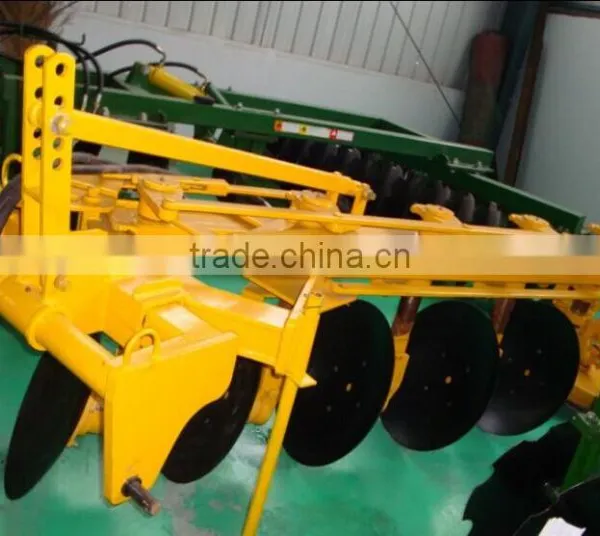

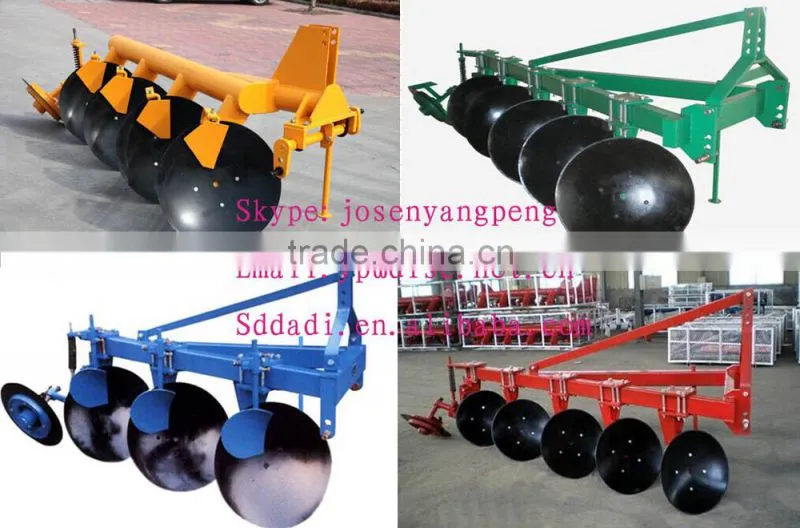

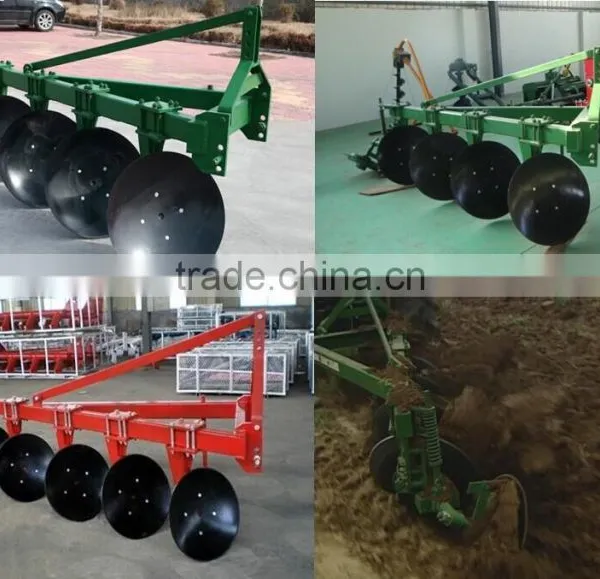

disc plough

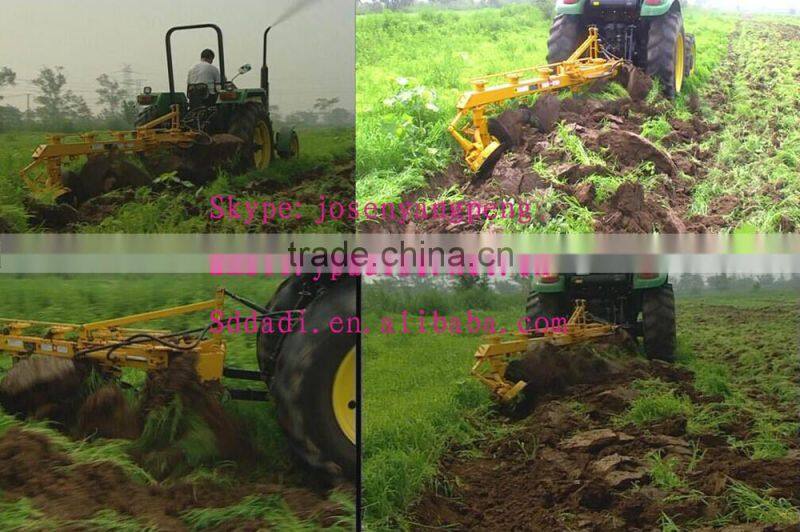

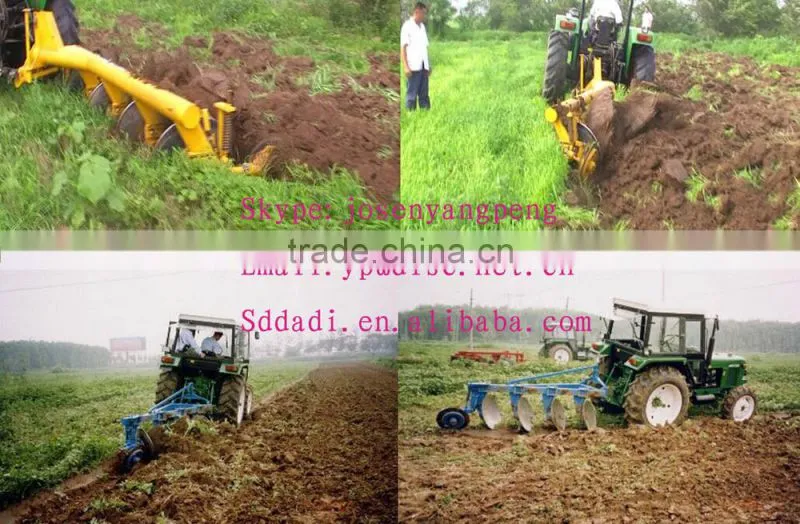

The reversible disc plough is lower cast and higher volume output. The cost for cultivation is paid more and more attention by the customers and to meet this require-ment. Our company developed the series of reversal plough. The plough camber is deeply prefer by the customer all over the country in recent years particularly. The working speed is 8-10km/h.

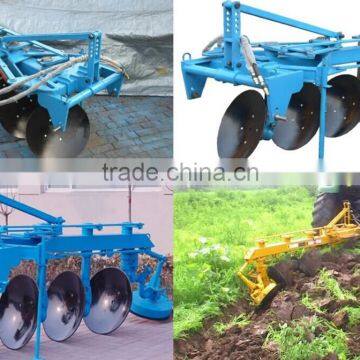

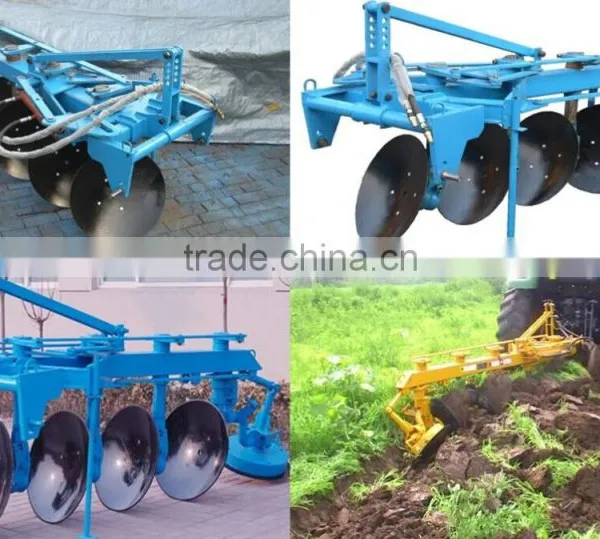

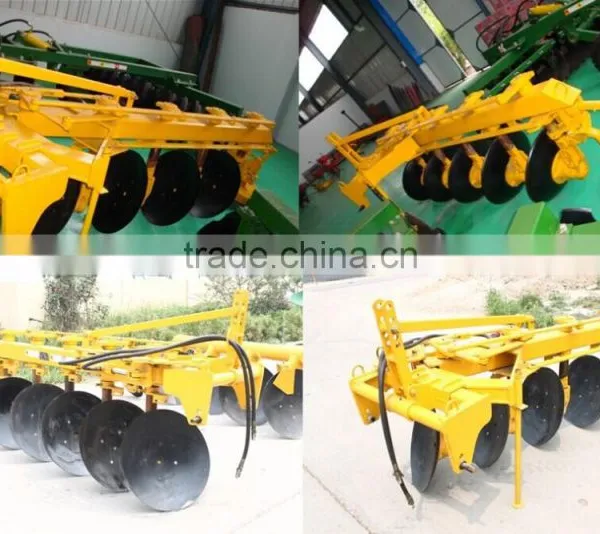

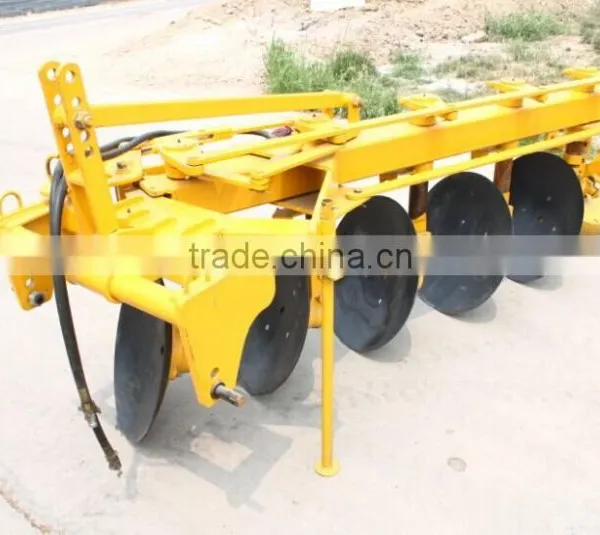

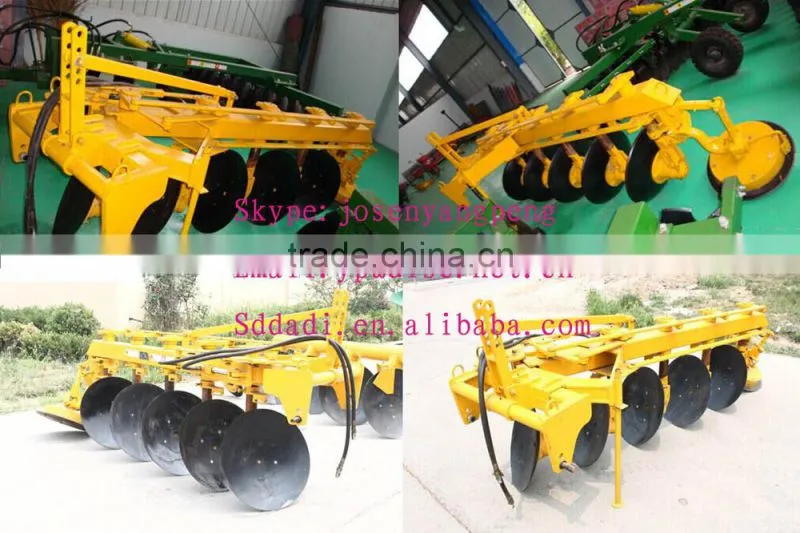

The reversible plough can be mounted to 15-120 HP tractors with 2 ways of reverse-mechanical (J), and hydraulic (Y). Hydraulic reversed plough can be adjusted for the different width and different tractors, the. Hydraulic system is automatically and the operation is smooth without any troubles.

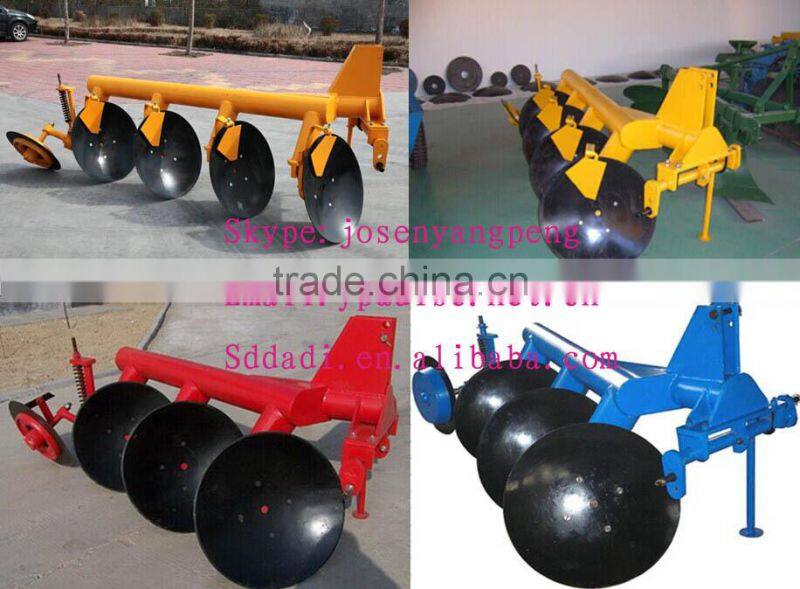

Number | Product Name | Model | Matched Power (Hp) | Weight (Kg) | Working width (M) | Working depth(mm) | Qty. of disc | Dia. of Disc(mm) | Thickness of disc(mm) |
1 | One-way disc plow | 1LS-220Y | hand12-15 | 70 | 0.40 | 200 | 2 | 510 | 5 |
2 | One-way disc plow | 1LYQ-220 | 15-24 | 120 | 0.40 | 200 | 2 | 510 | 5 |
3 | One-way disc plow | 1LYQ-315 | 18-30 | 160 | 0.45 | 180 | 3 | 450 | 4 |
4 | One-way disc plow | 1LYQ-320 | 25-40 | 180 | 0.60 | 200 | 3 | 510 | 5 |
5 | One-way disc plow | 1LYQ-420 | 35-50 | 230 | 0.60 | 200 | 4 | 510 | 5 |
5 | One-way disc plow | 1LYQ-520 | 40-55 | 290 | 0.60 | 200 | 4 | 510 | 5 |
6 | One-way disc plow | 1LY-325 | 50-80 | 430 | 0.75 | 250 | 3 | 660 | 6 |
7 | One-way disc plow | 1LY-425 | 75-105 | 520 | 1.00 | 250 | 4 | 660 | 6 |
8 | One-way disc plow | 1LY-525 | 90-120 | 610 | 1.25 | 250 | 5 | 660 | 6 |
9 | One-way disc plow | 1LY-625 | 100-150 | 720 | 1.50 | 250 | 6 | 660 | 6 |
10 | One-way disc plow | 1LY-725 | 130-160 | 960 | 1.75 | 250 | 7 | 660 | 6 |
11 | Tubular disc plow | 1LY-230 | 40-50 | 350 | 0.60 | 300 | 2 | 710 | 6 |
12 | Tubular disc plow | 1LY-330 | 55-70 | 430 | 0.90 | 300 | 3 | 710 | 6 |
13 | Tubular disc plow | 1LY-430 | 70-100 | 540 | 1.20 | 300 | 4 | 710 | 6 |
14 | Tubular disc plow | 1LY-530 | 80-120 | 650 | 1.50 | 300 | 5 | 710 | 6 |
15 | One-way disc plow | 1LY-225A | 40-55 | 370 | 0.50 | 300 | 2 | 710 | 6 |
16 | One-way disc plow | 1LY-325A | 60-90 | 480 | 0.75 | 300 | 3 | 710 | 6 |
17 | One-way disc plow | 1LY-425A | 80-110 | 591 | 1.00 | 300 | 4 | 710 | 6 |
18 | One-way disc plow | 1LY-525A | 90-120 | 702 | 1.25 | 300 | 5 | 710 | 6 |
19 | One-way disc plow | 1LY-625A | 100-140 | 820 | 1.50 | 300 | 6 | 710 | 6 |
20 | One-way disc plow | 1LY-725A | 150-180 | 1000 | 1.75 | 300 | 7 | 710 | 6 |
21 | Reversible disc plough | 1LY(sx)-325 | 55-90 | 520 | 0.75 | 250 | 3 | 660 | 6 |
22 | Reversible disc plough | 1LY(sx)-425 | 80-100 | 660 | 1.00 | 250 | 4 | 660 | 6 |
23 | Reversible disc plough | 1LY(sx)-525 | 90-120 | 820 | 1.25 | 250 | 5 | 660 | 6 |
24 | Reversible disc plough | 1LY(sx)-625 | 120-150 | 1000 | 1.50 | 300 | 6 | 660 | 6 |
1. Warranty time
1.We can supply samples for customers.
2.We supply you 2 years warranty time.
2. Spare Parts
The Easy-damage parts, we will send you together with the Product for free. And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.
3.Payment way
1. We accept T/T 30% in Advance, and 70% T/T after Shipping.
2. We alos accept L/C at sight
4.More information, please contact us
Company Profile
Yucheng Dadi Machinery Co., Ltd. is a professional manufacturer of agricultural implements with independent import and export rights. Our company earns foreign exchange of 2 million RMB every year and 80% of them are from export. Our chief economic technical indexes keep ahead in the same industry in the domestic market.

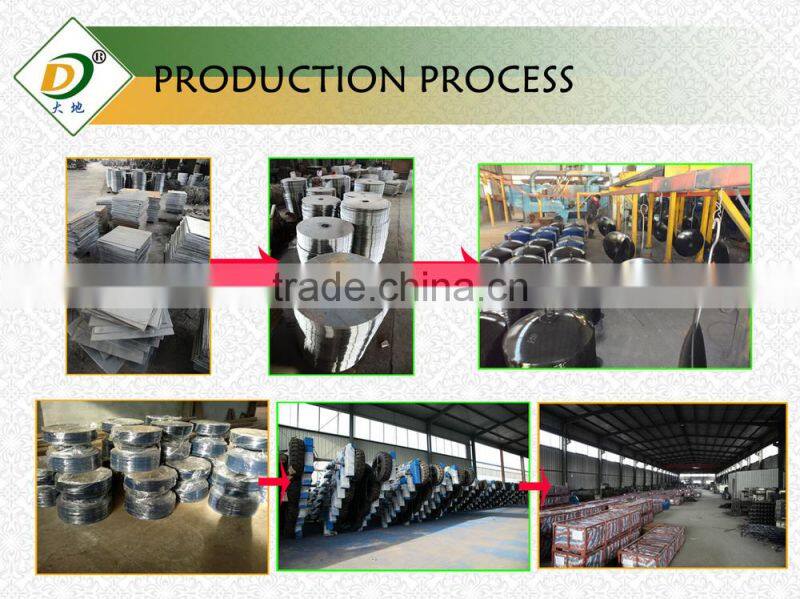

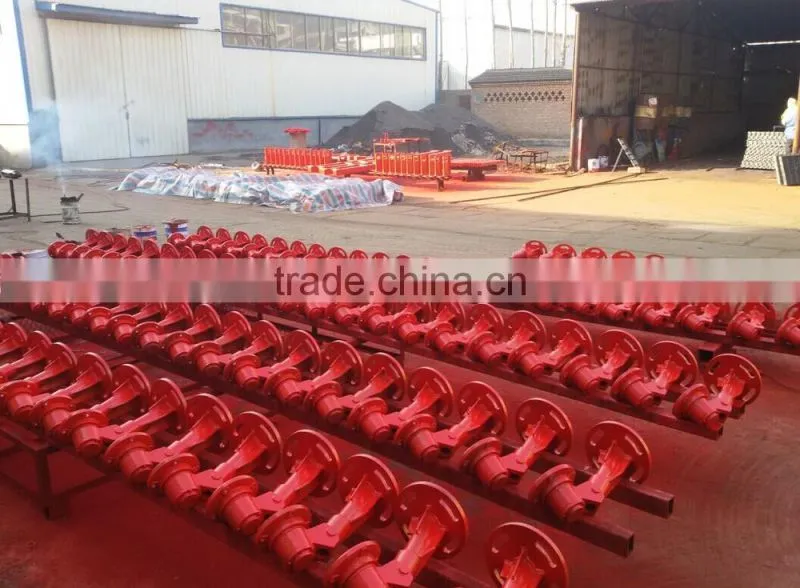

At present, our company owns a set of advanced disk heat treatment production line and complete pressing and cutting equipment. In order to meet the demands of both national and international markets, our company invests 70 million RMB in building a new foundry and machining production line with an area of 3.3 hectares. It is planned to produce 500T of castings every month and 80% of them are for export. Our company has advanced equipment, 10 CNC machine tools, 2 processing centers, abundant technical strength, more than 20 technicians and CAD systems.
Our products are light, medium, and heavy series tractor-propelled harrows matched with 12-180KW tractors, light and heave series disk ploughs, various disk ploughs and disks, 9G series mowers, croppers, broadcast seeders, moldboard plows and rotovators. We process as per customers' materials and supplied drawings. All the products sell well in batch in northeast China and Xinjiang in domestic market and are exported to the more than 20 countries and regions, such as Europe, South America, America, and Southeast Asia.
Our company is the special casting company and each kind of cast iron floors sells well all over the world. For the farming of the boars, sows and young pigs, the technology of tenon splicing is applied and cast iron floors can match the plastic floors. The materials mainly include iron QT-400 and ordinary gray iron HT-200/HT-150/HT-250. Our main business products include 400*400 cast iron floor, 400*600 cast iron floor, 600*600 cast iron floor, 1200*600 cast iron floor, 710*620 cast iron floor, 710*620one end covered cast iron floor, 265*620 cast iron floor, 1600*500 cast iron floor, 865*620 cast iron floor, 865*620 one end covered cast iron floor, 1000*685 cast iron floor, 998*654 cast iron floor, 998*570 cast iron floor, 998*570 50% close cast iron floor, 1028*600 50% close cast iron floor, 1028*600 90% close cast iron floor, 1028*600 open cast iron floor, casting bull wheel, casting axle sleeves and countering weight iron.
With the concepts of "quality is the life of enterprise" and "survive by quality and develop by technology and credit", our company sets up favorable enterprise credit in both national and international markets. The management level of our enterprise improves gradually and has passed the evaluation of ISO9001 certification.
Our company will improve the property of products with the precise working style to meet the increasing requirements of the clients. With new appearance, innovative concept, and faithful passion, we hope to cooperate with friends both from at home and abroad to develop new products and create a brilliant future.
