heavy duty automatic electrical linear actuator with 12v or 24v dc and 1K/5K/10k potentiometer

FOB Price

USD $20 - $30 / Piece

1 Piece(Min.Order)

Supply Ability 50000 Pint / Pints per Month
Port Ningbo
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	huifeng	Model Number:	HF-TGA-A-DW
Usage:	Boat, Car, Electric Bicycle, Fan, Home Appliance, Other, Boat, Car, Electric Bicycle, Fan, Home Appliance, skylight	Certification:	CCC, CE, ROHS	Type:	Micro Motor
Torque:	Requests	Construction:	Permanent Magnet	Commutation:	Brush
Protect Feature:	Waterproof	Speed(RPM):	4500	Continuous Current(A):	0.8(A)
Output Power:	20W	Voltage(V):	12V/24V/36V/48V	Efficiency:	IE 3

Product Description

Product Application

Small motor actuator with ACME screws, built-in Micro switch and an internal diode, can automatically stop and enables the change of direction by simply reversing the applied voltage polarity. Stroke length can be customized. Switches are not made to be adjustable. Inversely proportional to the speed and power. Position feedback is possible.

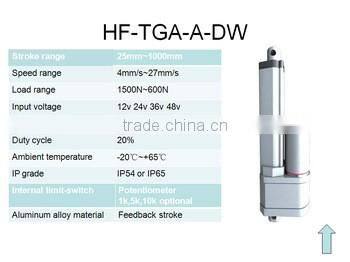

SPECIFICATIONS FOR LINEAR ACTUATOR
	Stroke	50mm、100mm、150mm、200mm......
	Retracted length	190mm、240mm、290mm、340mm......
	extended length	240mm、340mm、440mm、540mm......
HF-TGA-A-DW	Speed	4mm、7mm、10mm、13mm、16mm......
	Input voltage	12V、24V、36V、48V
	Load	200N、400N、600N、800N、1000N......
	Max static load	3000N
	IP grade	IP 65
	Duty cycle	20%

Main Features

1) Simple structure in linear type ,easy in installation

2) Adopting advanced components in electric and machanical parts.

3) Limit switch to control the opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Wireless or hand control is available

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing

Packaging
carton box

Packaging
wooden box
