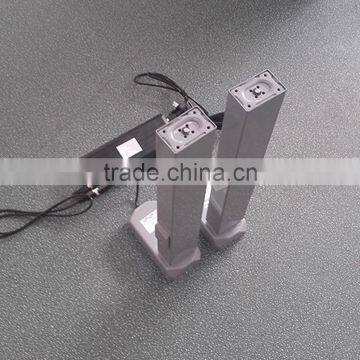

Three Segment Lifting Column for Electric Table

l SPECIFICATIONS:

v INPUT: 110- 230VAC

v OUTPUT:   18VDC

v LOAD CAPACITY:   800N* 2

v MAX SPEED:     36mm/sec

v STADARD STROKE:  635mm/ 25 inch

v MOUNTING DIMENSION: 575mm

v DUTY CYCLE: 10%

v INNER LIMIT  SWITCH

v OPERATION TEMPERATION: - 26°c- 65°c

Note:

Dual lifting columns means two lifting columns works at the same time(synchronous).

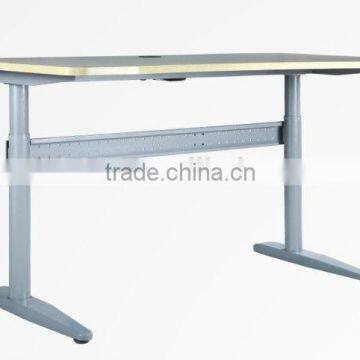

It is widely used for Automation Electric Desk

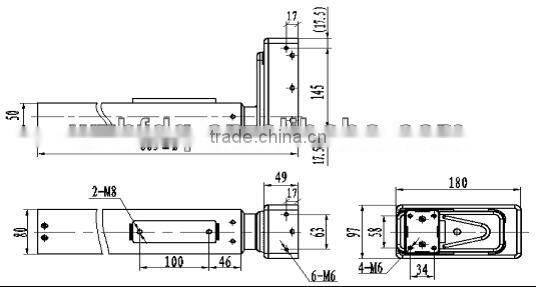

Drawing:( metric dimension)

Before you placing an order, please let me know your special requirements.

Our sales engineer will give reasonable  solution and competitive price.

Welcome your customized order.
