BL..D/BD Series Ball joint rod ends
- 50000 Piece / Pieces per Month
- shanghai ningbo
- T/T
Product Details
Brand Name: | CB | Bore Size: | 6, 16 | Model Number: | BL..D/BD |
Place of Origin: | Zhejiang, China | Precision Rating: | high precision |
Packaging Details
standard export package
Product Description
Specifications
BL..D/BD Series ball joint rod ends apply to transportation vehicle, packaging machinery, agricultural machinery, ect.CHINABASE BL..D(BD) Series Ball Joint rod ends
Technology Condition:
1. Circle swing agilely without any blocked
2. Spherical surface clearance: Vertical angle of axes 0.02~0.65mm, Axes Direction <= 0.3m.
3. Precision of screw thread grades "6H"
4. ball joint shaft: steel bearing, shaft C35, 40Cr steel
5. Ball joint housing: high rigidity Zn synthetic material
6. work on -40°C~120°C temperature. excellent performance.
7. Standard reference: QC/T327-1999&other relative standard.

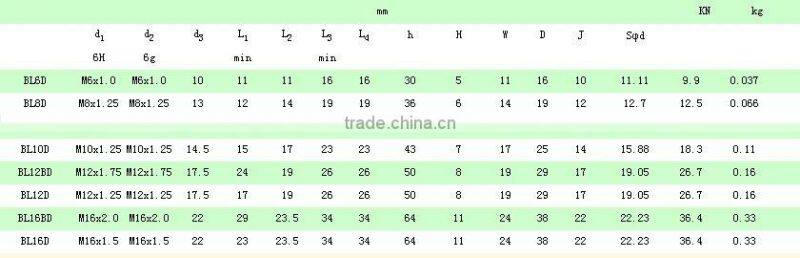

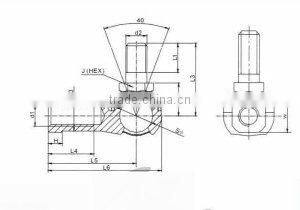

Detail dimensions:
Company Profile
Hangzhou Chinabase Machinery Co., Ltd. is a group of manufacturing facilities, specialize in power transmission products, CATV products, mechanical seal, hydraulic and Pheumatic, and promotional products.
we offer one-stop solution for the purchase of mechanical power transmission products in China. We can supply a full-range of power transmission products like chains, sprockets and plate wheels, pulleys, gearboxes, motors, couplings, gears and racks. Our product range also covers locking assemblies (clamping elements/locking device), taper bushes, QD bushes, bolt-on hubs, torque limiters, shaft collars, motor bases and motor slides, chain detachers, chain guides, universal joint, rod ends and yokes. More importantly, we make special parts according to supplied drawings/samples and warmly welcome OEM inquiries.
We offer full solutions for the purchase of CATV equipments in China. As a leading CATV equipment provider, we supply and source complete series of CATV equipments and components for your customers. Our product ranges from digital receiving equipments to most of cable and optic fiber transmission equipments. It includes satellite receiver and antenna, frequency modulator and channel mixer, optic laser transmitter, 1,550nm EDFA, optic receiver, optic work and relay station, amplifier, tap and splitter, patch cord, adaptors and attenuators, coaxial cables and others. Due to our wide product range and rich experiences in this industry, we are confident to provide our customers flexible and diversified services.
we supply chromed bar and tubes for hydualic and pheumatic cylinders.
With many years' experience in these lines, we have been distinguished from other suppliers in China by our advantages in competitive pricing, on-time delivery, prompt responses, on-hand engineering support and good after-sales services. Additionally, all our production procedures are in compliance with ISO9002 standards.
Our company pays particular attention to customers' needs, listening to the specific requirements of each customer and guaranteeing total satisfaction.
