Fiberglass Mesh for wall insulation

Specifications

Fiberglass Mesh for wall insulation
1. weight: 50g-165g/m2
2. color: white, blue, yellow, green
3. roll size:1x50m

Fiberglass Mesh For Wall Insulation







we can produce special size fiberglass mesh according to your requirements, like different mesh size and weight

per square meter.





1. Fiberglass mesh is mainly alkaliresistant fiberglass fabric, it made of the C or E glass fiber yarn (main ingredient

is a silicate, good chemical stability) through a special weaving technique, then coated by the antialkali and reinforcing

agent and treated by high temperature heat finishing. Its ideal engineering material in construction and decoration industry!





2. Features



(1). alkaline-resistant



(2).high tensile strength



(3).good cohesion



(4).can firmly combine with EPS board.







3. Application



(1). 75g / m2 or less: Used in the reinforcement of thin slurry, to eliminate small cracks and scattered throughout the surface pressure.



(2).110g / m2 or about: Widely used in indoor and outdoor walls, prevent the various materials (such as brick, light wood, prefabricated structure) of treatment or caused by a variety of expansion coefficient of wall crack and break .



(3).145g/m2 or about: Used in the wall and be mixed in various materials (such as brick, light wood, prefabricated structures), to prevent cracking and scatter the whole surface pressure, especially in the external wall insulation system (EIFS ).



(4).160g / m2 or about: Used in insulator layer of reinforcement in the mortar, through shrinkage and temperature changes by providing a space to maintain movement between the layers, prevent crack and rupture due to shrinkage or temperature change.







4. Specification:





Mesh: 2.5mm*2.5mm---10mm*10mm



Weight: 45g/m2---260g/m2



Color:white. green, orange, biue and so on.



Roll length: 50/roll, 100m/roll.



Other specification is available upon request.





5. Price zone: 0.15-0.25USD/m2 FOB tianjin





6. Package



each fiberglass mesh roll is put in PVC bag, and then put in to carton or pallets.





7. Payment



TT100%, or TT 30% in advance,TT70%after loading goods on board.





Fiberglass Mesh Picture:

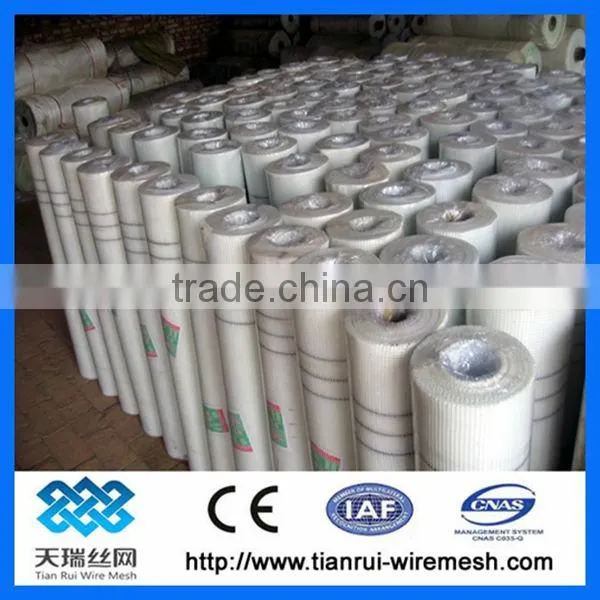

a. white color fiberglass mesh





b. blue color fiberglass mesh





c. orange color fiberglass mesh





d. green color fiberglass mesh





e. fiberglass mesh packing









f. self-adhesive fiberglass mesh tape
