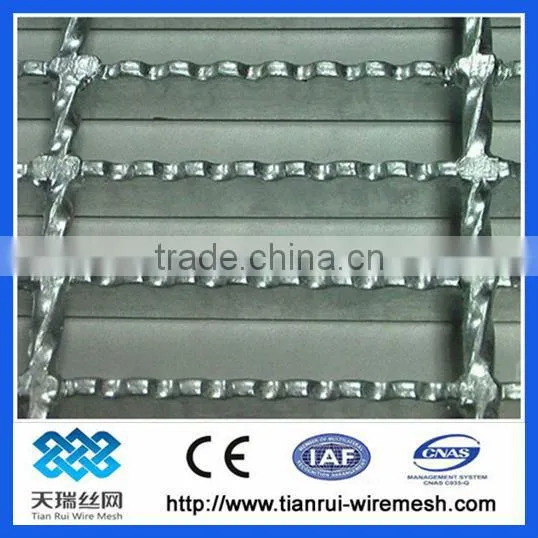

hot galvanised steel bar grating grid steel frame lattice

Specifications

1>hot dipped galvanized steel frame lattice
2>ISO9001
3>direct manufacturer
4>high quality
5>various types

                                                     Steel frame lattice

Material:

high-intension carbon steel plate and galvanized iron plate
Characteristics:

light weight, high bearing capacity, safe and skid-proof, easily fixed and dismantled, economical ,long life and durable, ventilated and penetration of light, easily to be cleaned, beautiful in appearance.
Application:

Widely used in electricity, petrochemical and chemical industry, metallurgy, machines, modeling, port, marine engineering, construction, papermaking, medicine, textile, food industry, transportation, municipal administration, parking-lot and some other fields. Also can be used as platform, floor, propylaea, stair step, trestle, fence wall and palisade, bilge limber board, well cover, suspended ceiling, ventilation and penetration of light, etc.







Specification:



Cross Rod Pitch	load Bar Pitch	load Bar Specification(Width×Thickness)
		20×3	25×3	32×3	40×3	20×5	25×5
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
60	50	-	G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Cross Rod Pitch	load Bar Pitch	load Bar Specification(Width×Thickness)
		32×5	40×5	45×5	50×5	55×5	60×5
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50





























Packaging Detail:



normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides.there are four or six pieces of M10 long bolt penetrading the gratings and screwing together.it is suitable for loading and unloading by fork-lift and crane, or as customer requirement.









If you have any other enquire of the steel frame lattice please contact us in your time, we are glad to give service to you.
