razor barbed wire/concertina wire for sale

Specifications

Hot dipped galvanized razor barbed wire
1.wire dia:BWG12-BWG20
2.barbed distance:7.5-15mm
3.barbed length:1.5-3mm

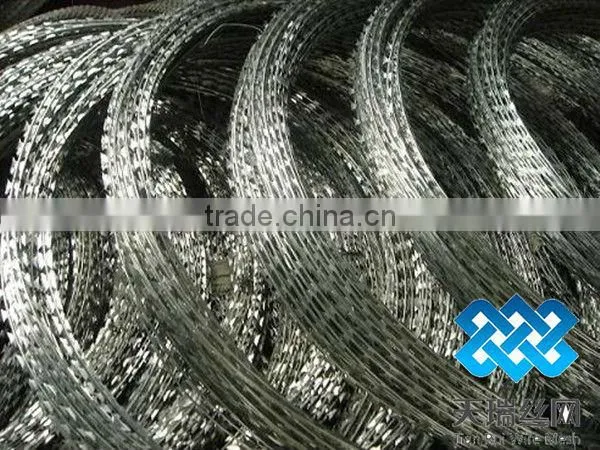

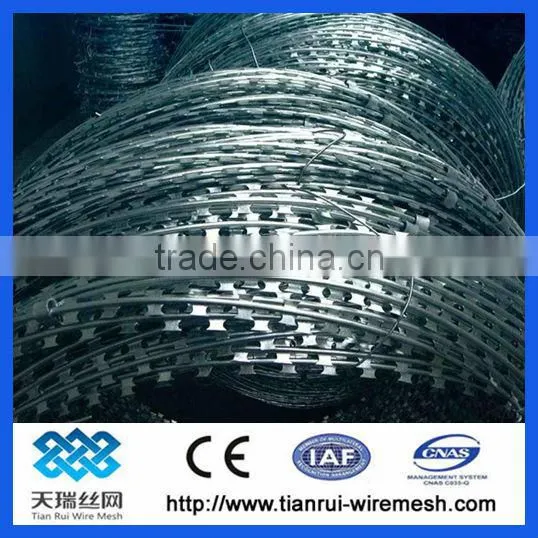

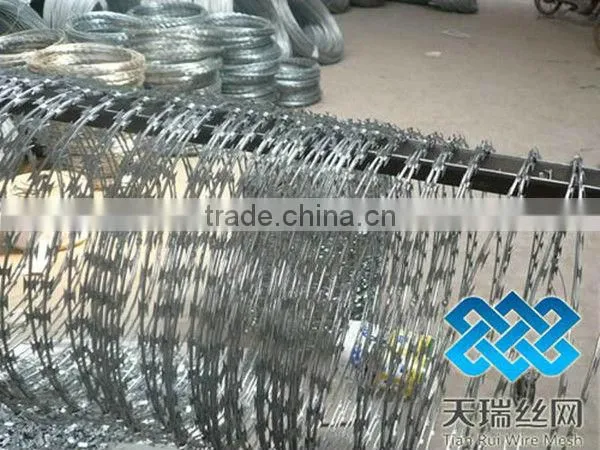

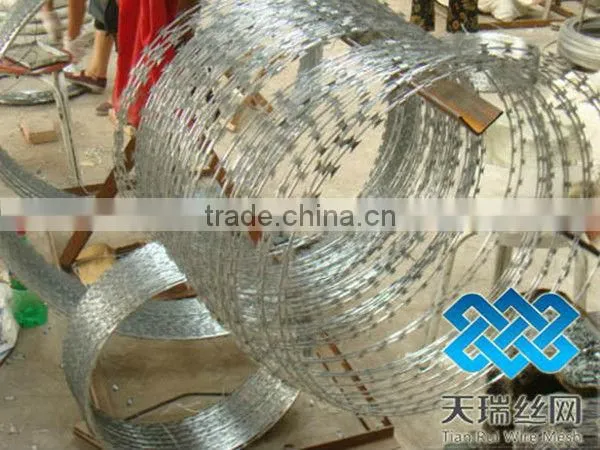

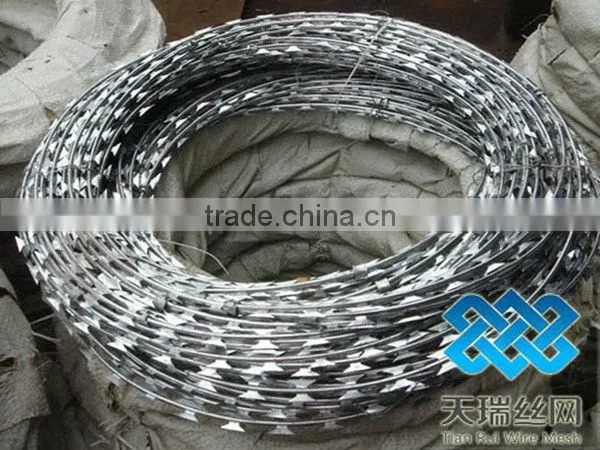

                                                   Razor barbed wire



Razor barbed wire fencing is usually made of galvanized steel blade or stainless steel blade.

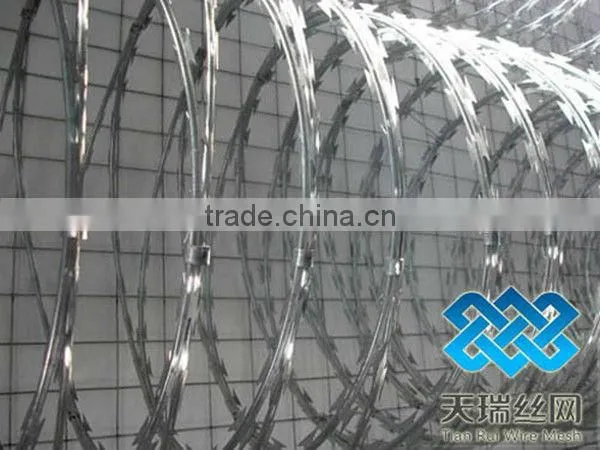

Two pieces of stainless steel razor wire or zinc-coated razor wire can be bounded together

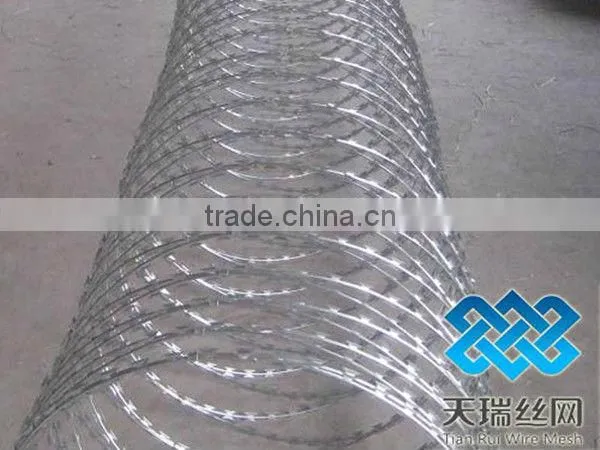

by clips to make it stronger. The spiral intersecting barbed wire presents an intersecting shape

after opening with beautiful outlook and practical property

Materails:

High quality low carbon steel wire, PVC wire , the color have blue ,green, yellow,etc.

Features:

razor barbed wire is also named Tape Wire, Razor Tape Wire, Barbed Tape or Barbed Tape

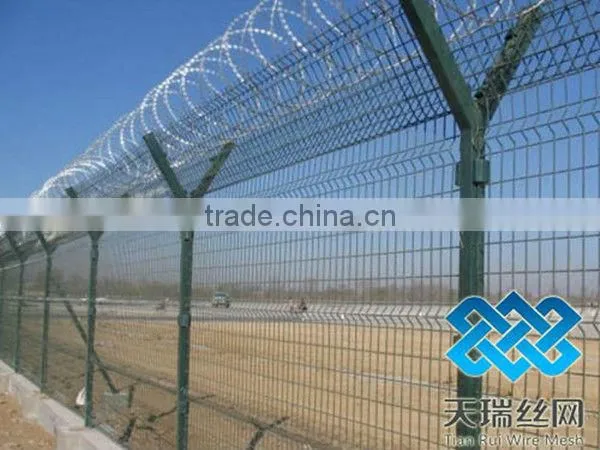

Wire. It can be installed to achieve the result of frightening and stopping to the aggressive

perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also

the special designs making climbing and touching extremely difficult. The wire an  d strip are

galvanized to prevent corrosion.

Application:

Razor barbed wire is widely used by in military field, prisons, detention houses, government

buildings and other national security facilities; it is also used as fence for cottage and society

fence, and other private buildings





Specification:



Reference Number	Thickness	Wire Dia	Barb Length	Barb Width	Barb spacing
BTO-12	0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18	0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22	0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28	0.5±0.05	2.5	28	15	45±1
BTO-30	0.5±0.05	2.5	30	18	45±1
CBT-60	0.6±0.05	2.5±0.1	60±2	32±1	100±2
CBT-65	0.6±0.05	2.5±0.1	65±2	21±1	100±2





Outside Diameter	No. of Loops	Standard Length per Coil	Type	Notes
450mm	33	8M	CBT-65	Single coil
500mm	41	10M	CBT-65	Single coil
700mm	41	10M	CBT-65	Single coil
960mm	53	13M	CBT-65	Single coil
500mm	102	16M	BTO-10.15.22	Cross type
600mm	86	14M	BTO-10.15.22	Cross type
700mm	72	12M	BTO-10.15.22	Cross type
800mm	64	10M	BTO-10.15.22	Cross type
960mm	52	9M	BTO-10.15.22	Cross type
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO) Standard materials are either galvanized or stainless steel. Standard packages products are shown in the tables above, special specifications available on request.





























Packing Detail:

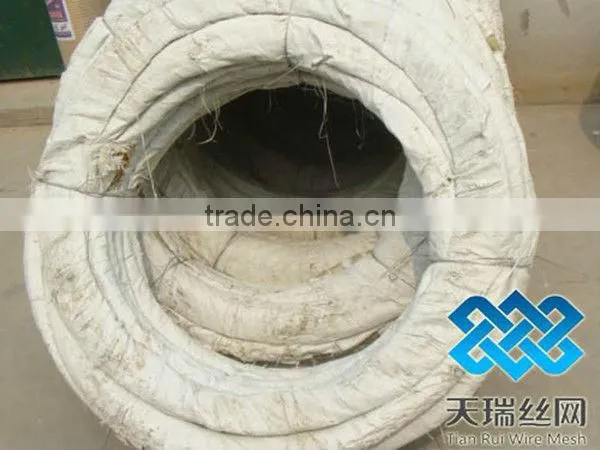

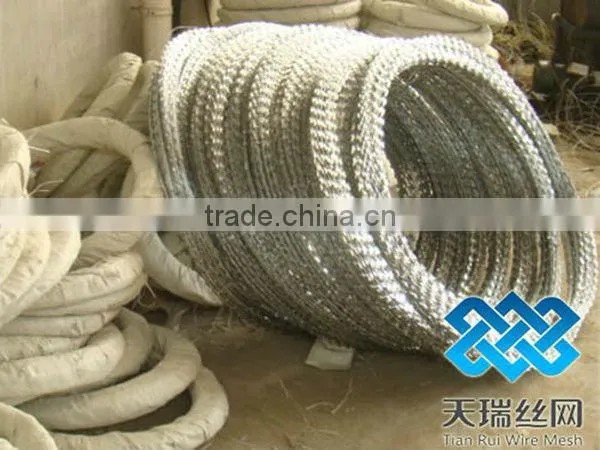

Packed in waterproof plastic bag, then with pallet or as customers’ require.





If you have any other enquire of the razor barbed wire please contact us in your time, we are glad to give service to you.
