GI Steel Structural Composite Corrugated Metal Floor Decking/steel floor decking from China supplier

Model WZH-AC-2015-FD688

Tile: YX76-344-688

Total width: 688mm

 Length:  1m to 11.8m

 Zinc coating: 80g/m2 to 180g/m2

 Standard:  ASTM,JIS,GB,DX51D

 wave pitch: 76mm

wave space: 344mm

Model WZH-AC-2015-FD720

Tile: YX51-240-720

Total width: 720mm

Length:  1m to 11.8m

Zinc coating: 80g/m2 to 180g/m2

Standard:  ASTM,JIS,GB,DX51D

wave pitch: 51mm

wave space: 240mm

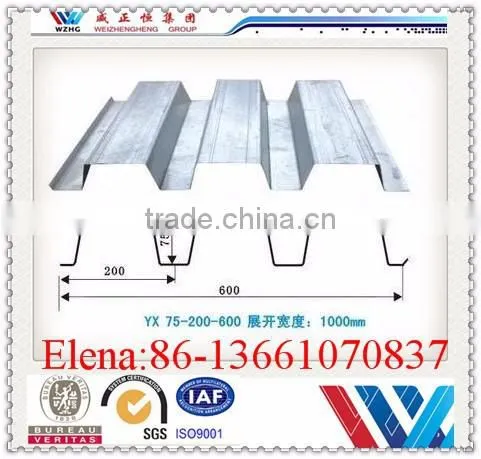

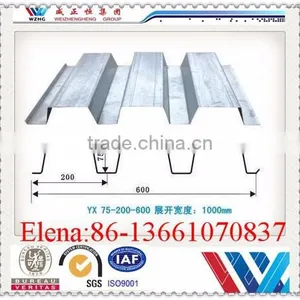

Model WZH-AC-2015-FD600

Tile: YX75-200-600

Total width: 600mm

Length:  1m to 11.8m

Zinc coating: 80g/m2 to 180g/m2

Standard:  ASTM,JIS,GB,DX51D

wave pitch: 75mm

wave space: 200mm

Model WZH-AC-2015-FD1025

 Tile: YX51-342-1025

Total width: 1025mm

 Length:  1m to 11.8m

 Zinc coating: 80g/m2 to 180g/m2

 Standard:  ASTM,JIS,GB,DX51D

 wave pitch: 51mm

 wave space: 342mm

Application:
Outdoor: roof, roof structure, surface sheet of balcony, frame of window, door, door of garage, roller shutter door, booth, Persian blinds, cabana, refrigerated wagon and so on.
Indoor: door, isolater, frame of door, light steel structure of house, sliding door, folding screen, ceiling, internal decoration of toilet and elevator.
Notes for processing of color coated steel sheet

Processing flow

Manual Uncoiler — Entry Beach — Roll Forming Machine — Automatic Shearing Mechanism — Computer Control Cabinet —Run-out Tables

The installation way:

A : By weldeding procedure, the steel decking floor sheet is fusion welded on the steel beam

B : The connections of steel floor decking hseet is fixed by clamp

C : Nails is fixed on the composite wind beam by welding gun

D : Department will meet with a gun fixation nail scissors

E : colligate steelfabric as the desgin requirement

F : bolt pouring

Advantages

 1)      light in weight, high intensity,huge loading capacity as well as good anti-earthquake capacity

 2)      simple in construction operation, easy to install

 3)      can take place of conventional templates and eliminate the disadvantages of the traditional

 4)      can act as a part of the structure of weight bearing, to reduce the cost of material

 5)      enable easy operation in reinforecement, wiring, piping floor decking steel sheet is roll formed by roll forming machine, mainly using galvanized steel, at thickness 0.8-1.2mm, simple shape with high rip and high strength.

 6)      Put the panel above the welded wire net, fill cement between them
