Home > Products > Filling Machine-Carbonated drink > carbonated Drink Filling Processing Line/filling machine

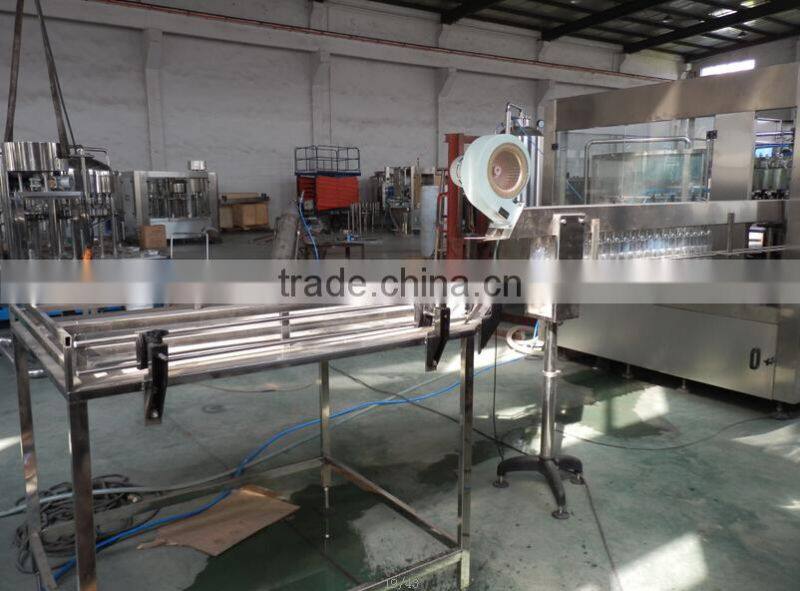

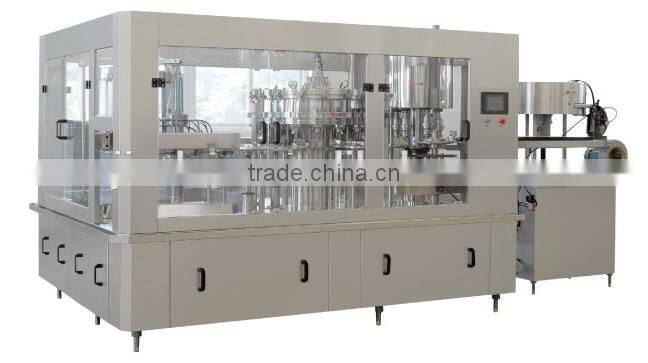

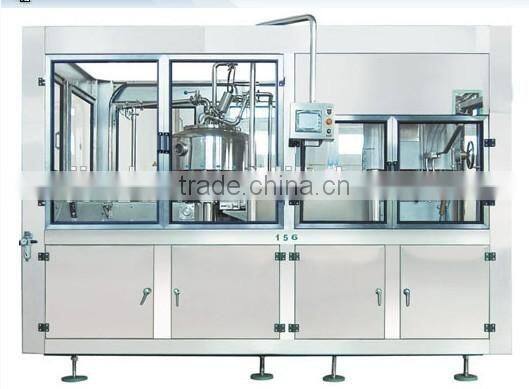

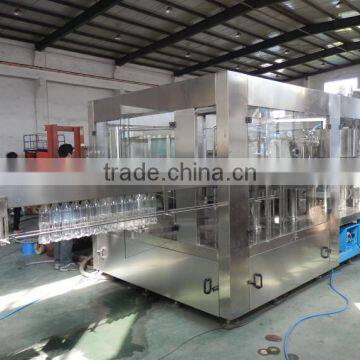

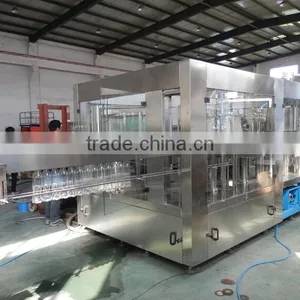

carbonated Drink Filling Processing Line/filling machine
- 30 Unit / Units per Month
- SHANGHAI
- T/T
Product Details
| Condition: | New | Application: | Beverage | Packaging Type: | Barrel, Bottles |
| Packaging Material: | Plastic, Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
| Place of Origin: | Jiangsu, China | Brand Name: | JZ | Model Number: | DCGF |
| Certification: | ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
carbonated Drink Filling Processing Line
carbonated Drink Filling Processing Line Feature :
- This cola drink filling machine is mainly used in the carbonted beverage filling with gas.
- It is mainly used in washing, filling and sealing carbonated beverage such as carbonated drinks, cola, iced tea and carbonated drink water and so on.

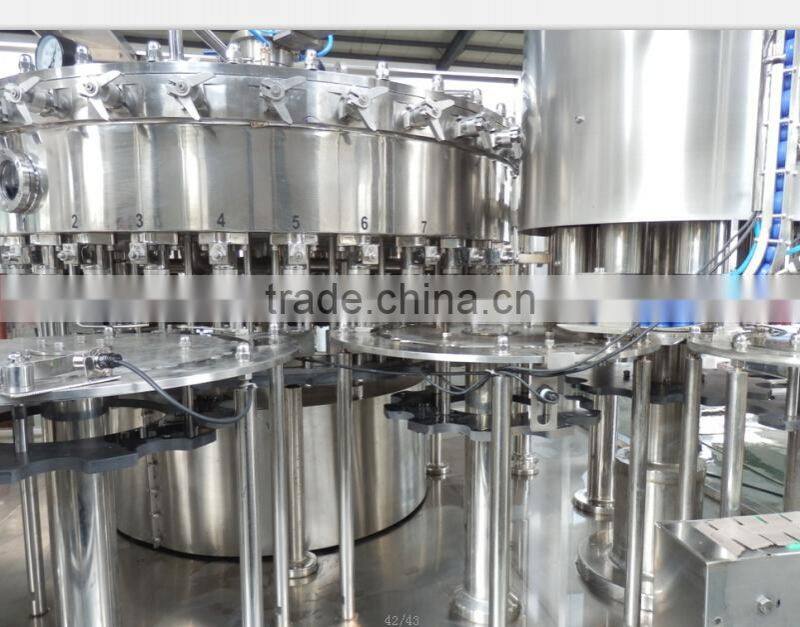

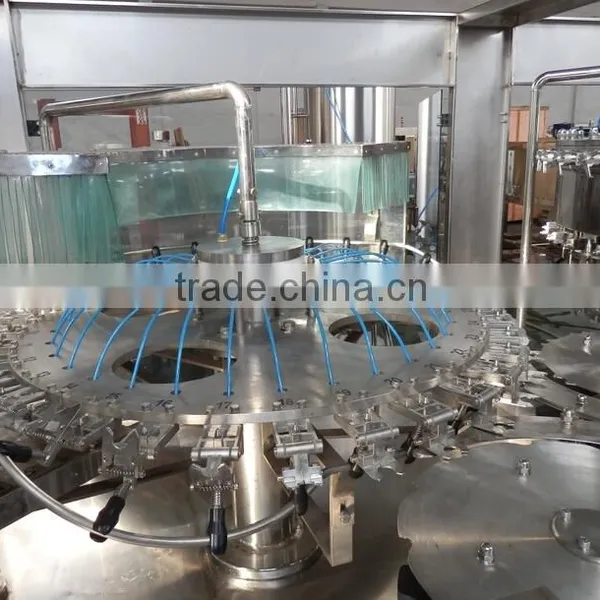

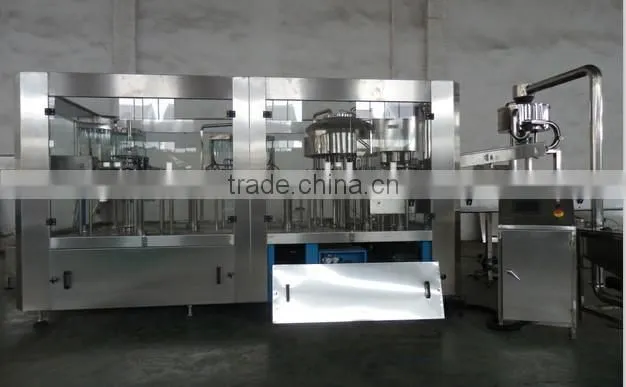

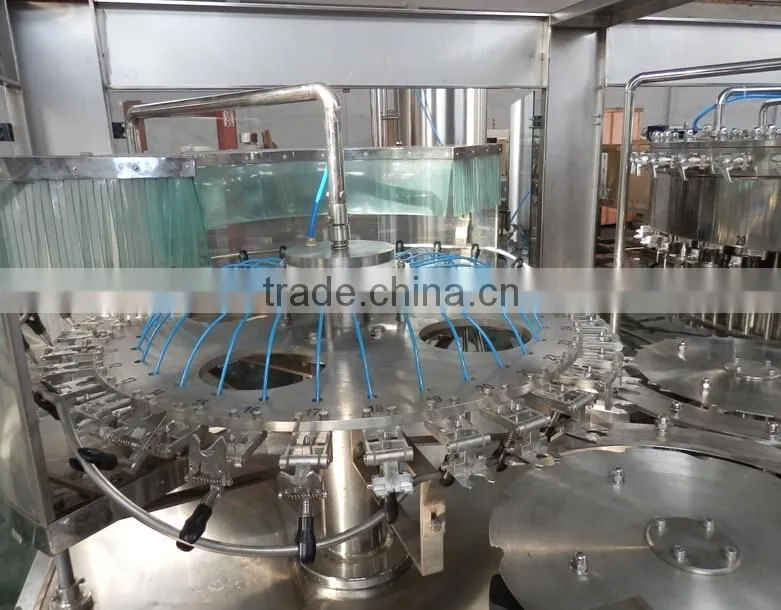

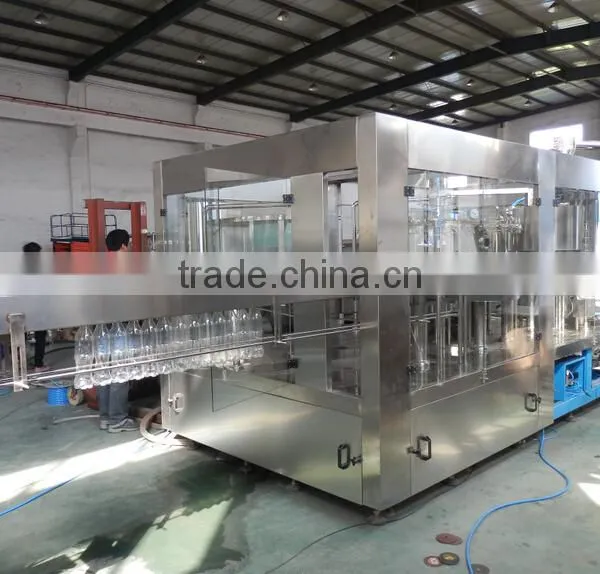

- It is composed by rotary washer, balanced pressure filler, screw type sealer and conveying system. The automatic carbonated beverage filling machine capacity is from 8000b/h to 15000b/h
- The cola drink filling machine construction is advanced, The performance is stable. The operation and maintain are easy. And the speed of automatic carbonated beverage filling machine can be adjusted infinitively and accords with the standards.
carbonated Drink Filling Processing Line Application:
1.The series equipment is used in production gas containing water of PET polyester bottle-packing carbonated beverage, such as Coca cola, Pepsi-cola, Spirit drink etc.
2.It carries out washing bottle, filling and capping on one machine. The whole machine designing is reasonable. The appearance is beautiful and the maintenance is convenient.
3.It adopts bottle handing technology to make changing bottle more convenient, faster and easier. The main machine adopts advanced PLC control ,Touch screen and no-bottle, no-cap system.
4.The key electric elements are from famous international brand.
carbonated Drink Filling Processing Line Technical parameter:
| Model | DCGF16-12-6 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 | DCGF40-40-12 |
| Production Capability(b/h) | 2000-3000 | 3000-5000 | 5000-7000 | 7000-10000 | 10000-15000 |
| Filling precision | ≤+5mm(Liguid Level) | ||||
| Filling pressure | ≤0.4 | ||||
| Suitable cap shape | Plastic Screw Cap | ||||
| PET bottle specification | (Bottle diameter):Ø50- Ø100;(Height):150-310 | ||||
| Total Power | 4.4 | 5.2 | 6.2 | 6.2 | 7.5 |
| Dimension(mm) | 2250×1650×2250 | 2600×1965×2250 | 2980×2200×2250 | 3880×2200×2250 | 4000×2250×2500 |
| Weight(kg) | 2500 | 3500 | 4500 | 6000 | 7200 |
relative production
water filling machine

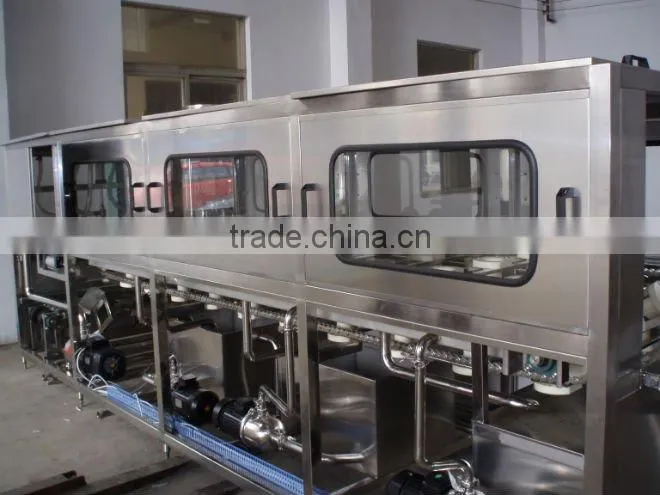

5 gallon water filling machine
