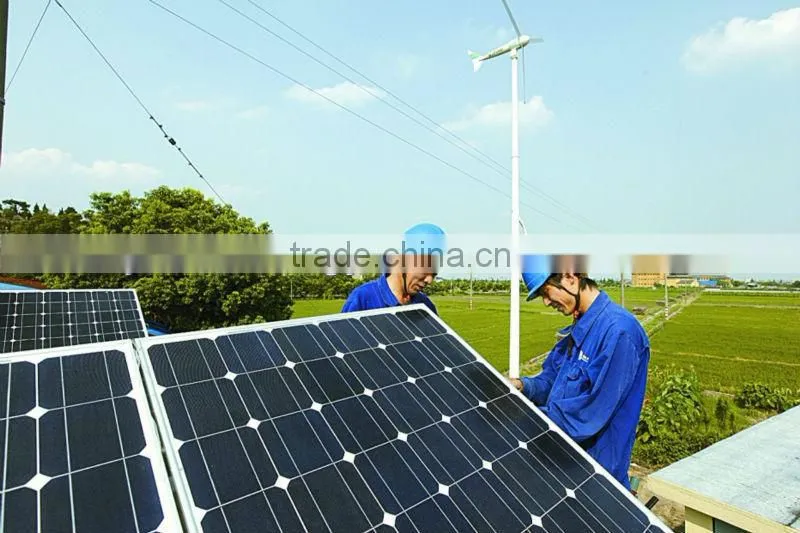

5kw wind and solar hybrid power system

***Our company can accordingto your requirements to design 300w~100kw wind turbine and solar panel hybrid power system.

Welcome to Enquire.***

Structure:

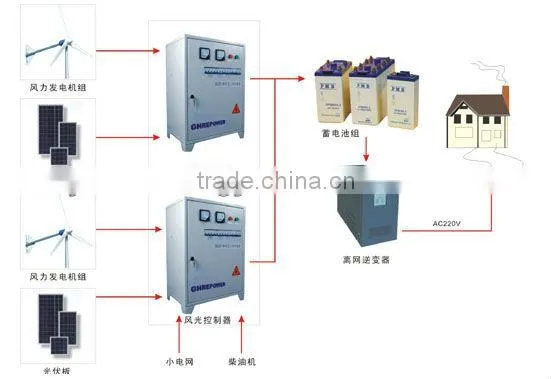

Wind solar hybrid system is mainly composed of wind turbine, solar photovoltaic battery, controller, storage battery, inverter, ac dc load components, such as system structure diagram as shown in the appended drawings. The system is a concentration of a variety of energy sources such as wind, solar and battery power generation technology and intelligent control technology for the integration of renewable energy generation systems.

Advantage:

(1) wind power generation is using wind turbines to transform wind energy into mechanical energy, from wind generator converts mechanical energy to electrical energy, again through the controller for battery charging, through the inverter to the load power supply;

(2) the photovoltaic solar panels, photovoltaic effect converts light energy to electrical energy, then the battery, through the inverter power supply converts direct current (dc) to alternating current to the load;

(3) inverter system is composed of several inverters, standard of the storage battery dc into 220 v alternating current (ac), to ensure that the ac load equipment normal use. At the same time also has automatic voltage stabilizing function, can improve the quality of power supply wind-light complementary system;

(4) control part according to the variation of sunshine intensity, wind load and the size of, constantly on the working state of the battery switch and adjust: on the one hand, the adjusted energy directly to dc or ac load. On the other hand, the excess electricity to the battery storage. Capacity can not meet the needs of the load, the controller of the battery power sent to a load, ensure the continuity and stability of the whole system work;

(5) the battery part is composed of multiple pieces of battery, at the same time in the system energy regulation and load balance two effect. It will wind power systems and photovoltaic power generation system output of electricity is converted into chemical energy storage, in case of insufficient power supply.

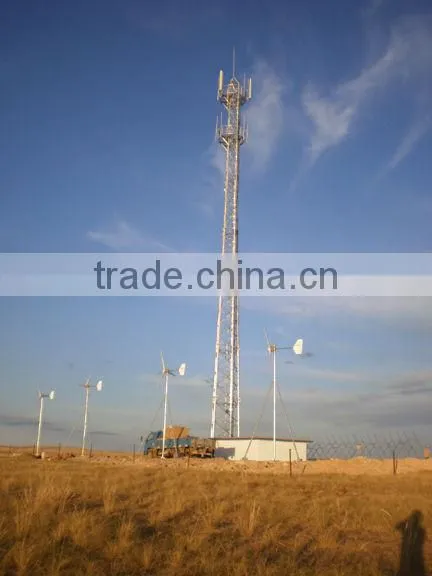

Wind solar hybrid system changes according to wind and solar radiation, can be in the following three modes: wind turbine power supply to the load separately; Photovoltaic power generation system supply power to load separately; Wind turbines and photovoltaic power generation system combined supply power to load.

Wind solar hybrid sytem than single wind power or solar power generation has the following advantages:

Low utilization of wind power and solar energy complementary, can obtain relatively stable output, the system has high stability and reliability;

In guarantee under the condition of the same power supply, can greatly reduce the storage capacity of the battery;

Through the reasonable design and matching, can basically by power supply wind-light complementary system, basic don't little or start the standby power, such as diesel generator set, can obtain good social benefits and economic benefits.
