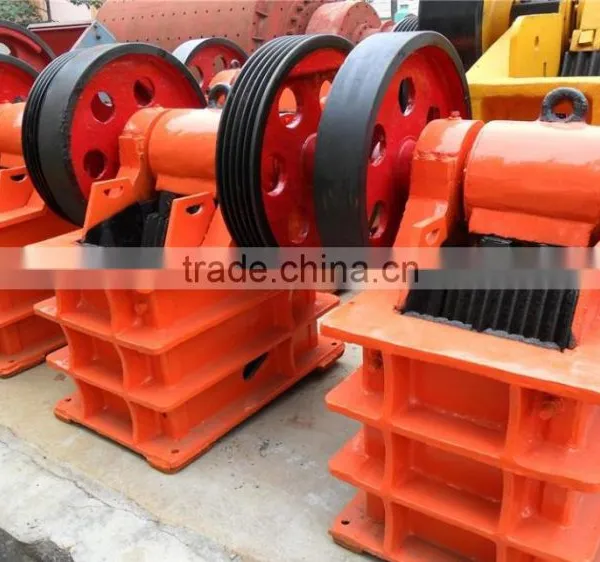

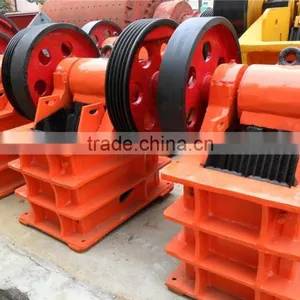

good performance PE 400X600Z mobile jaw stone crushing machine for primary and secondary stone crushing

Specifications

PE 400X600Z mobile jaw stone crushing machine
1. reversible jaw plate
2. heat-treated forged eccentric shafts
3. high efficie

PE 400X600Z mobile jaw stone crushing machine for primary and secondary stone crushing

brie description

1.ISO9001:2000
2.Price:negotiable
3.Capacity:15-80T/H
4.Payment terms:LC,TT

Shandong Dongyue offers good quality crusher , stone crusher , jaw crusher , impact crusher ,

VSI crusher , crusher plant , crushing plant .The jaw crushers Shanghai Jianye Heavy Industry Co.Ltd offers are ideal for primary and secondary crushing.



1. Company Profile

Dongyue Machinery Group has been manufacuring block machine and crushers for 20 years ,

AAC production line for 10 years. now cooperating with Germany AAC concept Company to get the technical support.. now her total assets is 724 million RMB, with an area of 400 thousand square meters

  PE 400X600Z mobile jaw stone crushing machine for primary and secondary stone crushing

2. Application:

PE series jaw crusher, whose reduction ratio up to 4-6 and the finished products are even, can be widely used in breaking hard, medium-hard, soft ore, such as various kinds of ore, the solvent, slag, building stones, marble,etc. compression strength does not exceed 320Pa. This machine is suitable for mines,building materials,highway,railway,water conservancy and chemical industry,etc.



PE 400X600Z mobile jaw stone crushing machine for primary and secondary stone crushing

3. Futures:

1)  Firm structure, stable performance, large capacity, even producing granularity.

2)  With the increase of production, our jaw crusher can greatly reduce the operating costs.

3)  Convenient maintenance and economical running expense..

4)  The large feed opening and force-feeding action from the inward and downward eccentric movement of the swing jaw mean that our jaw crusher can increase the capacity.



PE 400X600Z mobile jaw stone crushing machine for primary and secondary stone crushing

4. Specification:

Model	Feed Opening (mm)	Max. Feed Size (mm)	Capacity (t/h)	Power Consumption (kw)	Discharge Opening (mm)	Overall Dimension (L x W x H) (mm)
PE-150×250	150×250	125	1-5	5.5	10-40	758×758×794
PE-250×400	250×400	210	5-20	15	20-60	1500×1400×900
PE-400×600	400×600	340	16-65	30	40-100	1700×1800×1600
PE-500×750	500×750	425	50-100	55	50-100	1890×1940×1870
PE-600×900	600×900	500	50-120	55	65-160	2395×1843×2230
PE-750 ×1060	750×1060	630	52-180	110	80-140	2775×2426×2840
PE-800×1060	800×1060	640	136-230	110	100-200	2500×2472×2810
PE-900×1200	900×1200	750	140-260	110	95-165	3400×3200×3500
PE-1000×1200	1000×1200	850	315-342	110	195-265	3335×3182×3430
PE-1200×1500	1200×1500	1020	400-800	160	150-300	4200×3732×4620
PE-250 ×750	250×750	210	15-30	22	15-70	1400×1300×1350
PE-250×1000	250×1000	210	16-52	30	25-60	1600×2000×1500
PE-250 ×1200	250×1200	210	20-60	37	25-60	1900×2200×1500
PE-300×1300	300×1300	260	30-70	55	30-90	1800×2300×1700

PE 400X600Z mobile jaw stone crushing machine for primary and secondary stone crushing

5. work principle

The main structure of the  stone jaw crusher are composed of stander, eccentric shaft, belt pulley, flywheel, movable jaw plate, wrist plate ,adjustable gap screw, offsetting spring, fixed jaw plate. The wrist plate also has the effect of guarding.
This   Jaw Crusher's crushing style is the type of driving extrusion. The motor drives the belt and belt pulley to make the moveable jaw move through the eccentric shaft. When movable jaw is rising ,the included angle between the wrist plate and movable jaw become bigger to drive the movable plate to be close to the movable plate. At the same time the material is squeezed and rubbed, rolled to achieve multiple crushing,

PE 400X600Z mobile jaw stone crushing machine for primary and secondary stone crushing

6. Certificates
