Best price high quality Under Vehicle Surveillance System with latest technology made in China

Introduction:

    under vehicle safety inspection system are mainly used to detect the bottom of various vehicles, it Can quickly and accurately identify the hiding contraband in the vehicle and illegal immigration, smuggling people, faster and more accurate than the traditional under car inspection mirror, Greatly improving the speed and accuracy of vehicle safety inspection, to reduce Labor cost.

Application Scope:

1,Airports, prisons, customs and other government departments, And large public car parking entrances and out of the vehicle used to check whether there is contraband.

2,large-scale activity, the entrance and exit of Exhibition for vehicle safety inspection.

3,Security checks for security, explosion, military vehicles at the bottom.

Performance feature:

l  Adopting digital linear array scanning cameras, have very high picture resolution and clarity.

l  Under Car complete imaging, no any missing, and the image is clear, complete, no distortion, can be clearly observed that the object is not less than 2mm in diameter.

l  IP68 High protection grade, Anti seismic and pressure, can be used on any climate environment.

l  Field preparation of inspection processes, can meet needs of a variety of field.

l  Multiple scene image monitor, video recording.

l  Multi-language user interface design.

l  Support image identification, or RFID technology for vehicle identification.

l  Strong expansion capability, Can easily implement all kinds of linkage control system.(For example: Anti collision system, barrier etc)

l  Support multiple devices networked control functions.

Technical Parameters:

Vertical resolution of the image: 2048 pixel.

Perspective check width: Not less than 4.0 meters

Car speed: 1~65km/h;

Effective angular field: No less than 170°;

Auxiliary lighting: 100W

load capacity: More than 30T;

Waterproofing grade: IP68 Meet the all-weather work;

Scanning device weight: 28KG

Scanning device volume:410mm×370mm×93mm

Communication interface: RS232/RS422

Storage temperature:-40°~+75°

Working Temperature:-10°~+60°

Working voltage: 110~240V AC,50~60HZ

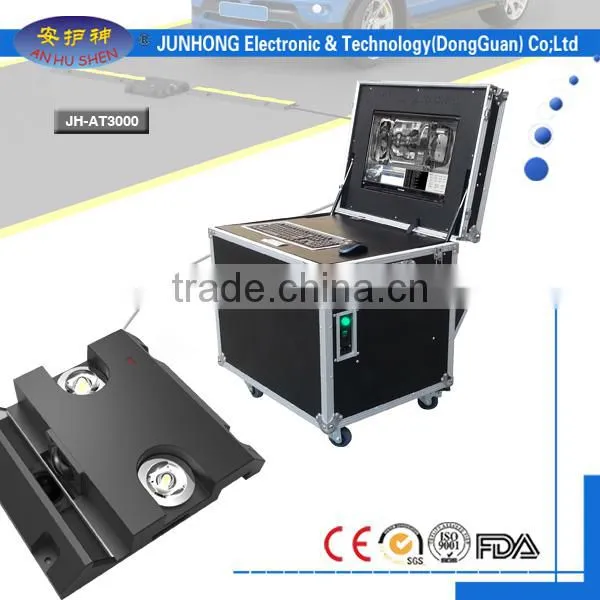

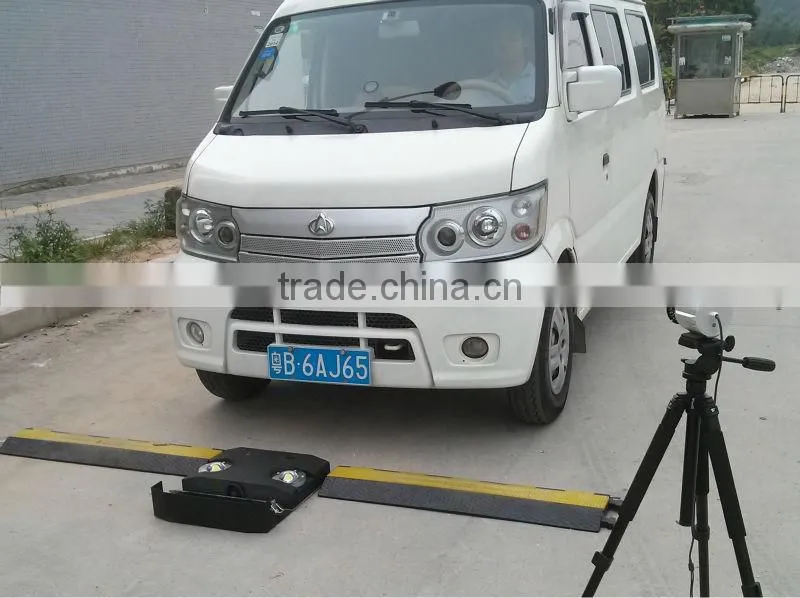

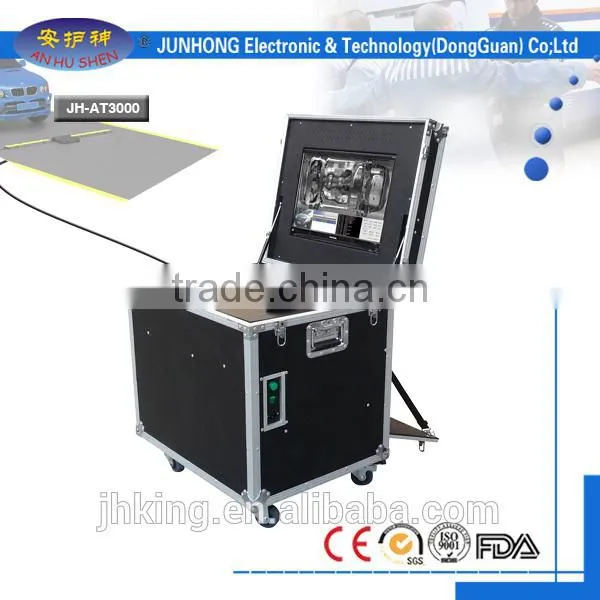

Product Photo

Software interface pictures

Under Vehicle Scanned Images
